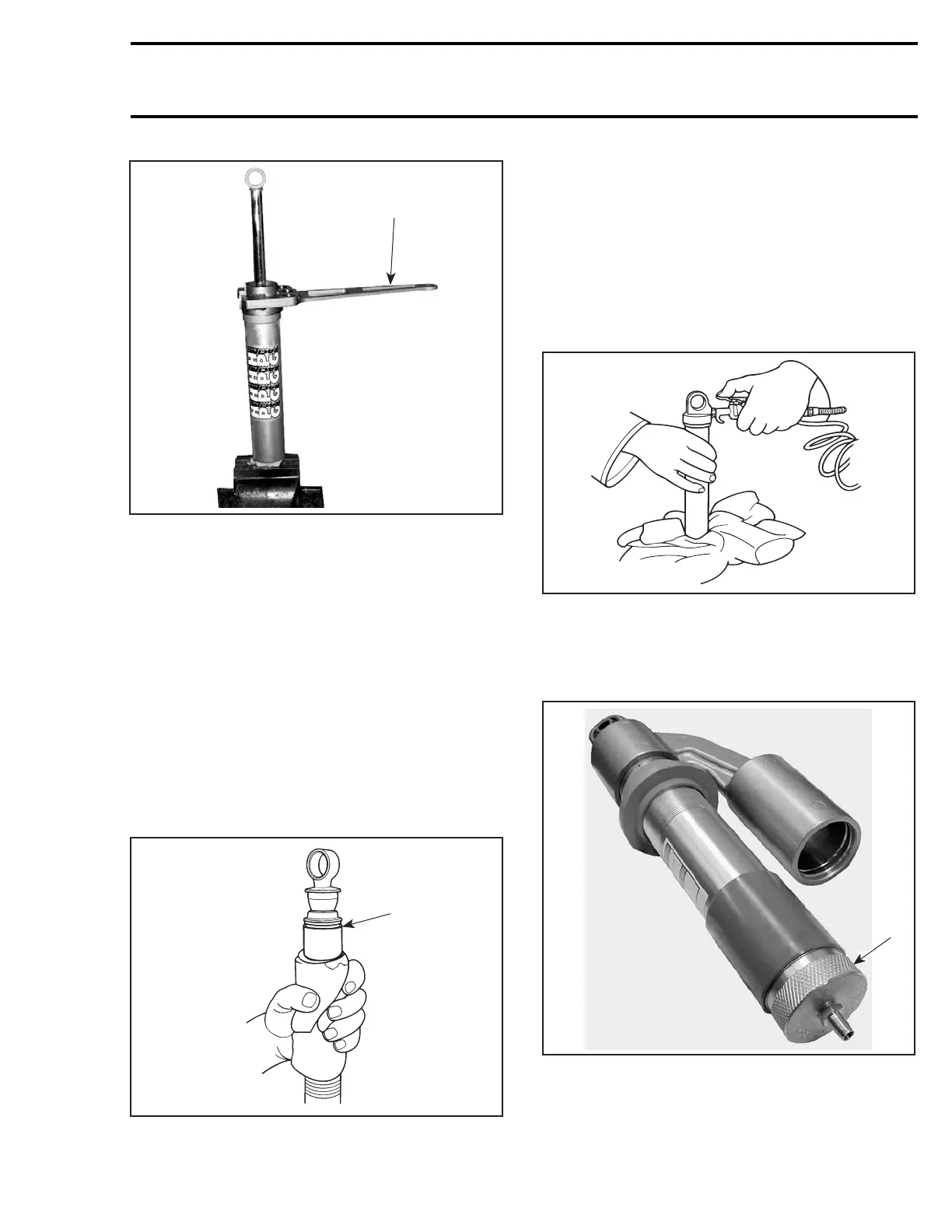

Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 02 (SC-10 III SUSPENSION)
529 035 727
A32F1NA
TYPICAL
Snap Ring Cap Types of Shock
Using a flat tool, pop-out the cap.
Compress the carrier to access and remove the
snap ring.
All Types of Shocks
With the seal carrier removed, slowly lift and
remove damper rod assembly from the damper
body.
NOTE: Remove damper rod assembly slowly to
reduce oil spillage and prevent piston seal damage
by damper body threads. Wrap the damper body
with a shop cloth to capture possible overflow oil
while removing the damper piston.
1
A27F0AA
1. Oil flows
Discard old oil into storage container. Never reuse
damper oil during shock rebuild.
All Types of Shocks except External
Reservoir T/A Shocks
Remove valve core. Using compressed air
pressure, carefully remove floating piston from
damper body. Hold shop cloth over damper body
opening to catch released floating piston. Allow
room for floating piston to leave damper body.
A27F06A
TYPICAL
External Reservoir T/A Shocks
Install floating piston remover tool (P/N 529 035
907) on shock absorber, as shown below.
1
A32F3YA
1. Floating piston remover tool (P/N 529 035 907)
mmr2004-Rev 303
