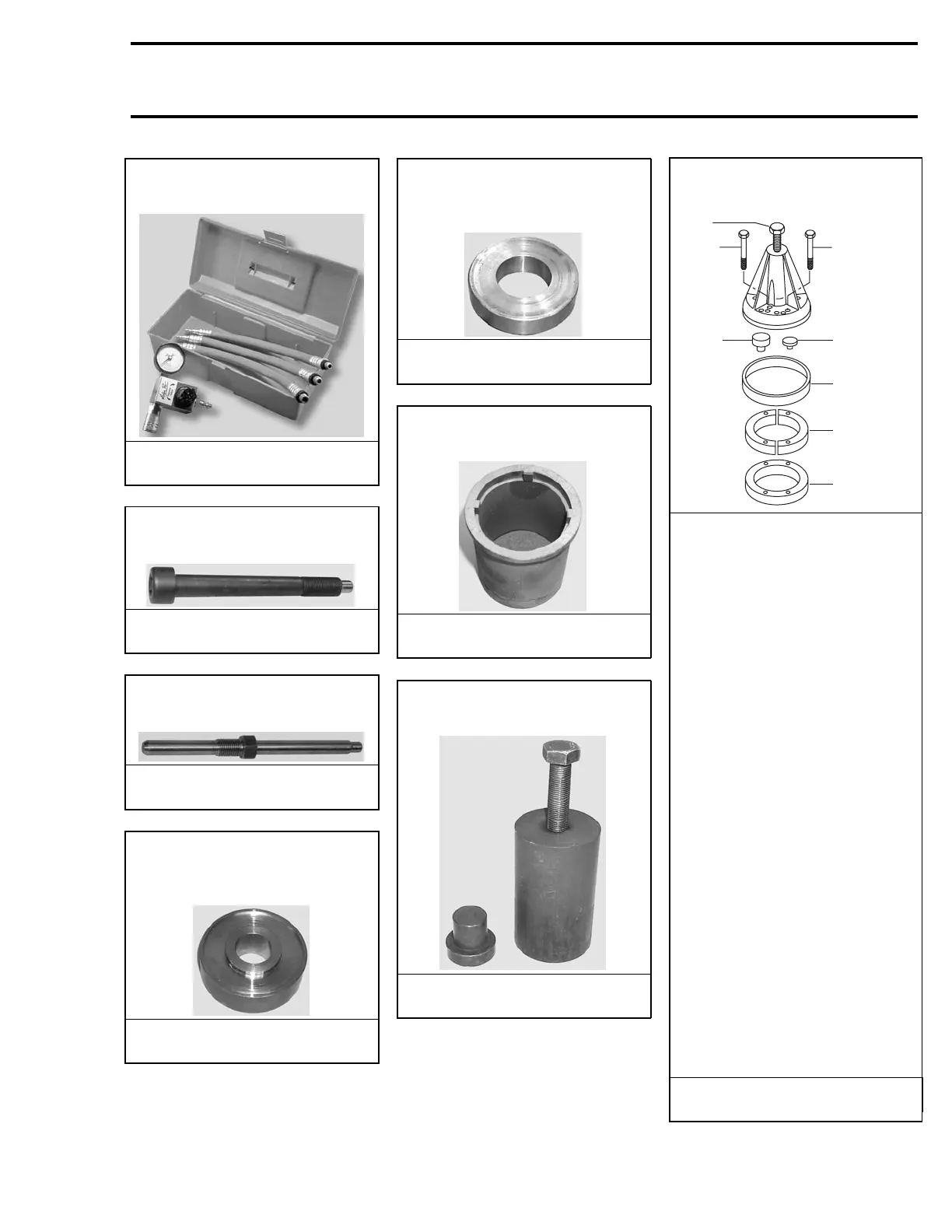

Ski-Doo REV Series Shop Manual

Section 01 TOOLS AND SERVICE PRODUCTS
Subsection 01 (SERVICE TOOLS)
N–>
Leak down tester
(P/N 529 035 661)
APPLICATION
1004 and 1503 engines.
Crankshaft locking tool
(P/N 529 035 900)
APPLICATION
1004 engines.
N–>
Crankshaft locking tool
(P/N 529 035 821)
APPLICATION
1503 engines.
N–>
Engine support bearing in-
staller
(P/N 529 035 952)
APPLICATION
1503 engines.
N–>
Engine support bearing sup-
port
(P/N 529 035 953)
APPLICATION
1503 engines.
N–>
4-Tooth socket
(P/N 529 035 960)
APPLICATION
1503 engines.
N–>
Torque flange remover
(P/N 529 035 958)
APPLICATION
1503 engines.
Crankshaft bearing puller
(P/N 420 877 635)
2,3
1
2,3
5
4
6,9,10
7,8,11,12
13
1) Screw M16 x 1.5 x 150
(P/N 420 940 755)
2) Screw M8 x 40 (4) (P/N 420
840 681)
3) Screw M8 x 70 (4) (P/N 420
841 201)
4) Crankshaft protector PTO
(P/N 420 876 552)
5) Crankshaft protector MAG
(P/N 420 876 557)
6) Puller ring (P/N 420 977 490)
(use with half rings (P/N 420
977 475) or (P/N 420 276
025))
7) Half ring (2) (P/N 420 977 475)
(for 72 mm O.D. bearings)
8) Half ring (2) (P/N 420 276 025)
(for 62 mm O.D. bearings)
9) Puller ring (P/N 420 977 480)
10)Puller ring (P/N 420 977 494)
(for hal rings (P/N 420 977
479))
11)Half ring (2) (P/N 420 977 479)
(for 80 mm O.D. bearings)
12)Half ring (2) (P/N 420 876 330)
(for 52 mm O.D. bearings)
13)Distance ring (P/N 529 035
964) (for MAG side bearing)
APPLICATION
All engines.
mmr2004-Rev 5
