Ski-Doo REV Series Shop Manual

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

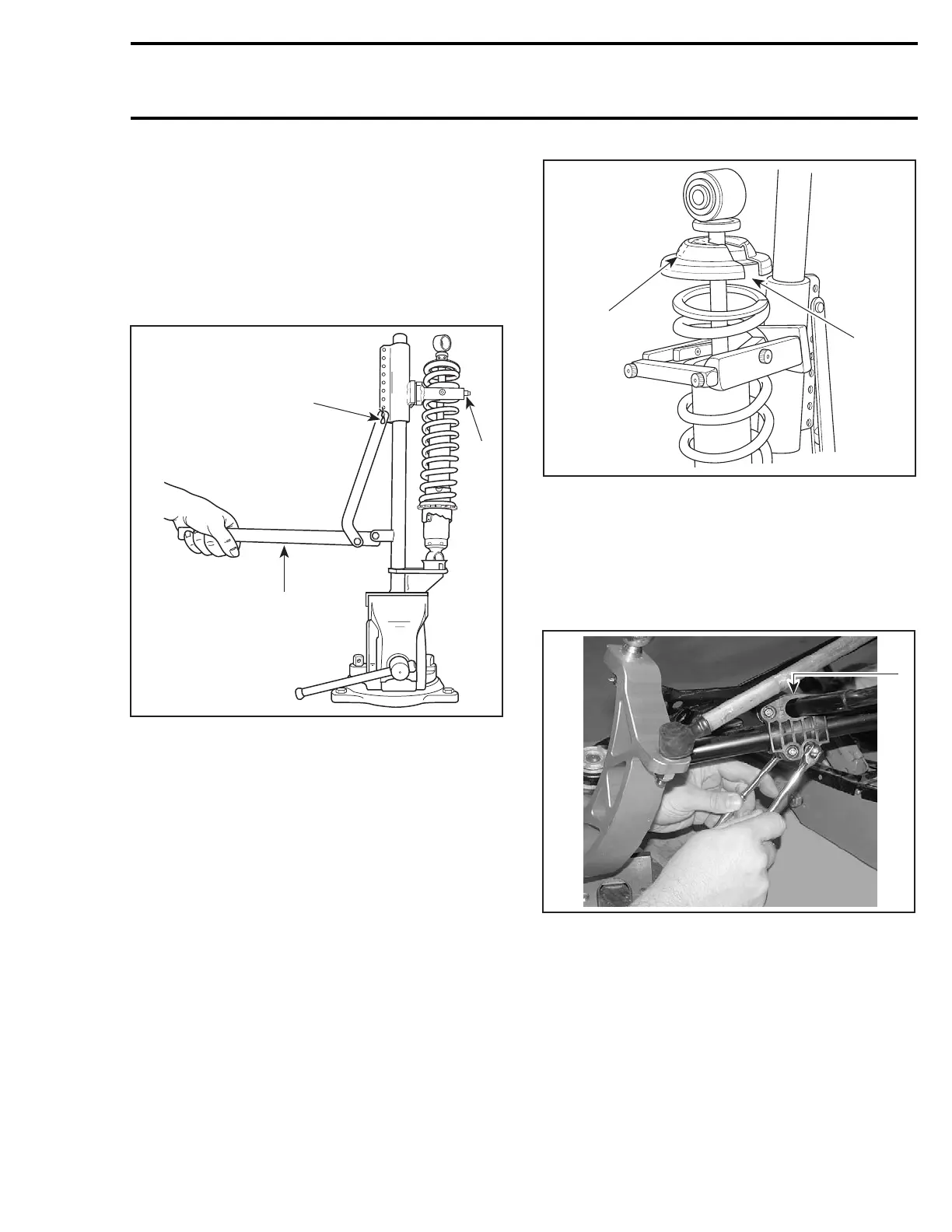

For shock absorber spring disassembly use shock
absorber spring remover (P/N 529 035 504) in a
vise. Mount shock absorber in it and turn shock
absorber so that spring coils match spring com-
pressor.
Close and lock the bar. Adjust the handle at hori-
zontal position by changing the position of the cle-
vis pin.
1
A01B4LA
2
3
TYPICAL
1. Clevis pin
2. Bar
3. Handle horizontal
Push down on the handle until it locks. Remove
spring stopper then release handle.
Some Models
At installation, cap opening no. 30 must be 180°
from spring stopper no. 29 opening.
A03F12A
1
2
1. Cap opening
2. Spring stopper opening
Lower Arm
All Models
Remove shock absorber.
Remove sliding blocks no. 6 of stabilizer bar no. 7.
1
A33F1VA
1. Sliding blocks
Remove cotter pin no. 8 and unscrew ball joint nut
no. 9.
Raise lower arm no. 10 so that ball joint no. 11
becomes parallel with ski leg no. 12.
Install ball joint remover (P/N 529 035 827) and
detach ball joint from ski leg.
mmr2004-Rev 335
