Ski-Doo REV Series Shop Manual

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
529 035 827
A33F1XA
1
A33F1YA
TYPICAL

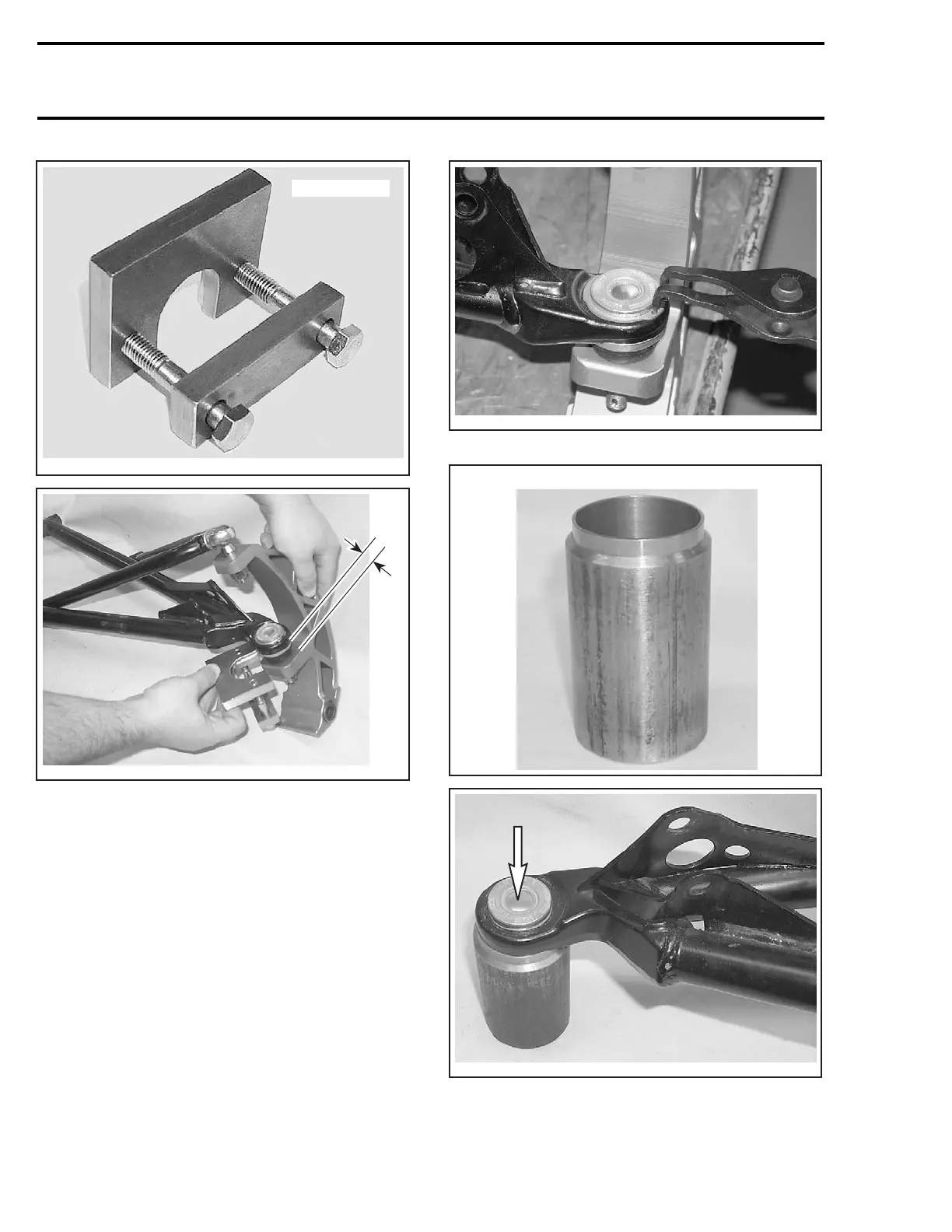

1. Ball joint parallel with ski leg
Remove lower arm no. 14 from frame. For front
screw no. 17 removal, hold nut no. 18 from engine
compartment.
To remove ball joint, proceed as follows:
– Remove snap ring no. 13.
– Install ball joint remover support (P/N 529 035
873) under joint.
– Press joint out.
A33F1WA
TYPICAL
529 035 873
A33F1ZA
A33F20A
TYPICAL
336
mmr2004-Rev
