Ski-Doo REV Series Shop Manual

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
MX Z X/Renegade X/Trail — Europe
A33F3NA
Summit
A33F3MA

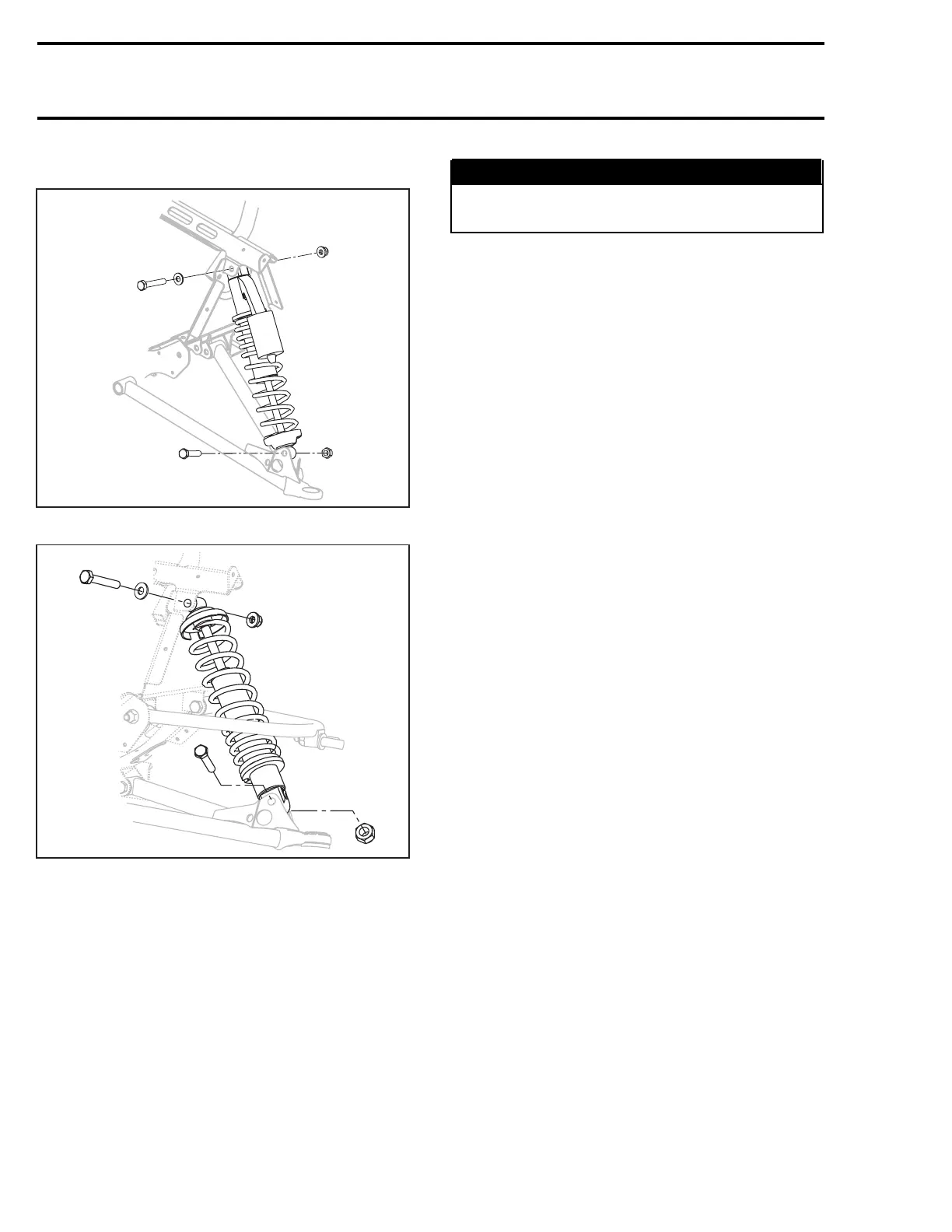

Readjust spring preload.
Ski
Apply suspension synthetic grease (P/N 293 550
033) between bushing no. 28 and spacer no. 27
and also on inner tube of ski leg.
Summit Only
Install bushing no. 29 and spacer no. 30 inward
on each ski leg for the wide ski stance. Install
outward for narrow ski stance.

WARNING
Install skis with proper side facing inward.
Refer to warning on ski.
Adjustment
All Models
Proceed with ski alignment. Refer to STEERING
SYSTEM.
