Ski-Doo REV Series Shop Manual

Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
– Install screws and nuts.
– Ensure blocks slide easily when compressing
and releasing suspension.
1
A33F2EA

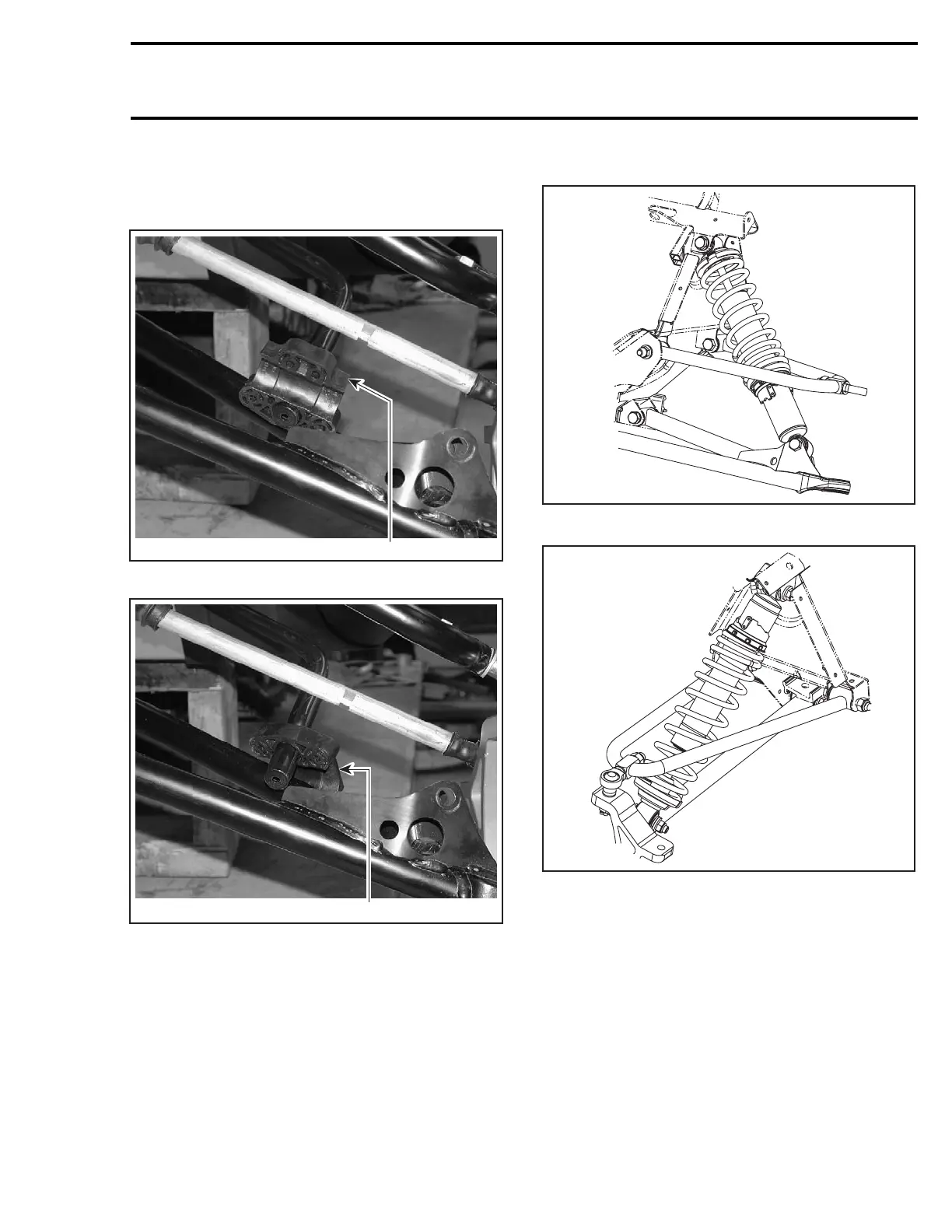

1. Temporarily rotate block by 180° for its insertion
1
A33F2FA
1. Push block on bar end beyong lower arm then rotate
back to its normal position
Shock Absorber
Ensure to reinstall shock absorber in the proper
position according to model.
GSX and MX Z Trail
A33F3RA
MX Z Adrenaline and Renegade
A33F3SA
mmr2004-Rev 341

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
