Section 09 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)

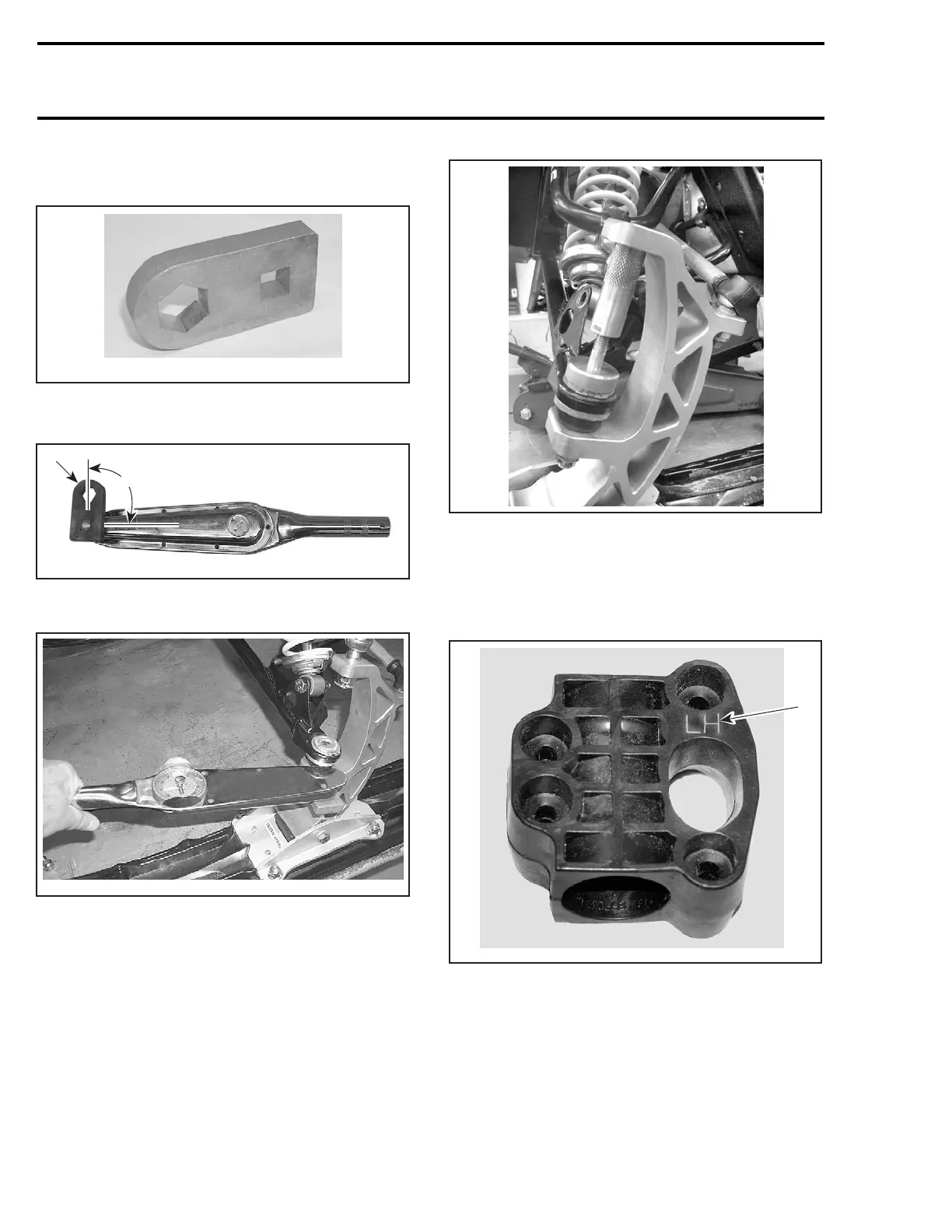

To properly torque ball joint nut, use the A-arm nut
wrench (P/N 529 035 876).
529 035 876
A33F2AA
Ensure to install the tool perpendicularly (90°)to
torque wrench.
1
A33F22A
A
1. Tool perpendicular (90°) to torque wrench
A. 90°
A33F2KA
Use ball joint lock tool (P/N 529 035 945) to restrain
ball joint during nut tightening.
NOTE: The upper arm ball joint has to be removed
in order to use this tool. Also remove the small
screw from top of ball joint to allow proper seating
of tool.
A32F3XA
TYPICAL
Stabilizer Bar
Notice that LH and RH sliding blocks are different.
Look for their molded identification with LH or RH
letters.
1
A33F2DA
1. Molded identification for proper side installation
To install sliding blocks:
– Temporarily rotate the rear block by 180°.
– Insert on stabilizer bar end and push beyond the
lower arm.
– Rotate block back by 180° to its normal position.
– Install the other block half.
340 mmr2004-Rev
