Ski-Doo REV Series Shop Manual

Section 12 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
A01E31A

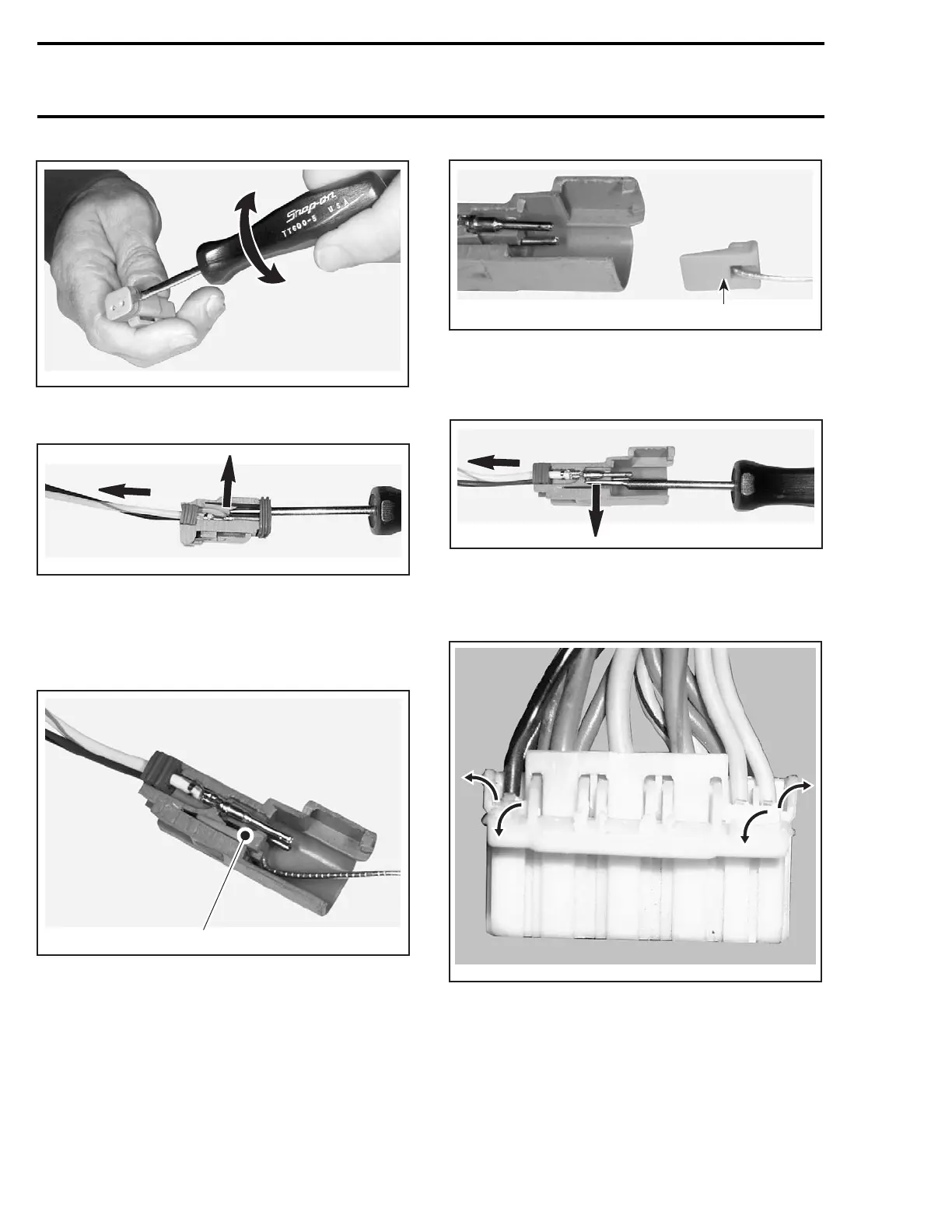

– Pry tab to free connector then pull wire out of
housing.
A01E32A
FEMALE CONNECTOR HOUSING — CUT -AWAY
Male Connector Housing
To remove:
– Using a small hook, pull out the lock.
A01E33A
1
1. Lock
A01E34A
1
1. Lock
– Pry tab to free connector then pull wire out of
housing.
A01E35A
MALE CONNECTOR HOUSING — C UT-AWAY
Multilock Connector Housing
Female Connector Housing
A32Z01A
To remove:
– Insert tool AMP- 755430-2 under lock and twist
to lift it.
414 mmr2004-Rev
