Ski-Doo REV Series Shop Manual

Section 12 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

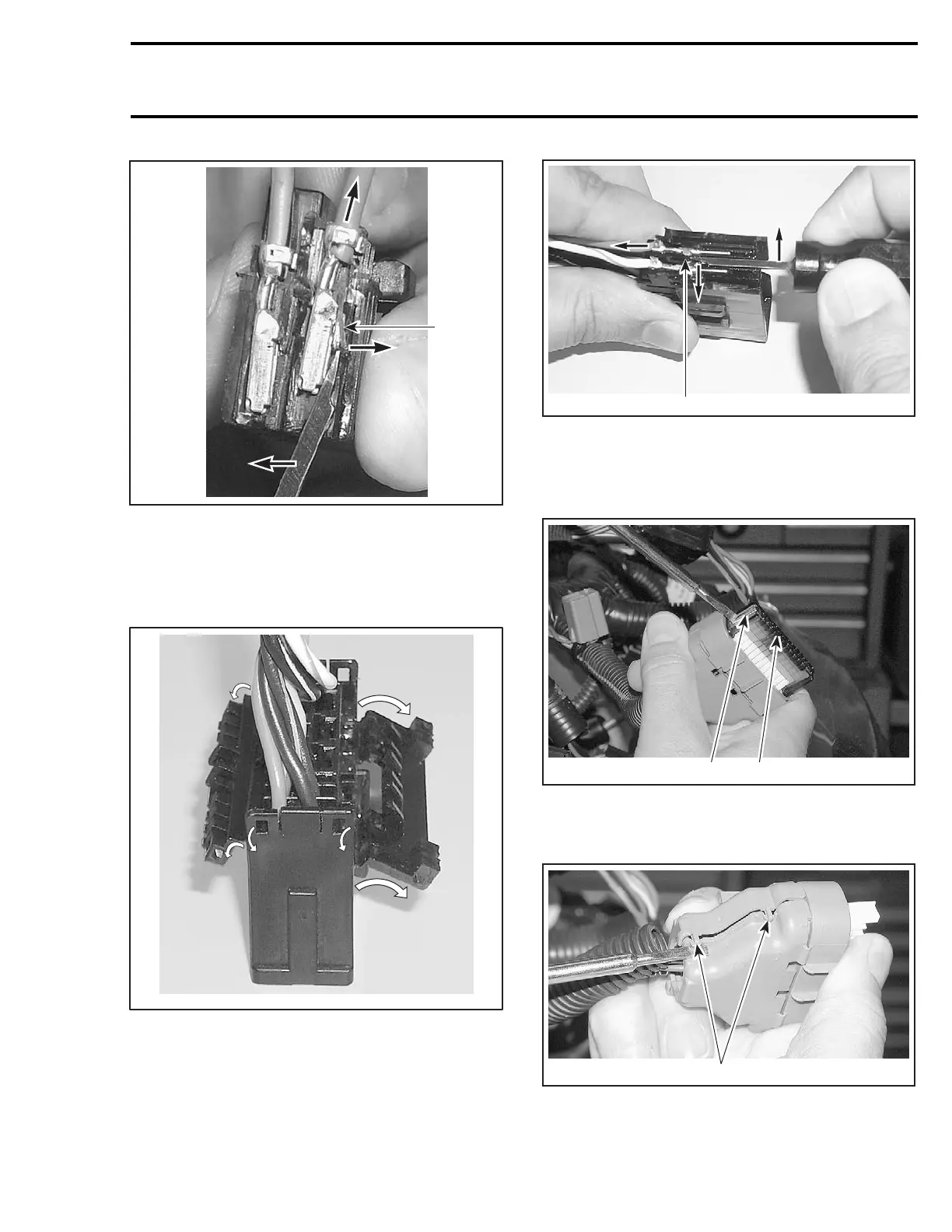

1
A32Z02A
FEMALE CONNECTOR HOUSING — CUT -AWAY
1. Lock
Receptacle connectors can be removed from fe-
male housing with sharp head pin.
Male Connector Housing
A32Z04A
To remove:
– Insert tool AMP-755430-2 under lock and twist
to lift it.
1
A32Z05A
MALE CONNECTOR HOUSING — C UT-AWAY
1. Lock
24-Circuit Connector Housing
Push on both tabs to remove retainer.
1
A33Z01A
2
1. Retainer
2. Tab(oneoneachside)
Open housing by lifting 4 tabs.
1
A33Z02A
1. Tabs (2 on each side)
mmr2004-Rev 415
