Ski-Doo REV Series Shop Manual

Section 12 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

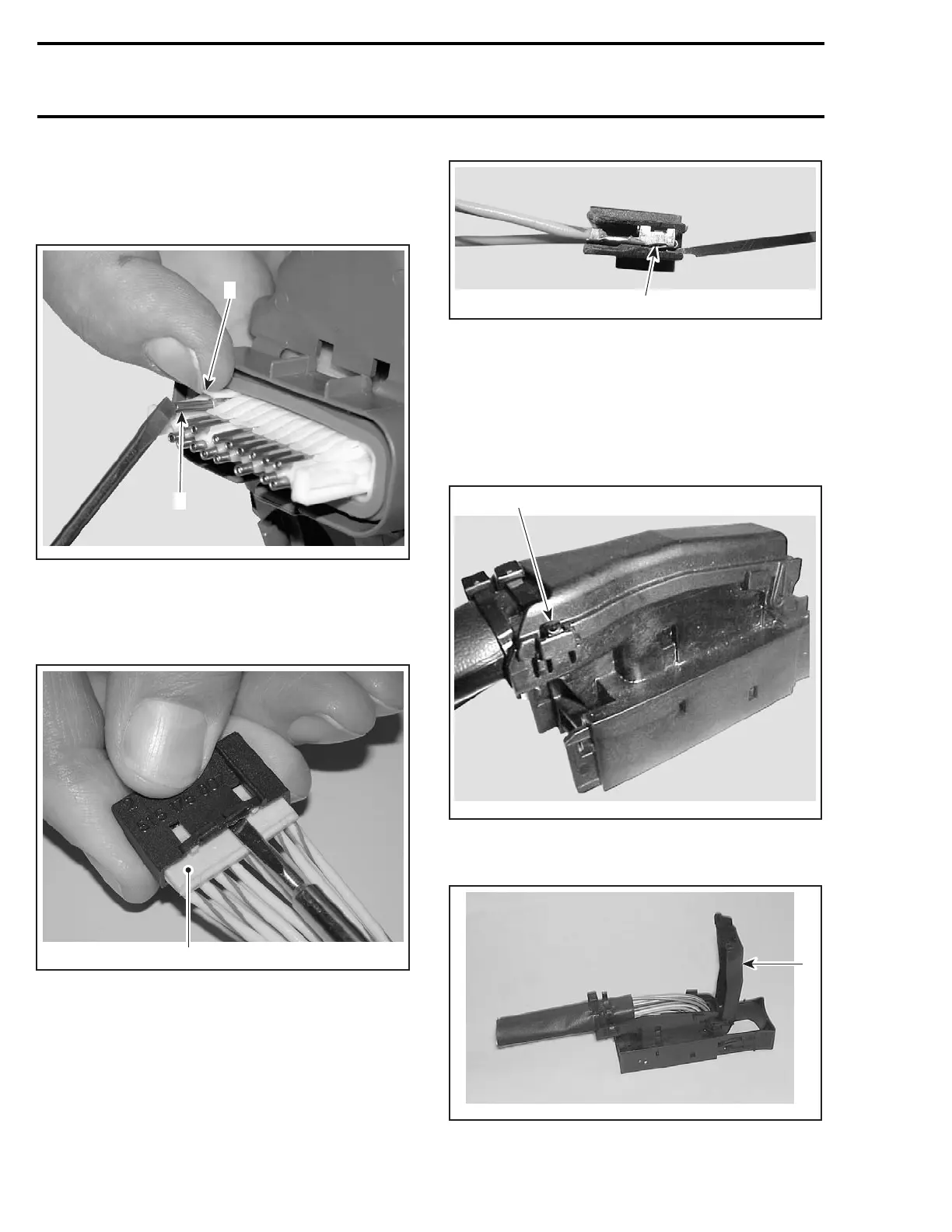

Lift the top plastic lock of the female terminal to
be removed and hold in position. Lift the female
terminal to unlock from the housing and push out
of housing.
A32E3XA
2
1
1. Lift and hold plastic lock
2. Lift to unlock and push out
8-Circuit Connector Housing
Pry housing to release lock.
1
A33Z04A
1. Lock
Insert tool AMP-755430-2 under tab and pry it to
free connector. Pull on the female terminal wire
to remove female terminal from housing.
1
A33Z05A
8-CIRCUIT CONNECTOR HOUSING — CUT-AWAY
1. Tab
Connector housing A and B on ECM
Terminal Removal
Unlock the connector housing cover by pushing in
thetabsontopofthehousingwithaflatscrew-
driver to be able to flip the top cover up.
1
F18Z0RA
1. Push in tab
Lift the cover by pushing it forward.
1
F18Z06A
1. Cover
416 mmr2004-Rev

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
