Ski-Doo REV Series Shop Manual

Section 12 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

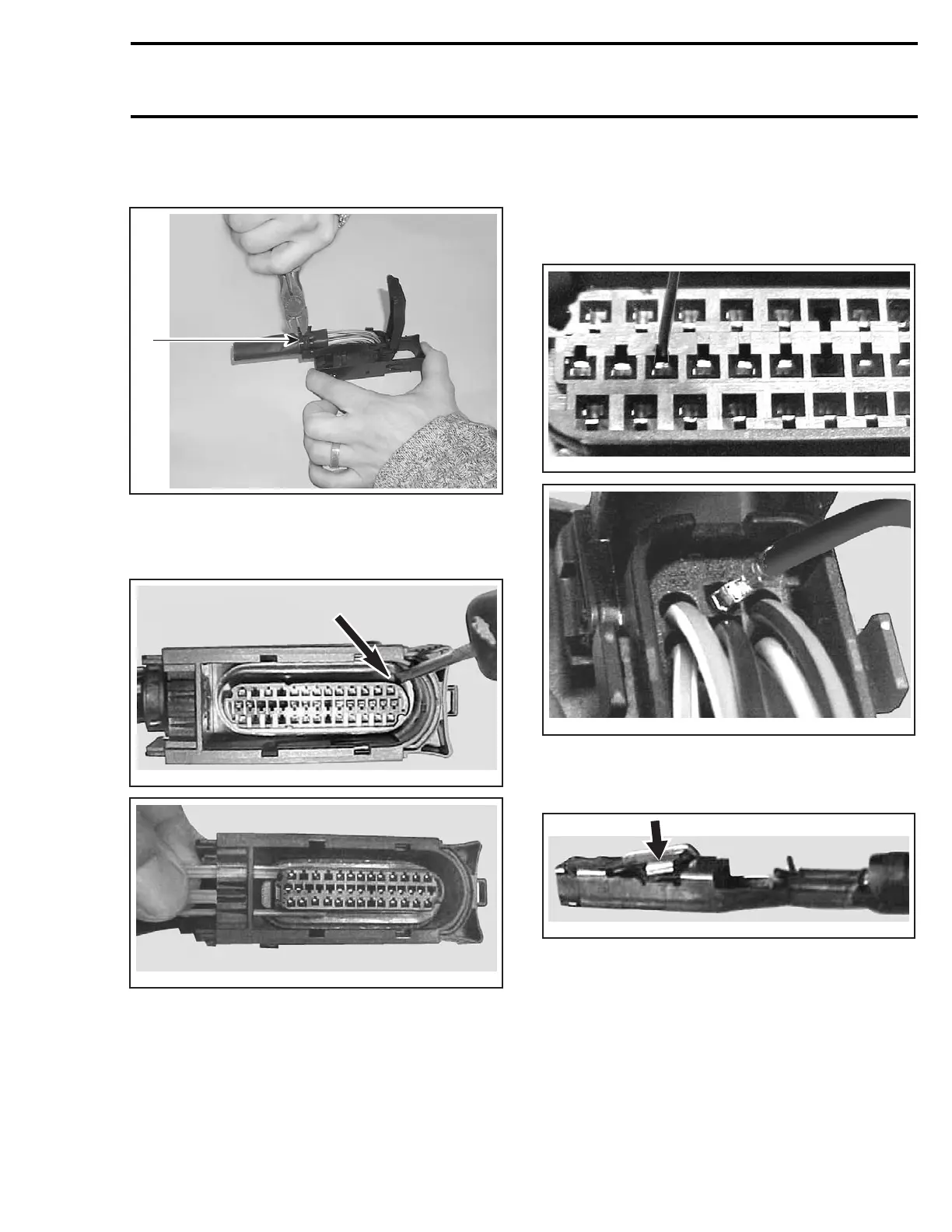

Cut both locking ties that secure the harness to
the housing.
1
F18Z07A
1. Locking ties
Turn the housing over and remove the lock by
pushing and then pulling toward the wire harness.
F18Z0SA
F18Z0TA
Use a 0.76 mm (.030 in) oxyacetylene torch t
ip
cleaner or a no. 68 drill bit in
serteddownintothe
housing to release the lock
ingtabontheconnec-
tor.
CAUTION: Using a probe larger than 0.76 mm
(.030in)maydamagetheterminal.
Insert the probe into the housing as shown, and
locate the appropriate wire in the back of the
housing. You may have to slightly cam the probe
against the locking tab to release it, then remove
the terminal from the housing.
F18Z0UA
F18Z0VA
The locking tab on the connector may have to be
bent out a little so it will lock in the housing when
it’s re-inserted.
F18Z0WA
Ifthewireisingoodconditionbuttheterminalis
rusted or corroded, remove defective terminal and
crimp a new one. If wire and terminal are defec-
tive, acquire a new genuine wire and new terminal
and crimp them together as explained below.
IMPORTANT: Use genuine wires only. Otherwise
wires will not fit properly.
