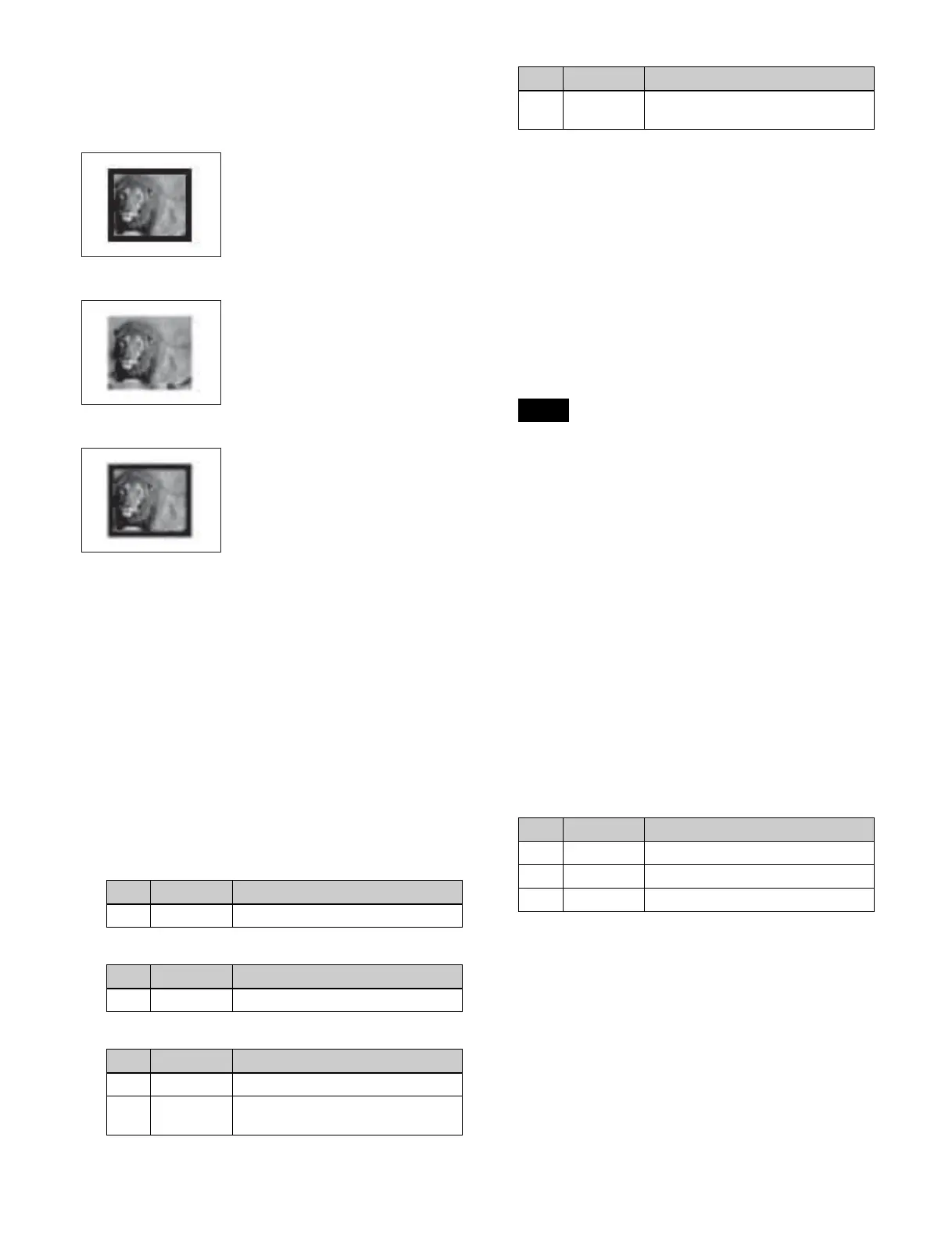

Modifying a wipe pattern edge (Edge)
You can apply a border to the pattern or soften the edges.
When a border or soft border is selected, the signal filling
the edge is called an edge fill. For the edge fill, you can use
a signal (matte) generated by a dedicated color matte
generator, or the signal selected on the utility 2 bus. A
matte has two colors, color 1 and color 2, which can be
combined (color mix).
1 Open the M/E-1 >Wipe >Edge/Direction menu
(1154).
2 In the <Edge> group, select the edge type.
3 Depending on the selection in step 2, set the following
parameters.
When [Border] is selected
When [Soft] is selected
When [Soft Border] is selected
4 When Border or Soft Border is selected, select the
edge fill signal in the <Edge Fill> group.
Utility 2 Bus: Signal selected on the utility 2 bus
Matte: Signal from a dedicated color matte generator
5 Depending on the selection in step 4, carry out the
following operation.
When [Utility 2 Bus] is selected: On the cross-point
control block, press delegation button [UTL2] on
the cross-point pad and select a signal using the
cross-point buttons in the 1st row/2nd row.
• On the cross-point control block in key/AUX bus
delegation mode, press the [UTIL2] button in the 1st
row and select a signal using the cross-point buttons
in the 2nd row.
• You can assign the utility 2 bus using the [UTIL]
button on the cross-point pad of the cross-point
control block (see page 73).
• You can assign a utility 2 bus delegation button to
the 1st row or 2nd row of the AUX bus control block
(AUX bus operation mode) in the Setup menu (see
page 382).
When [Matte] is selected: Press [Matte Adjust] to
open the Matte Adjust menu (1154.1), and select
[Flat Color] (single color) or [Mix Color] (2-color
mix) in the <Edge Matte> group.
If [Mix Color] is selected, set the color mixing (see
page 135).
If [Flat Color] is selected, set color 1 using the
following parameters.
Carrying out a color mix for the edge fill
matte
If [Matte] is selected for the border or soft border edge fill,
you can combine color 1 and color 2.
To combine colors, you can use not only a normal wipe
generator pattern, but also a dedicated color mix pattern.
1 In the <Edge Fill> group of the M/E-1 >Wipe >Edge/
Direction menu (1154), select [Matte] and press
[Matte Adjust].
Border
Applies a border to the pattern.
Soft
Softens the pattern edges.
Soft Border
Softens the border applied to the
pattern.
No. Parameter Adjustment
1 Width Border width
No. Parameter Adjustment
1 Soft Edge softness
No. Parameter Adjustment
1 Width Border width
2 Inner Soft Degree of softness inside the
border
3 Outer Soft Degree of softness outside the
border
Notes
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
