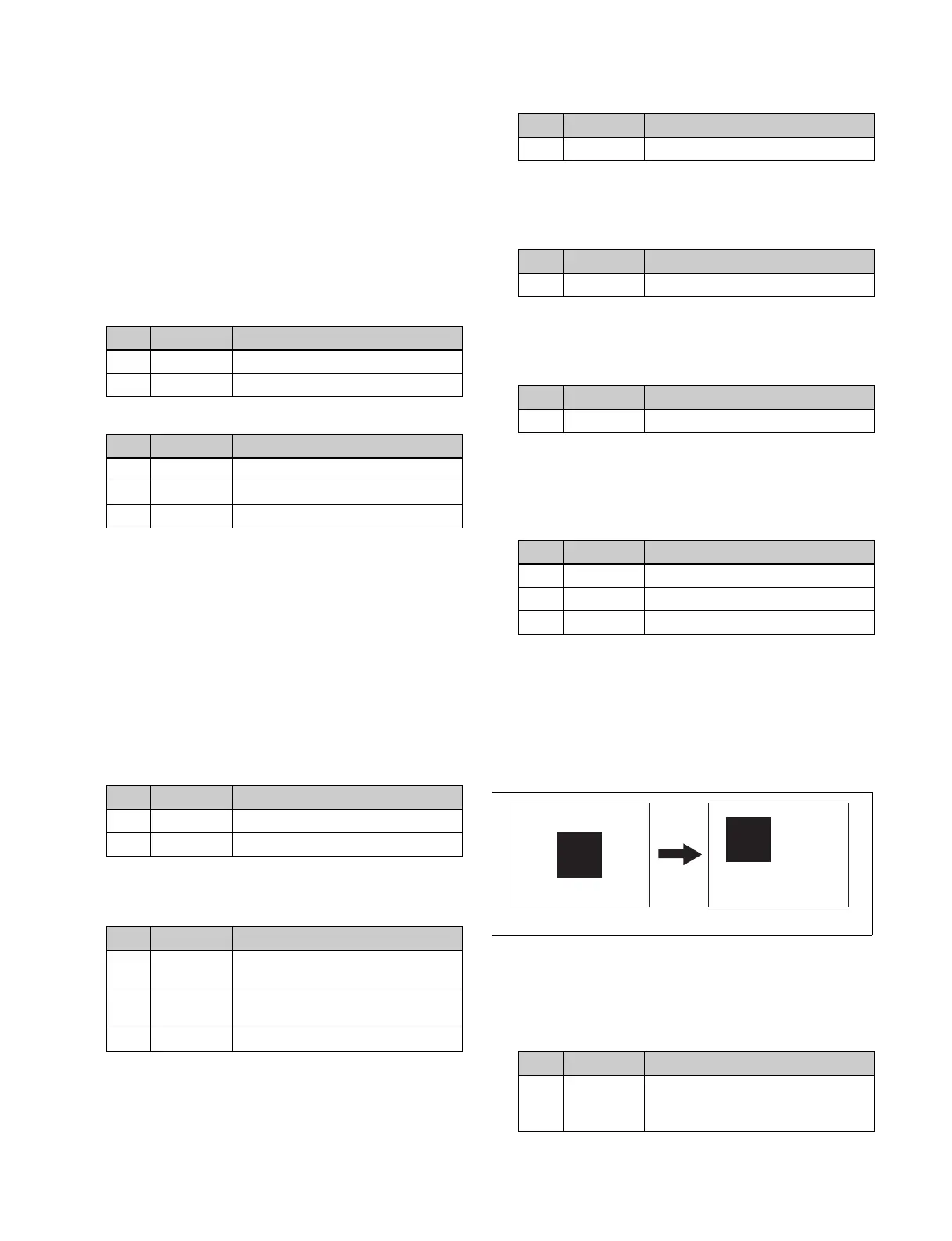

Sony XVS Series

136
The Matte Adjust menu (1154.1) appears.
2 In the <Edge Matte> group, select [Mix Color].
3 In the <Mix Pattern> group, select one of the
following.
Wipe: Wipe pattern selected for a transition
Pattern: Use a dedicated pattern.
4 Depending on the selection in step 3, set the following
parameters.
When [Wipe] is selected
When [Pattern] is selected
a) The patterns are the same as standard wipe patterns 1 to 24.
You can also make a pattern selection by pressing
[Mix Pattern Select] in the Matte Adjust menu to
display the Mix Ptn Select menu (1154.2).
Press the desired pattern (1 to 24) to select it, and set
the [Size] and [Soft] parameters.
5 If a pattern is selected in step 4, set the pattern
modifiers as required.
When selecting [Position] and setting the pattern
position
a) See page 136.
When selecting [Multi] and replicating the pattern
a) See page 138.
When selecting [Aspect] and adjusting the pattern
aspect ratio
a) See page 137.
When selecting [Angle] in the <Rotation> group
and slanting the pattern
a) See page 137.
When selecting [Speed] in the <Rotation> group
and rotating the pattern at a constant speed
a) See page 137.
6 Select [Color 1] and [Color 2], respectively, and set the
colors.
7 To interchange color 1 and color 2, press the [Color
Invert] button, turning it on.
Setting the wipe pattern position
(Positioner)
Move the pattern to a desired position.
1 Open the M/E-1 >Wipe >Main Modify menu (1155).
2 In the <Position> group, press [Position] and set the
pattern position.
No. Parameter Adjustment
1 Size Pattern size
2 Soft Edge softness
No. Parameter Adjustment
1 Size Pattern size
2 Soft Edge softness
3 Pattern Pattern number
a)
No. Parameter Adjustment
1 Position H Horizontal position
a)
2 Position V Vertical position
a)
No. Parameter Adjustment
1 H Multi Number of repetitions of pattern
horizontally
2 V Multi Number of repetitions of pattern
vertically
3 Invert Type Pattern layout
a)
No. Parameter Adjustment
1 Aspect Aspect ratio
a)
No. Parameter Adjustment
1 Angle Rotation angle of pattern
a)
No. Parameter Adjustment
1 Speed Rotation speed of pattern
a)
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 Position H Horizontal position
• Negative values move to the left.
• Positive values move to the right.
Positioner disabled Positioner enabled
