Phase Error Magnitude: See 1PPS Phase Error
Frequency Error: See 10_MHz_Frequency_Error
Scaled DAC Value: See DAC Step
Oscillator Temperature, which has an effect on oscillator accuracy, and therefore can
be used to interpret oscillator performance. See also "Temperature Management" on
page288, "The Oscillator Status Panel" on page219.

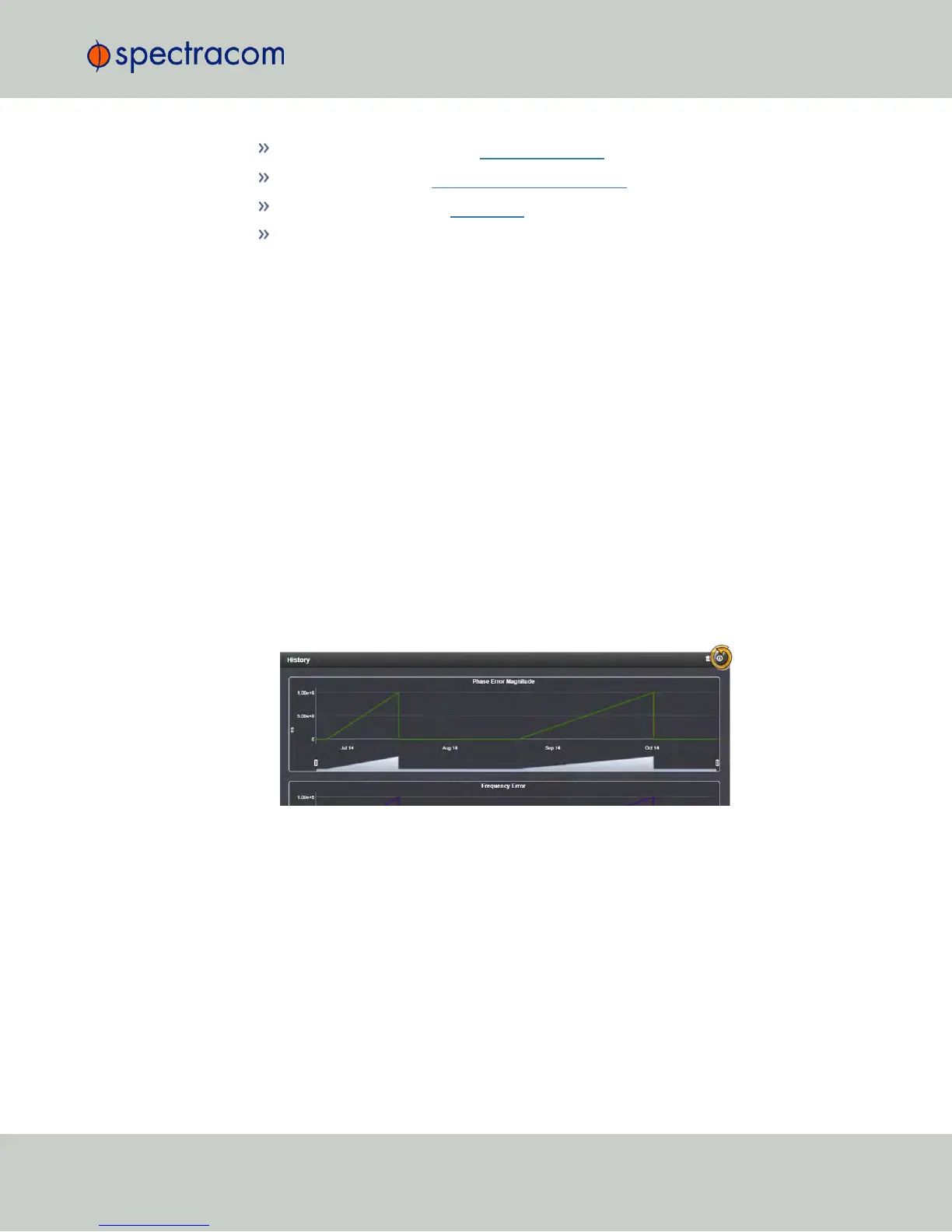

You can zoom in on any of the graphs by grabbing the handles at either end and pulling them
inwards. The graph will focus in on the time interval you choose in real time.
Clicking on the Delete icon in the top-right hand corner will erase all current oscillator log data.
Clicking on the Download arrow icon will download the latest oscillator log data as a .csv
file.
3.5.4 Oscillator Logs
To export, or delete the oscillator logs:
1.
Navigate to MANAGEMENT > OTHER: Disciplining.
2.
To download the log file: In the History panel, click the downwards pointing ARROW
icon. in the top-right corner. The log file will be downloaded onto your local computer.
Its name is oscillatorStatusLog.csv. Depending on the operating system you
can open the file, or save it locally.
To delete the log file, click the TRASHCAN icon, and confirm.
3.5 Managing the Oscillator
CHAPTER 3 • NetClock User Reference Guide Rev. 16
221
