5.2.3.1 Web UI Navigation: Option Modules

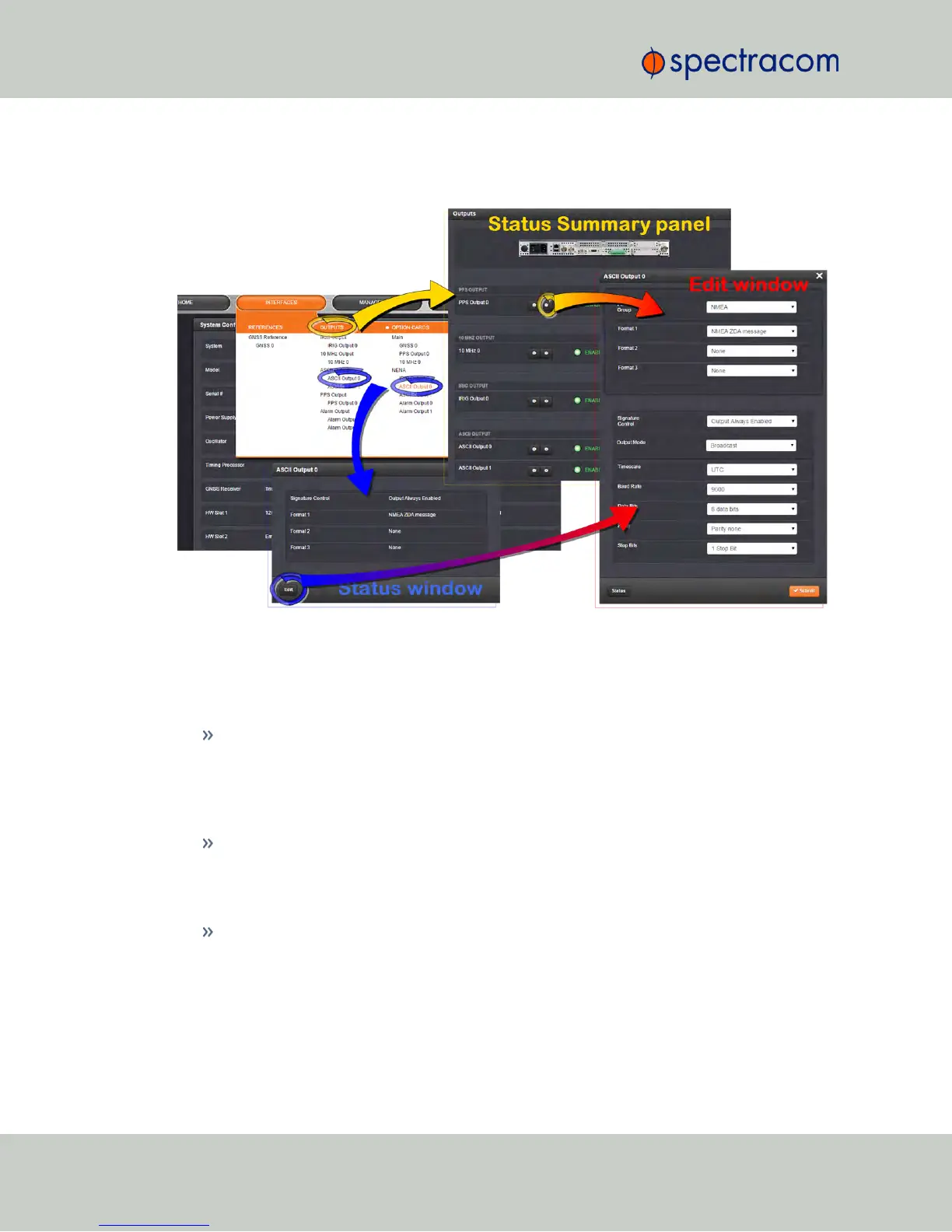

Figure 5-2: Option module navigation
To view or edit option module settings in the NetClock Web UI (see also image above):
Status Summary panel
Under INTERFACES > OPTIONCARDS, clicking the superordinate list entry will open
the StatusSummary panel, which provides a status overview, as well as access to the
Status window and the Editwindow.
Status window
Under INTERFACES > OPTIONCARDS, clicking subordinate (indented) entries will
open the Status window, providing detailed option module status information.
Edit window
To edit option module settings, either click the Edit button in the lower-left corner of the
Status window, or click the GEAR button in the Status Summary panel: The Edit window will
open.
