1.

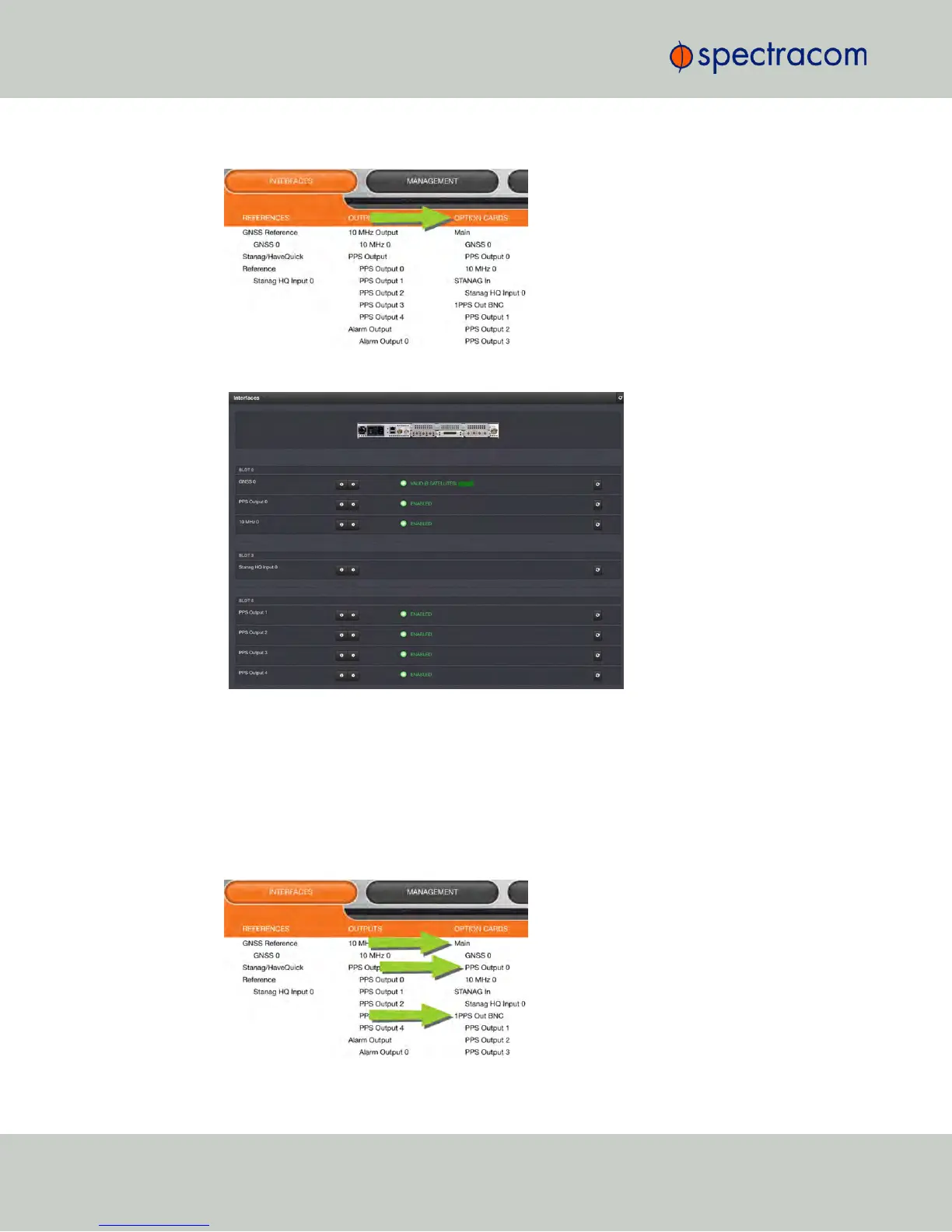

Navigate to INTERFACES, and click on OPTION CARDS:
2.
The resulting screen will display all installed option cards, and their current status.
You can drill down on any of the listed input references and outputs by clicking the
INFO button (u status information), or the GEAR button (u edit settings).
Monitoring a SPECIFIC Option
To monitor the status of a selected option:
1.
Navigate to INTERFACES > OPTION CARDS, and click on a specific option card, or
one of its indented input references, or outputs drop-down menu.
282
CHAPTER 4 • NetClock User Reference Guide Rev. 16
4.5 Quality Management
