A DC power connector to attach DC power to NetClock is included in the ancillary kit provided
with the equipment. A cable of 6feet or less, using 16AWG wire, with adequate insulation for
the DC voltage source should be used with this connector. The cable clamp provided with the
DC power plug for strain relief of the DC power input cable should be used when DC power is
connected to NetClock.
Note: Spectracom recommends to use a dedicated DC power supply switch to
energize/de-energize NetClock externally.

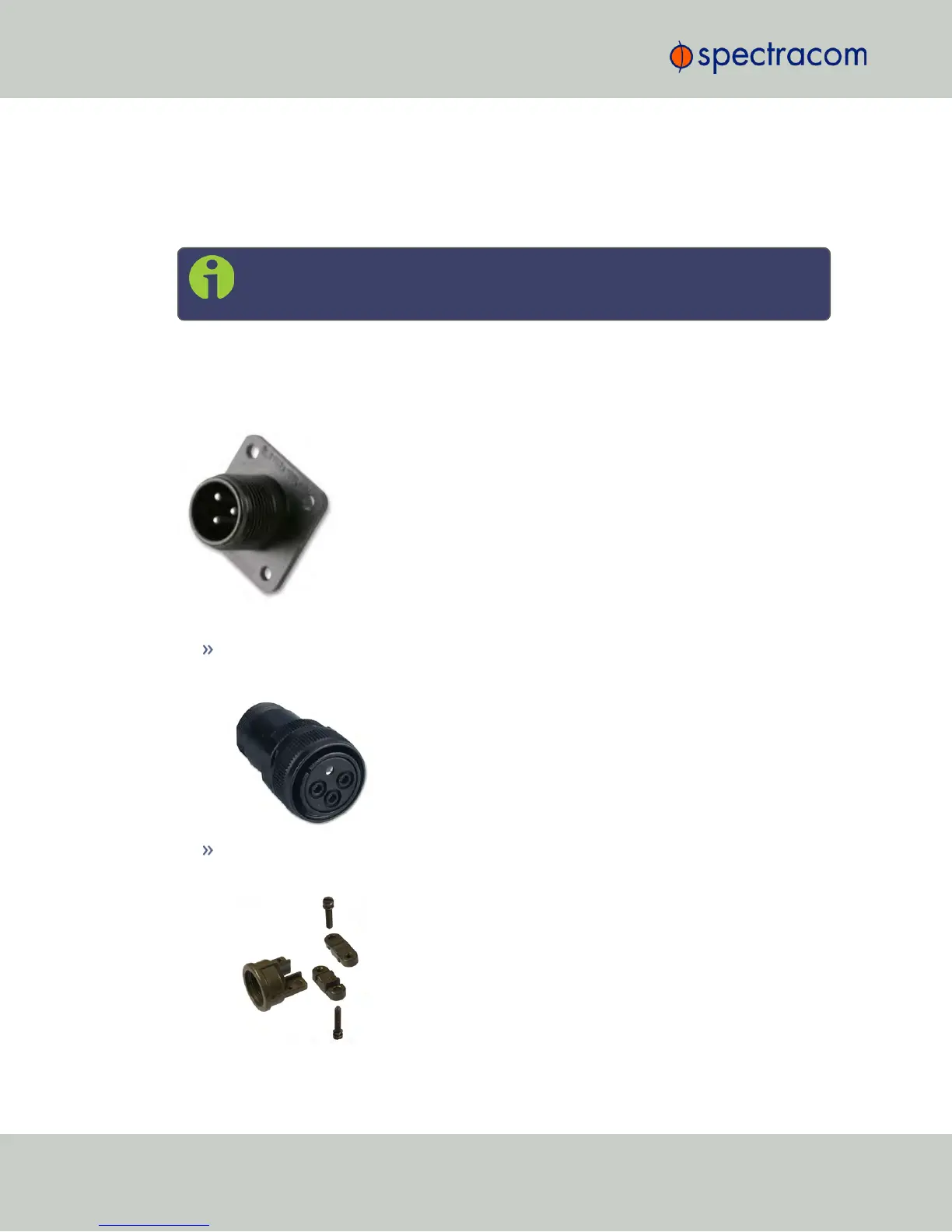

DC power connector pin-out
NetClock units can be ordered in a DC version that includes the following DC plug on the back
panel: DC Plug, 3-pin, chassis mount: Amphenol P/N DL3102A10SL-3P
The DC ancillary kit includes, among other things, the following connector parts:
Mating DC Connector, circular, 3-pin, solder socket, 16AWG,13A,300V: Amphenol
P/N DL3106A10SL-3S; (Spectracom part no. P240R-0032-002F)
Cable Clamp, circular: Amphenol part no. 97-3057-1004(621); (Spectracom part no.
Spectracom part no. MP06R-0004-0001)
38
CHAPTER 2 • NetClock User Reference Guide Rev. 16
2.6 Connecting Supply Power
