USB on-the-go high-speed (OTG_HS) RM0090

1478/1731 DocID018909 Rev 11

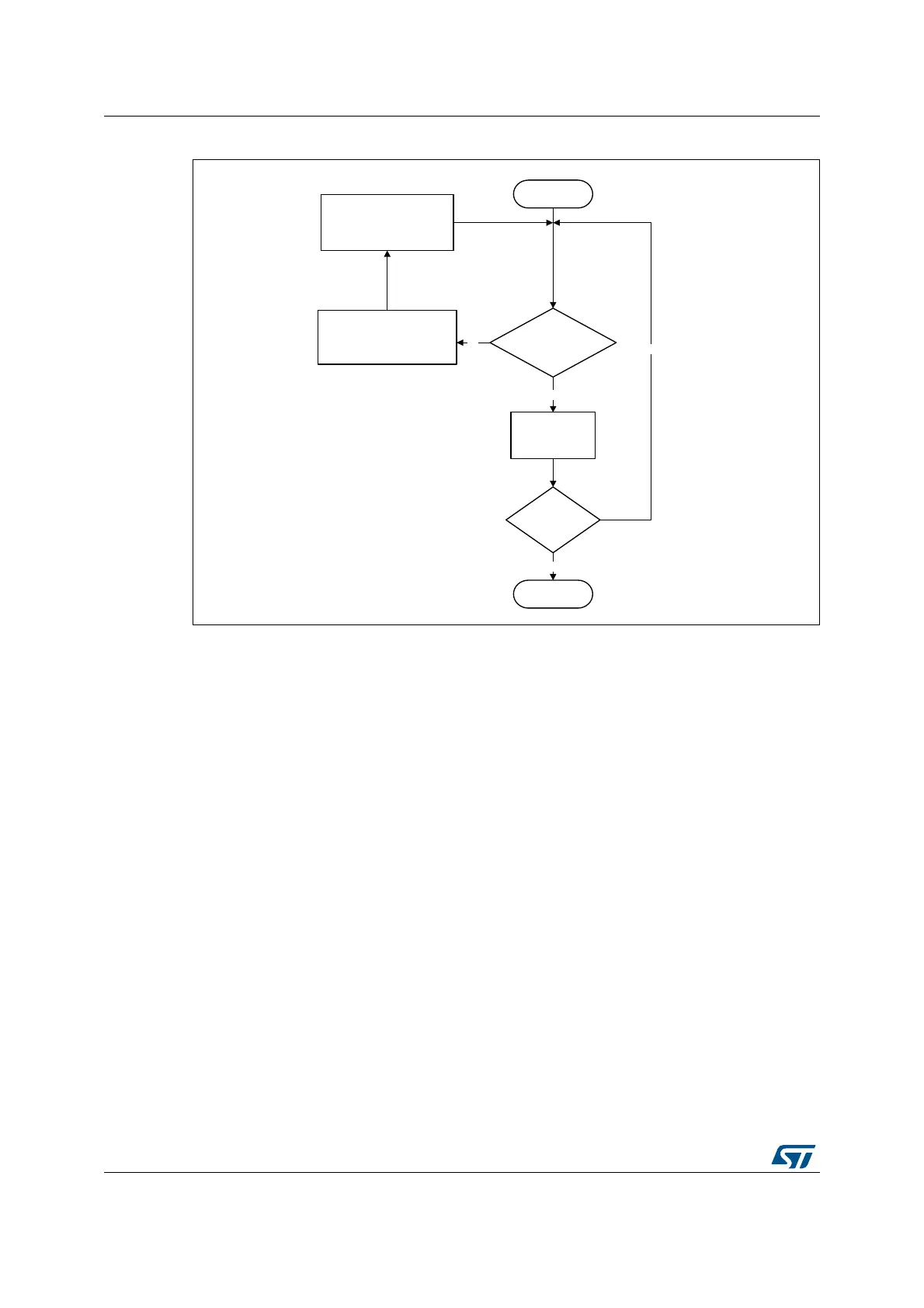

Figure 414. Transmit FIFO write task

• Reading the receive FIFO

The application must ignore all packet statuses other than IN data packet (bx0010).

1 MPS

or LPS FIFO space

available?

Wait for

Write 1 packet

data to

Transmit FIFO

More packets

to send?

Yes

Read GNPTXSTS/

HPTXFSIZ registers for

available FIFO and

queue spaces

Yes

MPS: Maximum packet size

LPS: Last packet sizetacet

Start

Done

ai15673

TXFELVL or PTXFELVL

interrupt in

OTG_FS_GAHBCFG
