RM0090 Inter-integrated circuit (I

C) interface

864

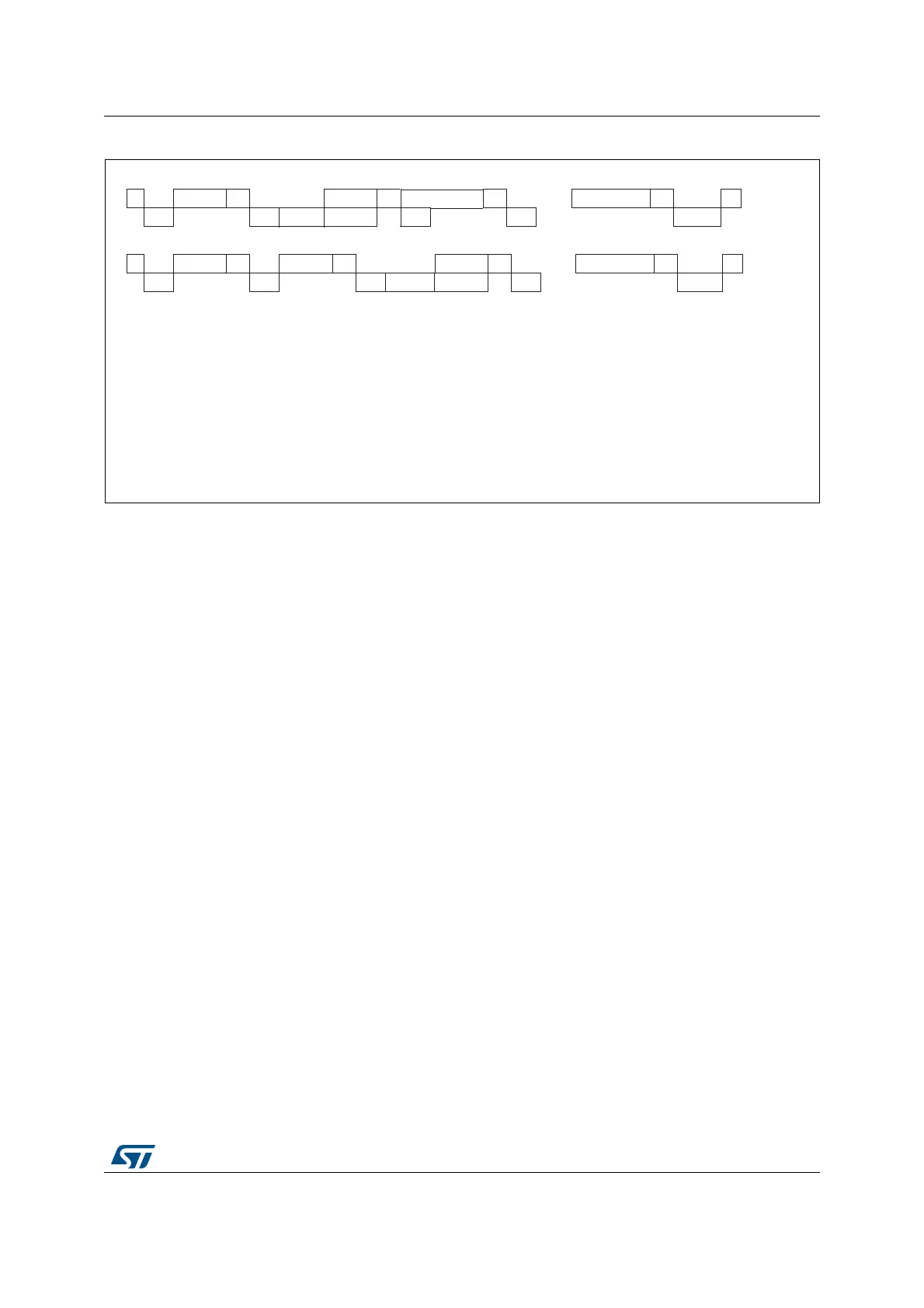

Figure 243. Transfer sequence diagram for master transmitter

1. The EV5, EV6, EV9, EV8_1 and EV8_2 events stretch SCL low until the end of the corresponding software

sequence.

2. The EV8 event stretches SCL low if the software sequence is not complete before the end of the next byte

transmission.

7-bit master transmitter

10-bit master transmitter

Legend: S= Start, S

= Repeated Start, P= Stop, A= Acknowledge,

EVx= Event (with interrupt if ITEVFEN = 1)

EV5: SB=1, cleared by reading SR1 register followed by writing DR register with Address.

EV6: ADDR=1, cleared by reading SR1 register followed by reading SR2.

EV8_1: TxE=1, shift register empty, data register empty, write Data1 in DR.

EV8: TxE=1, shift register not empty, data register empty, cleared by writing DR register.

EV8_2: TxE=1, BTF = 1, Program Stop request. TxE and BTF are cleared by hardware by the Stop condition

EV9: ADD10=1, cleared by re

ading SR1 register followed by writing DR register.

S Address AData1A Data2A

.....

DataNA P

EV5 EV6 EV8_1 EV8 EV8 EV8 EV8_2

S Header A Address AData1A

.....

DataNA P

EV5 EV9 EV6 EV8_1 EV8 EV8 EV8_2

ai18210
