USB on-the-go high-speed (OTG_HS) RM0090

1488/1731 DocID018909 Rev 11

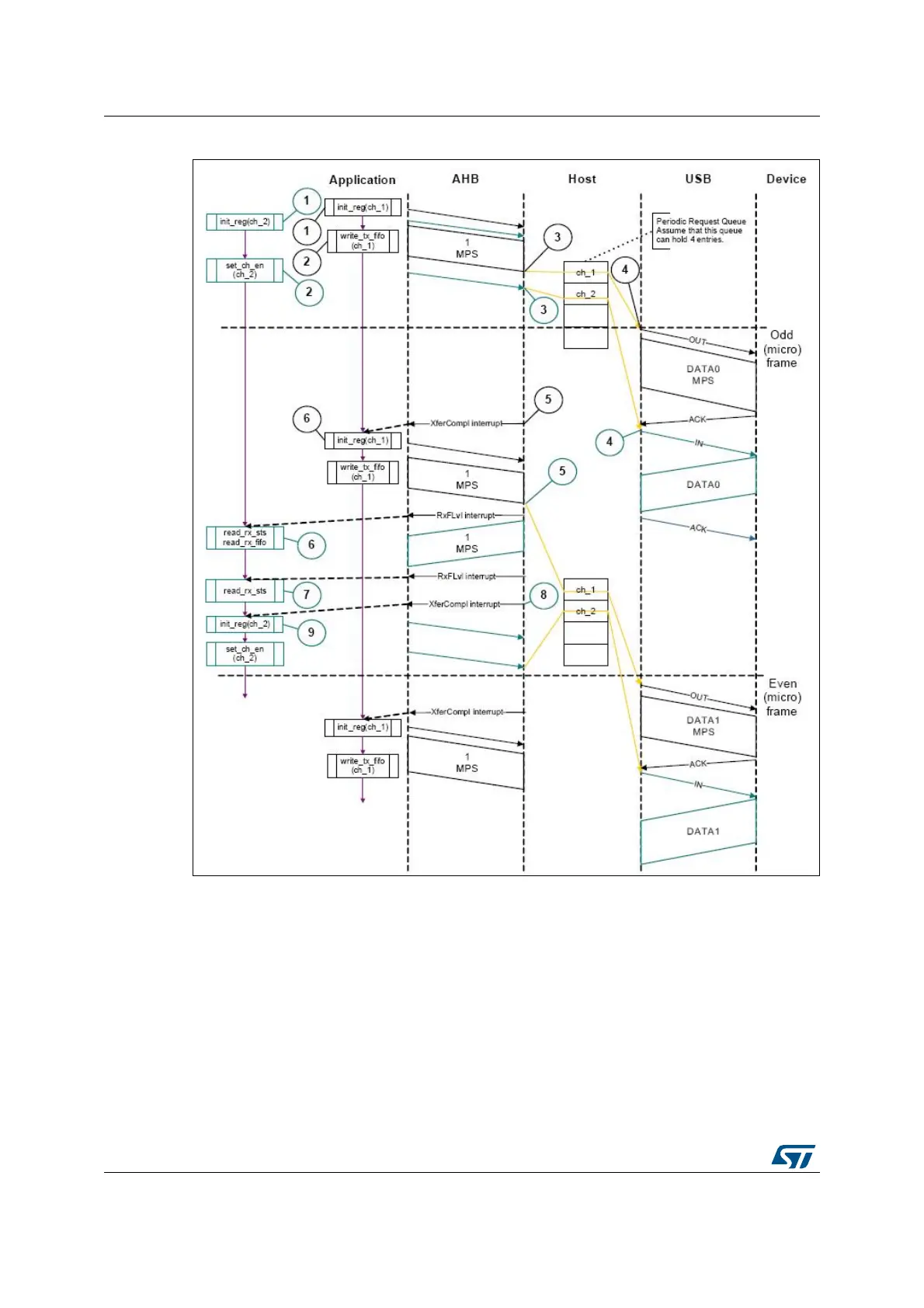

Figure 421. Normal interrupt OUT/IN transactions - Slave mode

• Interrupt service routine for interrupt OUT/IN transactions

a) Interrupt OUT

Unmask (NAK/TXERR/STALL/XFRC/FRMOR)

if (XFRC)

{

Reset Error Count

Mask ACK

De-allocate Channel

}

else

if (STALL or FRMOR)

{
