DocID018909 Rev 11 1615/1731

RM0090 Flexible memory controller (FMC)

1669

Mode D - asynchronous access with extended address

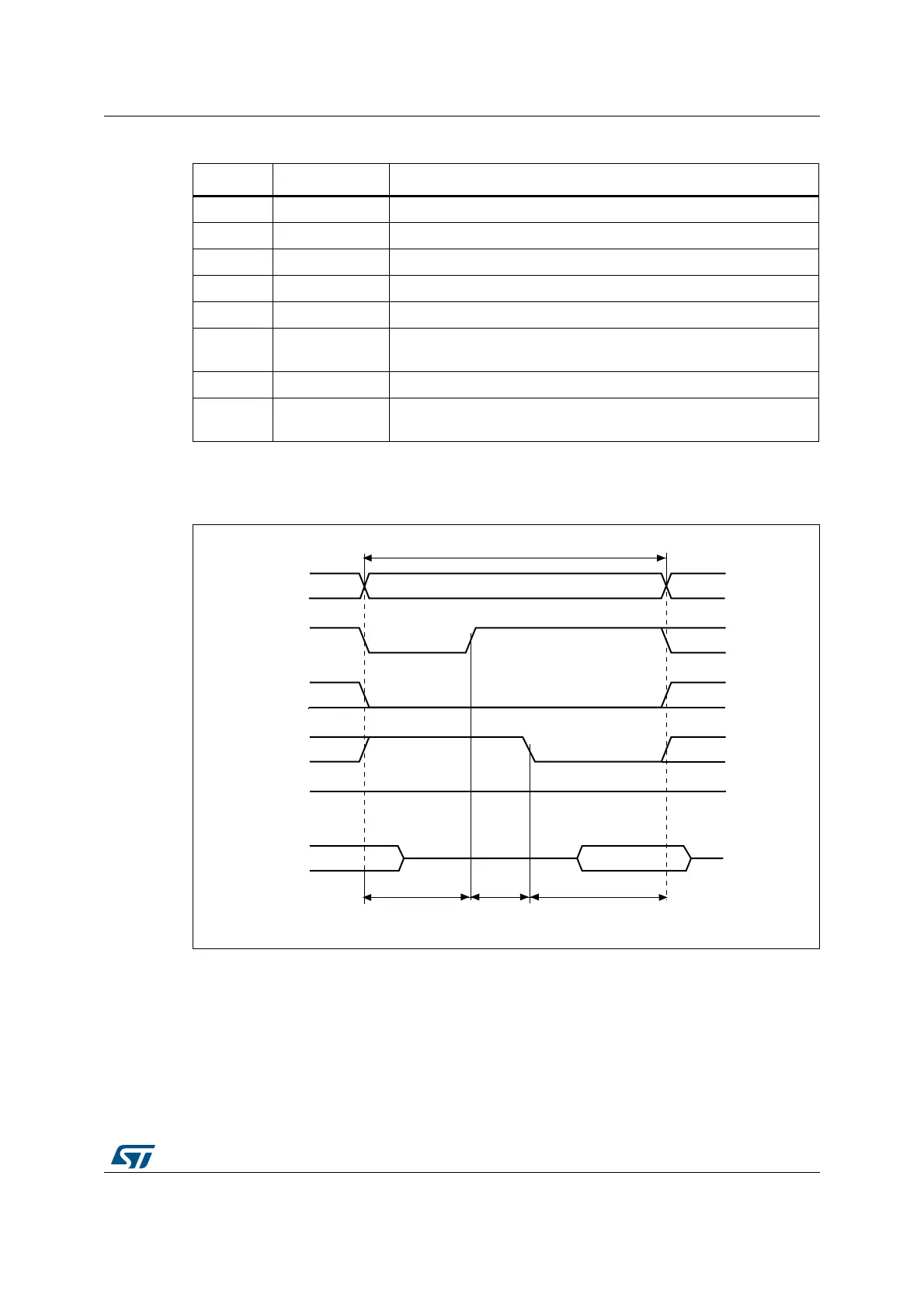

Figure 465. ModeD read access waveforms

Table 274. FMC_BWTRx bit fields

Bit No. Bit name Value to set

31:30 Reserved 0x0

29-28 ACCMOD 0x2

27-24 DATLAT Don’t care

23-20 CLKDIV Don’t care

19-16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK)

15-8 DATAST

Duration of the second access phase (DATAST HCLK cycles) for

write accesses.

7-4 ADDHLD Don’t care

3-0 ADDSET[3:0]

Duration of the first access phase (ADDSET HCLK cycles) for write

accesses. Minimum value for ADDSET is 0.

!;=

./%
