DocID018909 Rev 11 1553/1731

RM0090 Flexible static memory controller (FSMC)

1588

Muxed mode - multiplexed asynchronous access to NOR Flash memory

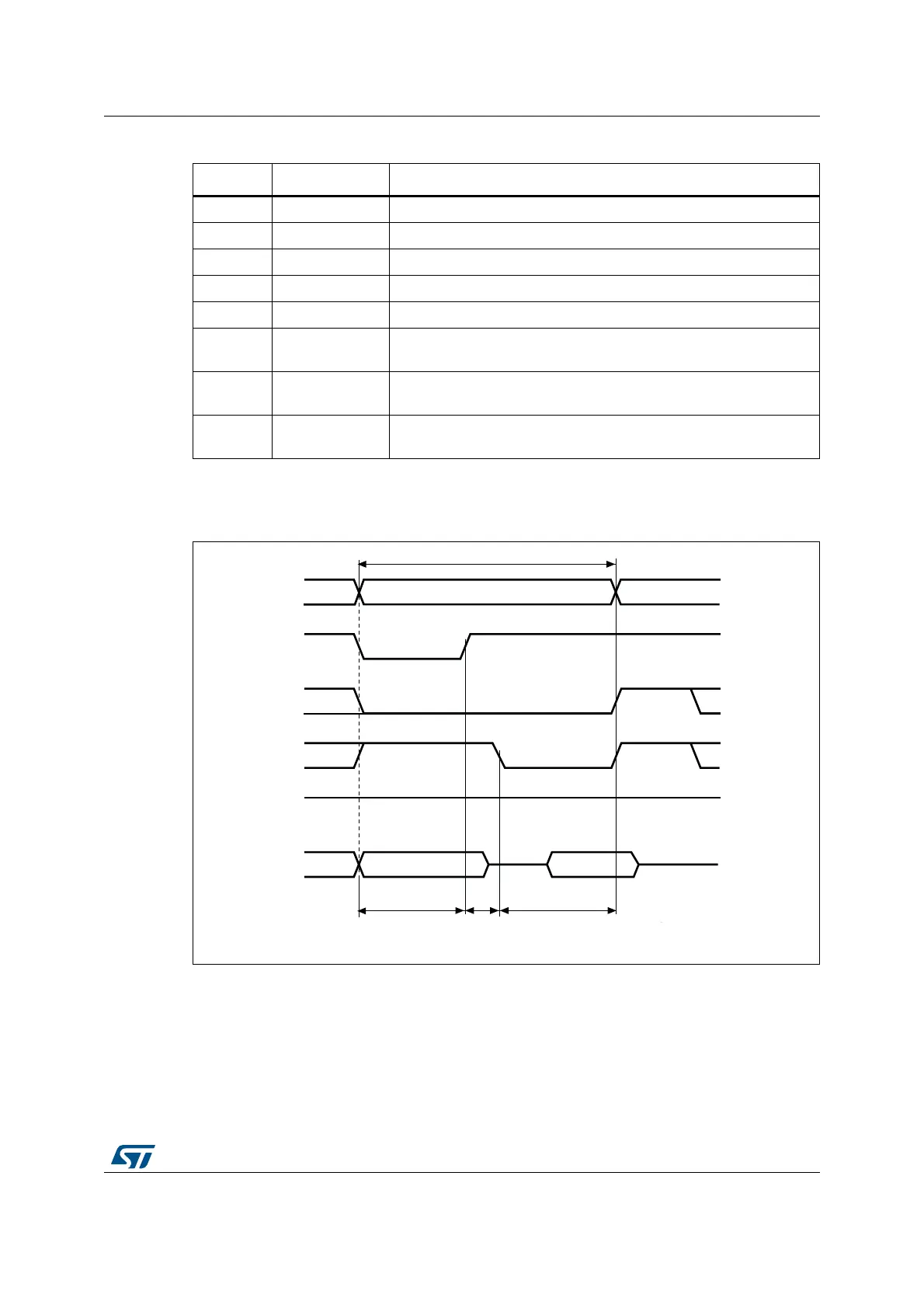

Figure 445. Multiplexed read accesses

Table 234. FSMC_BWTRx bit fields

Bit No. Bit name Value to set

31:30 Reserved 0x0

29-28 ACCMOD 0x3

27-24 DATLAT 0x0

23-20 CLKDIV 0x0

19-16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK)

15-8 DATAST

Duration of the second access phase (DATAST+1 HCLK cycles) for

write accesses

7-4 ADDHLD

Duration of the middle phase of the write access (ADDHLD HCLK

cycles)

3-0 ADDSET[3:0]

Duration of the first access phase (ADDSET+1 HCLK cycles) for

write accesses. Minimum value for ADDSET is 0.

A[25:16]

NOE

ADDSET DATAST

Memory transaction

NEx

AD[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven

by memory

ai15568

High

ADDHLD

HCLK cycles

Lower address
