RM0090 USB on-the-go high-speed (OTG_HS)

1529

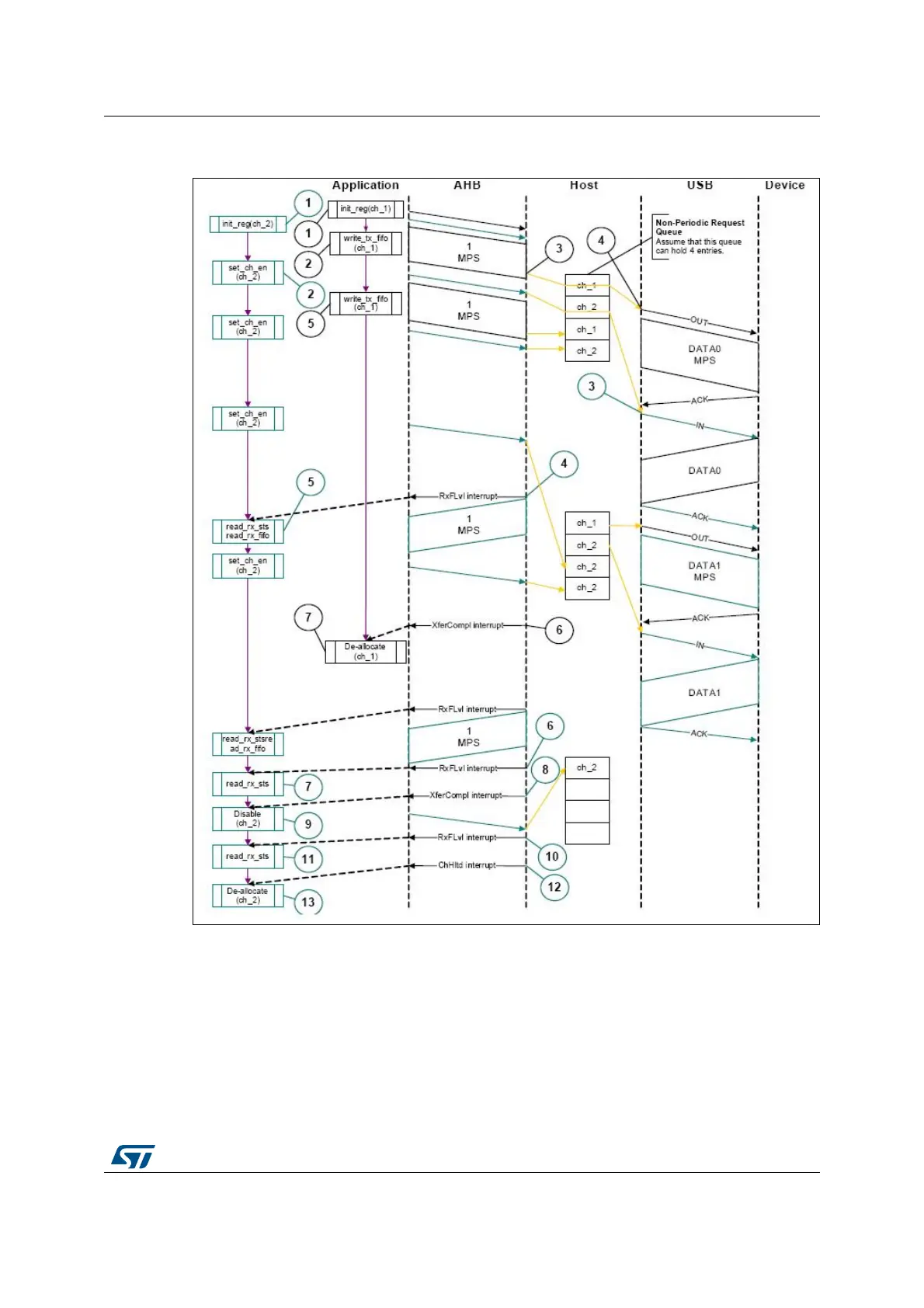

Figure 417. Normal bulk/control OUT/SETUP and bulk/control IN transactions - Slave

mode

The channel-specific interrupt service routine for bulk and control OUT/SETUP

transactions in Slave mode is shown in the following code samples.

• Interrupt service routine for bulk/control OUT/SETUP and bulk/control IN

transactions

a) Bulk/Control OUT/SETUP

Unmask (NAK/TXERR/STALL/XFRC)

if (XFRC)

{

Reset Error Count

Default Chapter2
