DocID018909 Rev 11 1543/1731

RM0090 Flexible static memory controller (FSMC)

1588

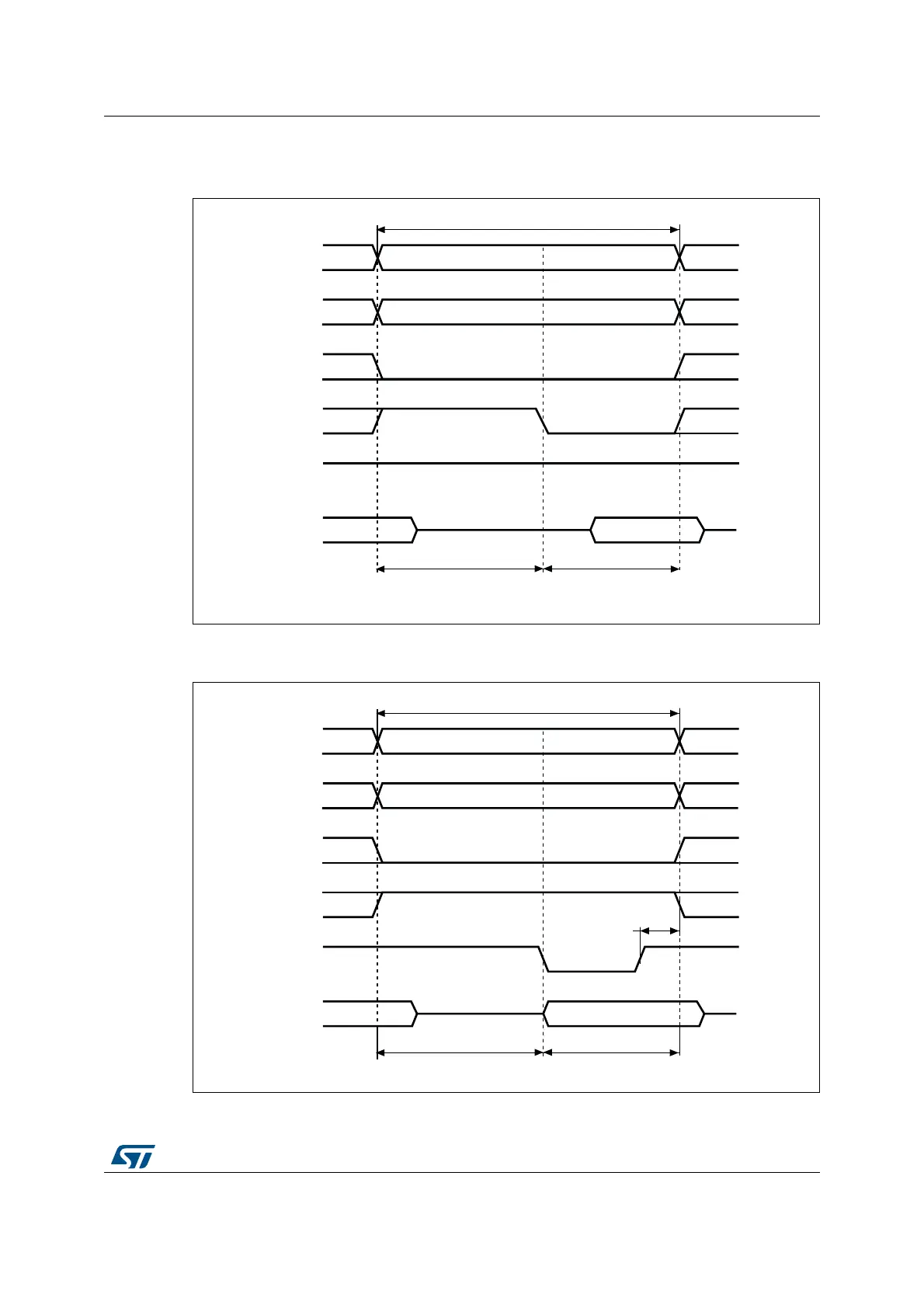

Mode A - SRAM/PSRAM (CRAM) OE toggling

Figure 436. ModeA read accesses

1. NBL[1:0] are driven low during read access.

Figure 437. ModeA write accesses

A[25:0]

NOE

ADDSET DATAST

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NBL[1:0]

data driven

by memory

ai15559

High

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NBL[1:0]

data driven by FSMC

ai15560
