DocID018909 Rev 11 1485/1731

RM0090 USB on-the-go high-speed (OTG_HS)

1529

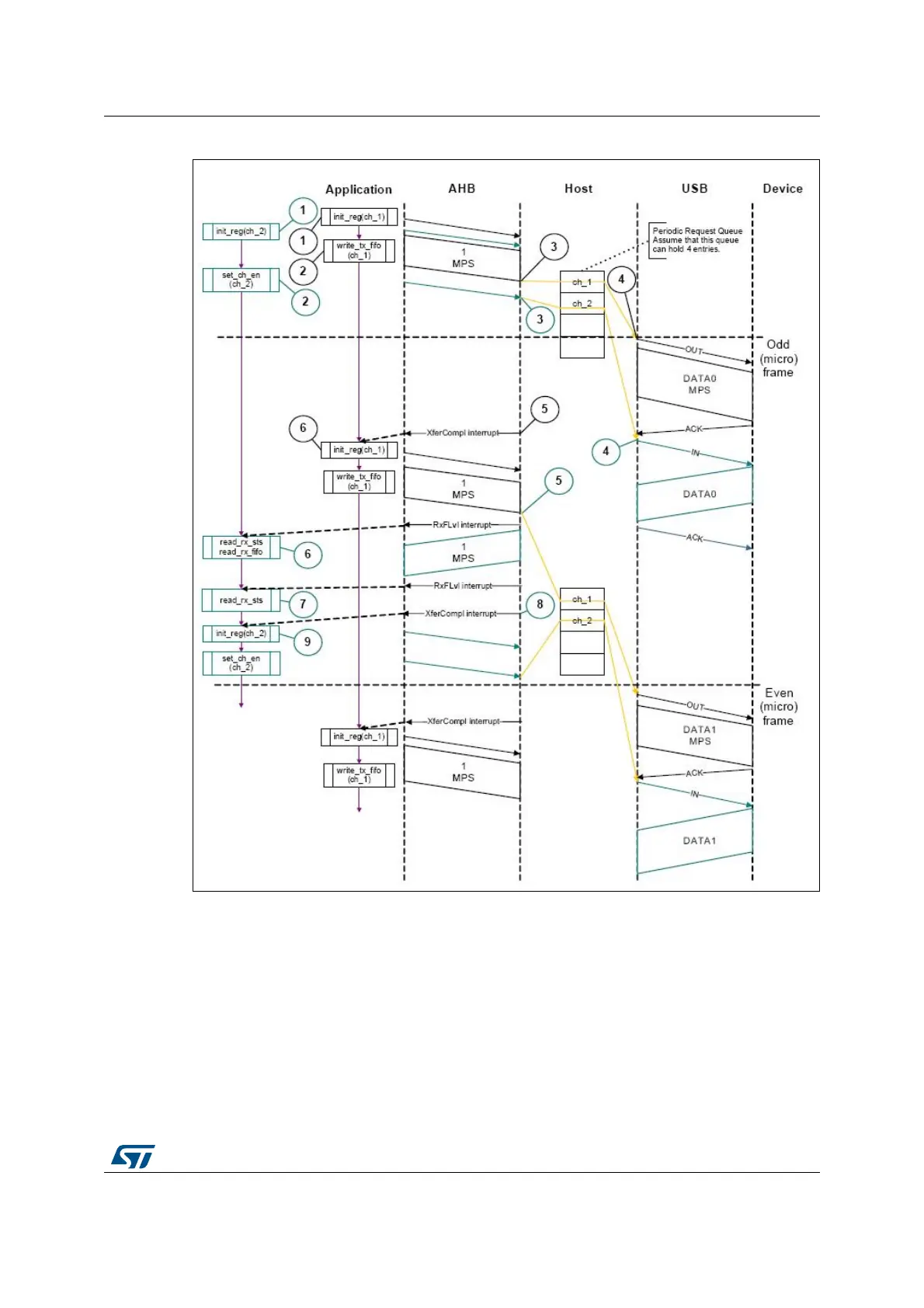

Figure 419. Bulk/control IN transactions - Slave mode

The sequence of operations is as follows:

a) Initialize channel 2.

b) Set the CHENA bit in HCCHAR2 to write an IN request to the nonperiodic request

queue.

c) The core attempts to send an IN token after completing the current OUT

transaction.

d) The core generates an RXFLVL interrupt as soon as the received packet is written

to the receive FIFO.

e) In response to the RXFLVL interrupt, mask the RXFLVL interrupt and read the

received packet status to determine the number of bytes received, then read the
