Vista 1 Digital Mixing System
3-8 Parameters
Document generated: 18.04.17
SW V5.3
Format Input Channels ITU Output Channels
ITU
L R C L F E Ls Rs
L R C LFE Ls Rs
Studer (SW before V4.0)
L R C Ls Rs LFE
Film
L C R Ls Rs LFE
L R
L R

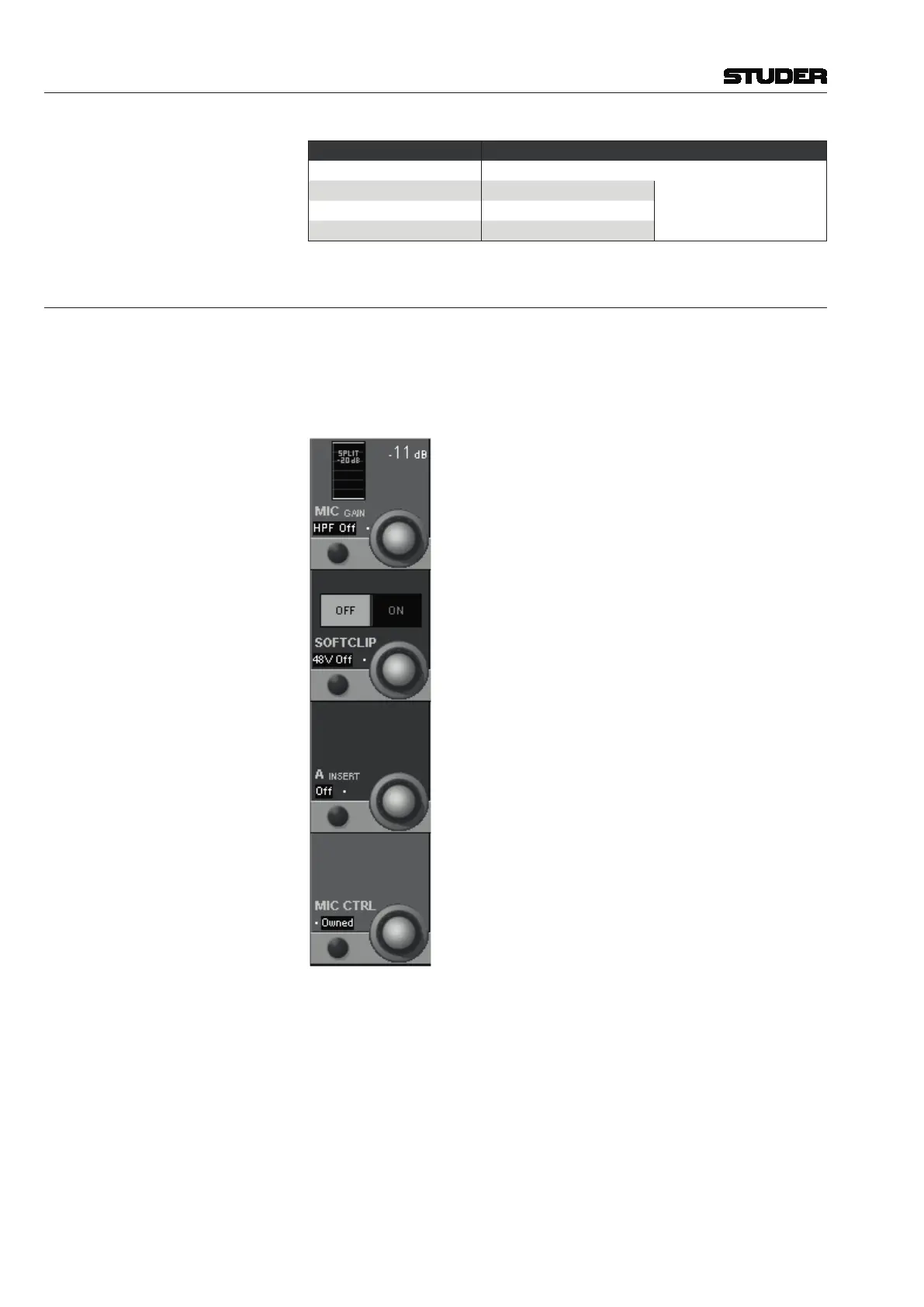

3.3.2 Pre-Amp Remote Parameters
Press GLOBAL VIEW: A / D CTRL.
Various analog functions of the mic/line input cards can be remote controlled.
On the 5.1 surround input channels these controls are linked for all six legs
of the surround signal. All mic/line cards provide an active split output for
each microphone channel.
MIC GAIN Gain setting in steps of 1 dB, within a –26 through +60 dB range. The display
indicates the gain applied to signals passing through the microphone pre-
amplifier card. (indication value depending on the current 0dBFS Reference
setting).
HPF On/Off Analog low-cut filter for the microphone-level input, with a fixed cutoff
frequency of 75 Hz and a slope of 12 dB/octave is available.
SOFT CLIP ON/OFF A soft clip function is available on all channels and can be activated individu-
ally. This ‘analog limiter’ may prevent nasty clipping noises in case the audio
level should be too high. We recommend activating this function during live
productions, since audio is not influenced below about –6 dB
FS
.
48 V On/Off Toggles phantom power on/off for the microphone input.
