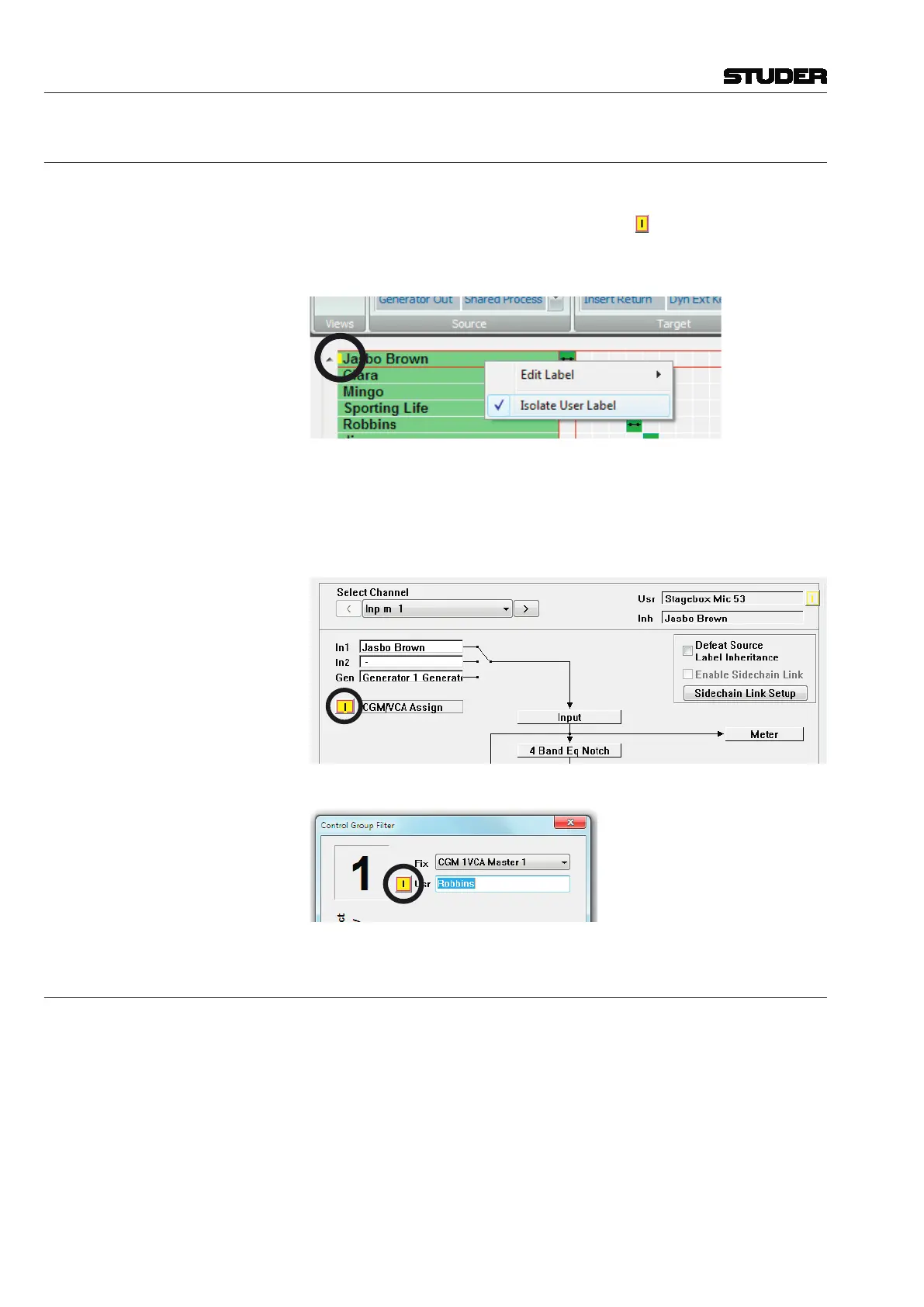

4.4.5.2.12 Isolate Labels and VCA Assignment
In order to allow label changes being copied into several snapshots (by recall-
ing and updating snapshots) they need to be able being isolated on an input
port-by-input port basis. This is done with the
isolate button next to the
user label button in the general patch page; if isolation is active, the button
is highlighted in yellow.
Isolated User Label
The VCA assigns need to be able to being isolated as well. The VCA assign
isolation can also be done on the input channel side, individually channel-
per-channel. This is done in the channel patch page.
Isolated VCA Assignment
Isolated VCA User Label
4.4.5.2.13 Mute Groups
In theatre mode, the mute groups are fully independent from snapshots and
VCA/mute events. Mute group mutes will neither be saved in the snapshots
in this case, nor will they be overwritten by a snapshot recall.
