3.4.4.1 Amplitude Panning Parameters

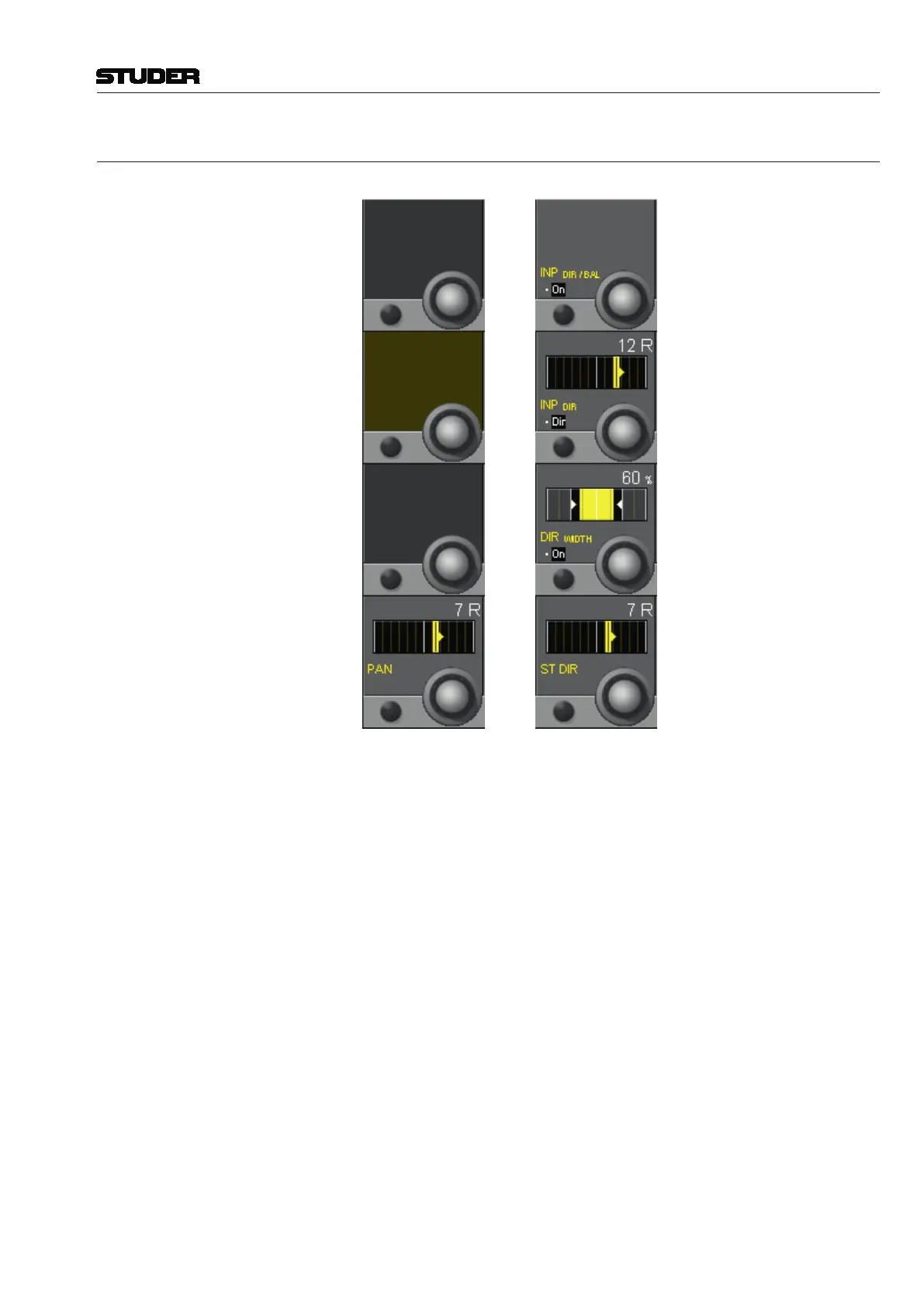

Mono Channels: Stereo Channels:
LR Panning Parameters for Mono Channels:
Mono channel LR PAN has only one panning function: left/right panning. It
is useful for left/right panning to stereo master or group busses, or for odd/
even panning to group or multi-track busses.
General PAN On/Off is selected with the PAN hardware key above the Vistonics section.
PAN Rotary Therotaryencoderprovidesleft/right(odd/even)panningcontrolin1°steps
from–30°(fullyleft)to+30°(fullyright).
LR/Direction Panning Parameters for Stereo Channels:
Stereo channel DIR/BAL PAN is a stereo direction panning function. It is
useful for controlling the direction of stereo signals to master, group, and
multi-track busses.
DIR WIDTH is identical to the DIR pan with an optional width control added
(depending on the currently loaded configuration).
PAN On/Off is selected with the PAN hardware key above the Vistonics section.
INP DIR / BAL On/Off Activates the input balance or the input direction control, depending on the
function selected with INP BAL / INP DIR. This function is placed within
the signal path of the channel before the mono switch, selectable in the ‘2CH
mode’ section.
