2.1.5.2 ‘Vista 1 Surround’ Configuration Template
CR Mon PFL / Nearfields
Rs
CR Monitor (Surround)
Lfe
R
Ls
C
L
TB Mic
Mon Insert Send
CR Meter
Mon Insert Return
Format Analog I/O Digital I/O
CR Mon Main 5.1 LineOut 25-30 -
OUTPUTS
CR Mon
PFL/Nearelds
stereo LineOut 31, 32 -
CR Meter 5.1 - AES Out 5-10 (inactive)
Studio A Mon stereo - -
Studio B Mon stereo - -
Studio A Meter - -
Studio B Meter - -
Mon Insert Send 5.1 - AES Out 11-16 (inactive)
Mon Insert Return 5.1 - AES In 11-16 (inactive)
INPUTS
TB Mic mono Mic/Line In 32 (inactive) -

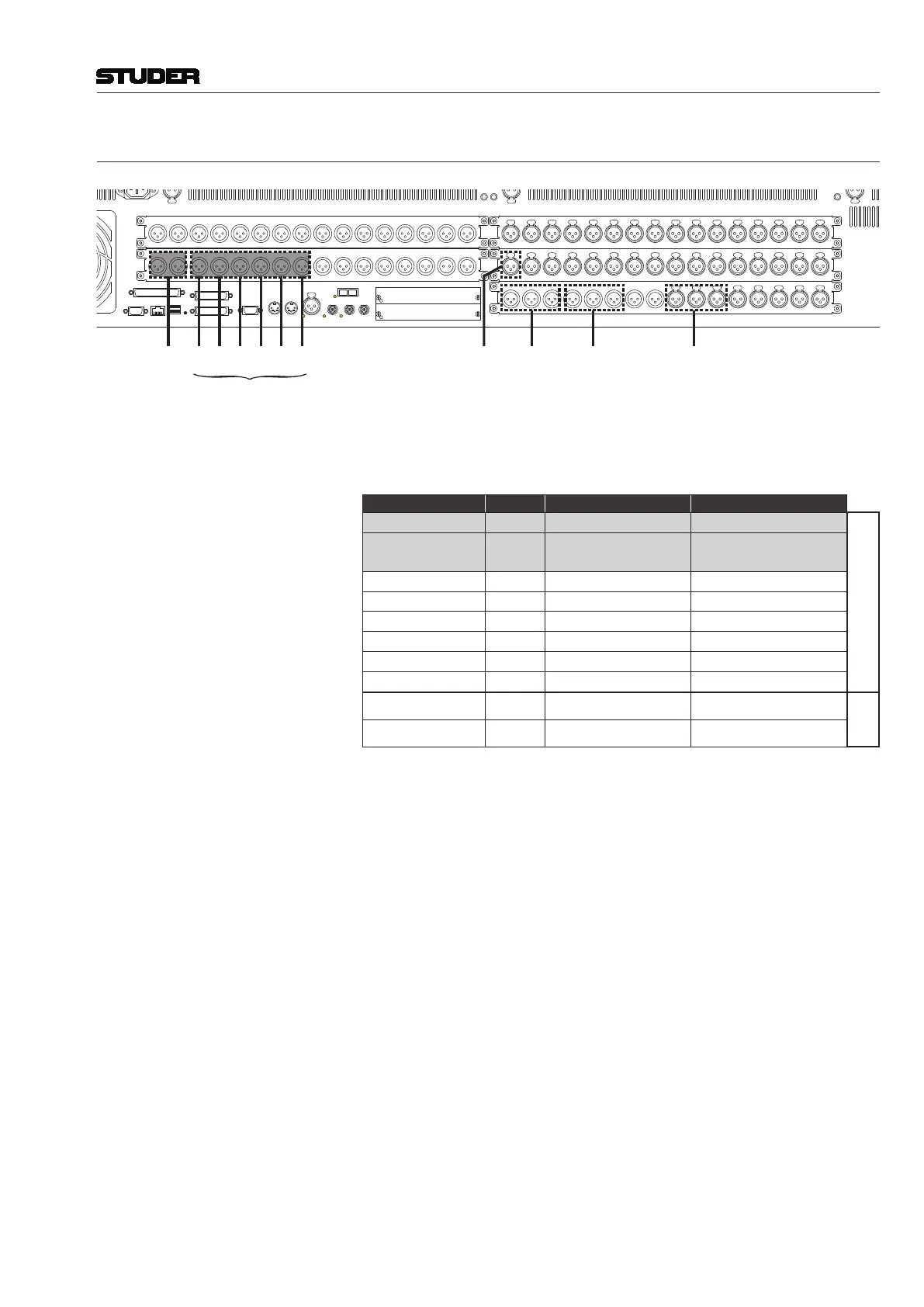

Items marked by (inactive) in the table and in white in the drawing above
are preconfigured in the mon.ini file; they can be activated by deleting the
corresponding comment marks.
