Vista 1 Digital Mixing System
Parameters 3-23
Document generated: 18.04.17
SW V5.3
3.3.13 Global Bus Assignment View
Press GLOBAL VIEW: BUS ASN (at the left-hand side of the fader bay). This
is an On/Off key that can be activated in addition to other global view keys.

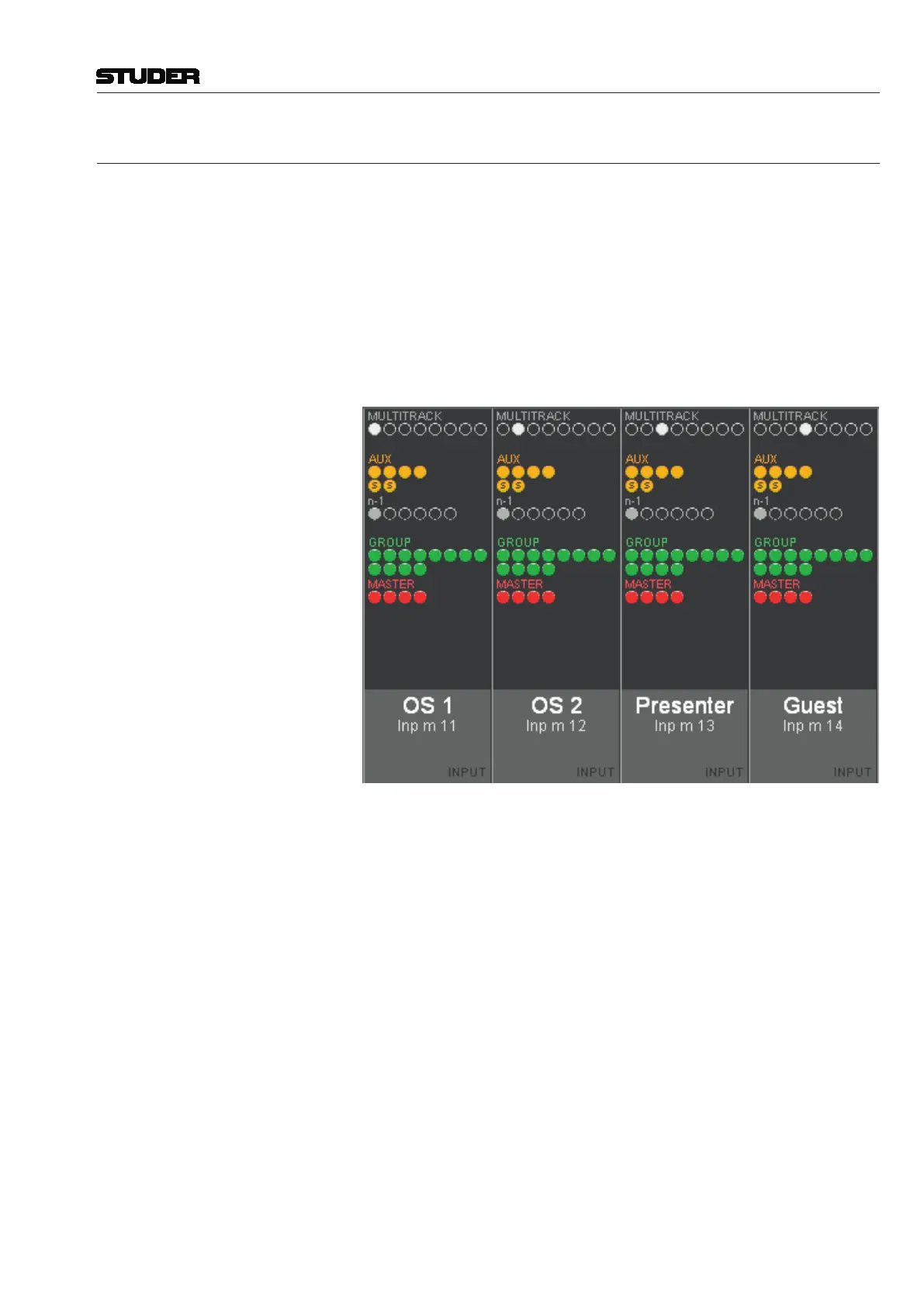

The bus assignment overview will cover the EQ, dynamics and pan curves
on the lower part of the TFT; it disappears when GLOBAL VIEW: BUS ASN is
pressed again.
The displayed bus assignment bitmap varies depending on the channel type.
On a master channel, for instance, no display is activated, since a master
channel cannot be routed to a bus. Other channel types may show a part of the
bitmap only, depending on possible bus assignments. Therefore the display
may show a blank region for some channel types.
