Vista 1 Digital Mixing System
3-42 Parameters
Document generated: 18.04.17
SW V5.3
3.4.4.3 Multi-Format Panning Parameters
Surround panning consists of two panning algorithms: Multi-format panning,
and VSP (Virtual Surround Panning). These support a variety of surround
formats and applications; in all these modes, an LFE (Low Frequency Effects)
control is available. Multi-format panning functions can be used only for
mono channel types.

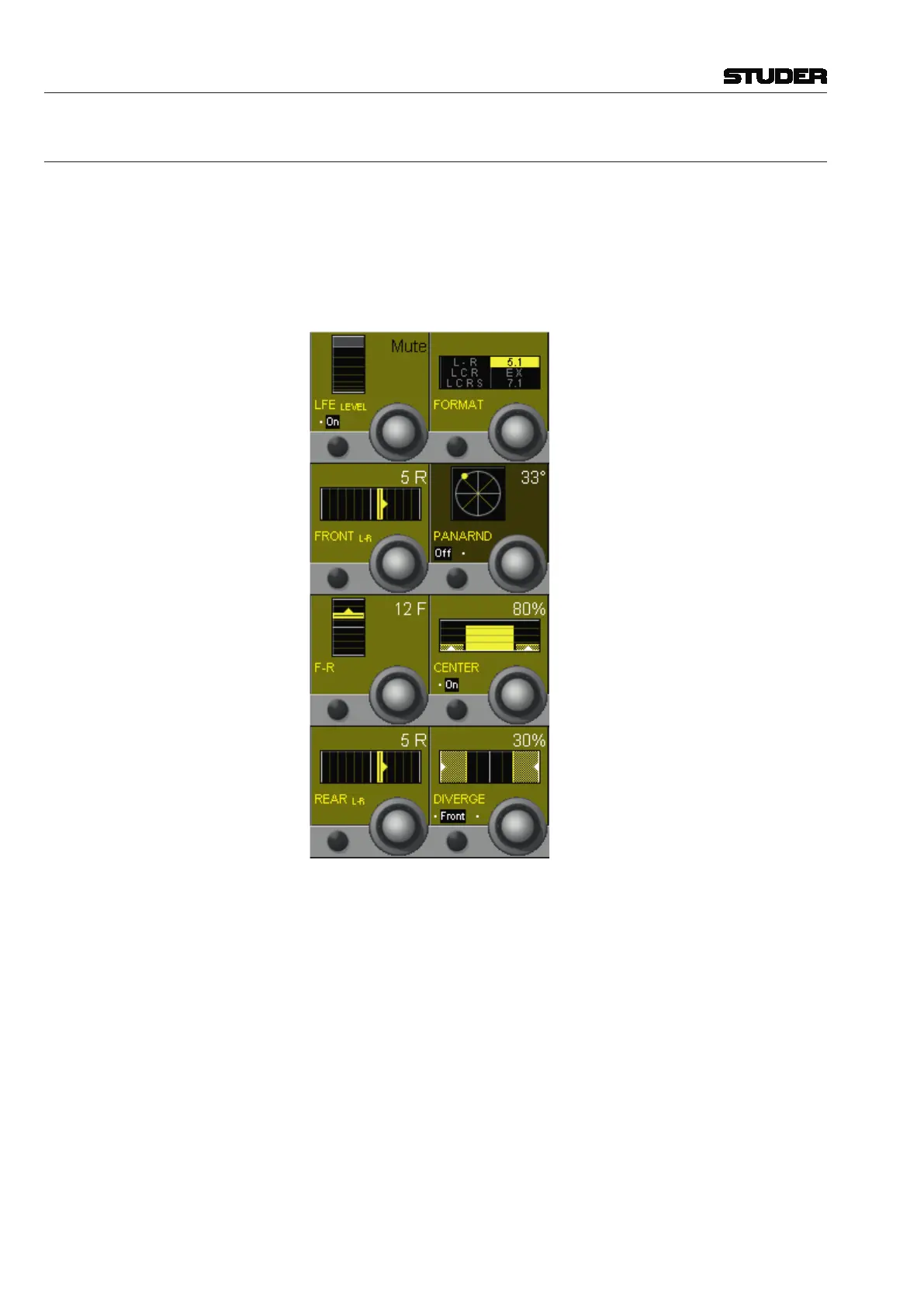

Please note that the view below shows 5.1 panning format; for other panning
formats, one or more of the fields may be blanked.
General PAN On/Off is selected with the PAN hardware key above the Vistonics section.
LFE On/Off On/off control for the Low Frequency Effects channel.
LFE LEVEL Rotary LFE level control from MUTE (i.e. –∞ dB) to +10 dB.
Within this section, no filtering is applied to the signal fed to the LFE bus.
FRONT L-R Rotary This parameter controls the front panning between the left, (left-center, center,
right-center),andrightchannelsin1°steps.Thecontributiontothecenter
channel is determined by the CENTER rotary control.
F-R Rotary This front/rear parameter provides panning between front channels (LCR)
and the rear channels (left and right surround) in 60 increments.
REAR L-R Rotary This parameter controls panning between the left and right surround channels.
