4.4.2.1.3 What Patch Groups are There?
There are different, fixed Patch Groups for each of the Sources and Targets

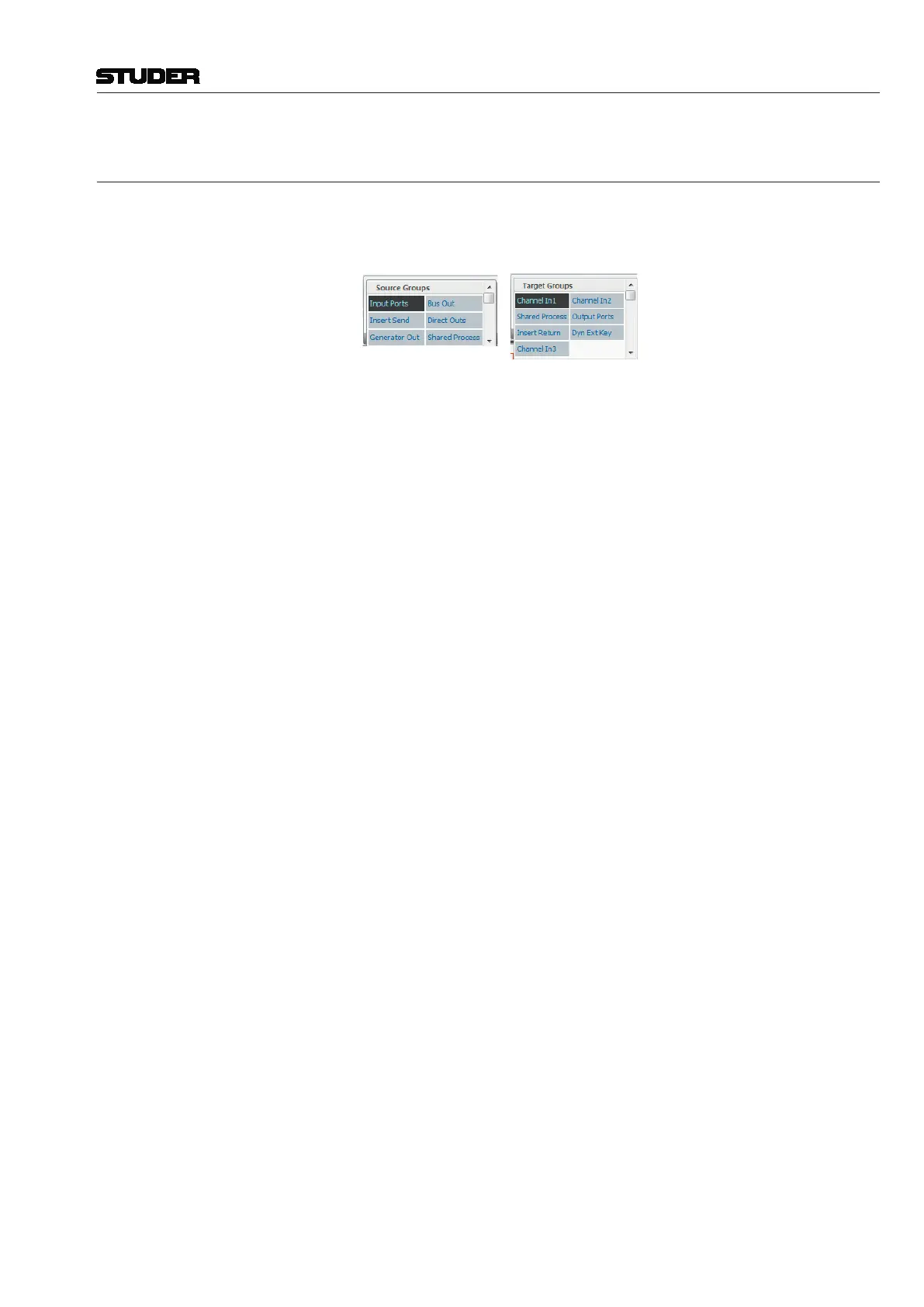

Patch Group selectors :
Sources: Targets:
Each Patch Group contains a number of Sources or Targets, depending on
the currently loaded configuration. Sometimes certain sections will not be
present; for example, if no Channel Inserts have been configured, there will
be no Insert Send section within the Sources List, and no Insert Return section
within the Targets List.
The size of the X-Y General Patch automatically adapts to the number of chan-
nels, input interfaces, output interfaces, and to the presence of DSP function
blocks in the channels – as defined in the currently loaded configuration.
Some detail information on the sections:
Source Patch Groups:
Dir Out All Direct Outputs of all channel types.
Input Ports All input audio interfaces (AES/EBU, MADI, or D21m A/D converters).
Insert Send Sends from the inserts of all channel types.
Bus Out Unlike analog consoles, with the Vista any bus is a valid audio signal source;
e.g. an AUX mono bus can be used to feed an output interface, or to become
an input to an input channel.
Generator The test generator’s signal.
Shared Process All outputs of the shared process DSP section, such as CR/ST monitoring,
downmixers, shared delays, etc.
Effect Out The output signals from the FX engines.
Targets Patch Groups:
Channel In1 First audio input to all channel types,
  • Freetouseforallinputchannels,
  • UsedfordefaultconnectionofthecorrespondingBusforanoutputchan-
nel, such as a Group, Master, or Aux channel.
Channel In2 Second audio input to all channel types,
  • Freeforallinputandoutputchannels.
Channel In3 Third audio input to all channel types,
  • UsedfortheTestGeneratorconnectionperdefault,
  • Canbere-patchedtoanysourceatanytime.
Output Ports All output audio interfaces (AES/EBU or MADI, D/A converters).
Insert Returns Returns to the inserts of all channel types.
Dyn Ext Key Input for the external control signal (key) to the Dynamics Sidechain of all
channel types.
Shared Process All inputs to the shared process DSP section, such as CR/ST monitoring,
downmixers, shared delays, etc.
Effect In Inputs to the FX engines.
