Vista 1 Digital Mixing System
2-12 Desk Operation
Document generated: 18.04.17
SW V5.3
2.1.5 Monitoring/Talkback Inputs/Outputs
The monitoring and talkback input and output assignment is not fixed but
depends on the currently loaded desk configuration and on any personal
changes made to it later.
The next two paragraphs show the monitoring/TB I/O factory defaults. Please
note that the range of configuration templates will grow with time, and there
also may be some future changes and modifications to these default assign-
ments.
2.1.5.1 ‘Vista 1 Mono/Stereo/FOH/Monitor’ Configuration Templates

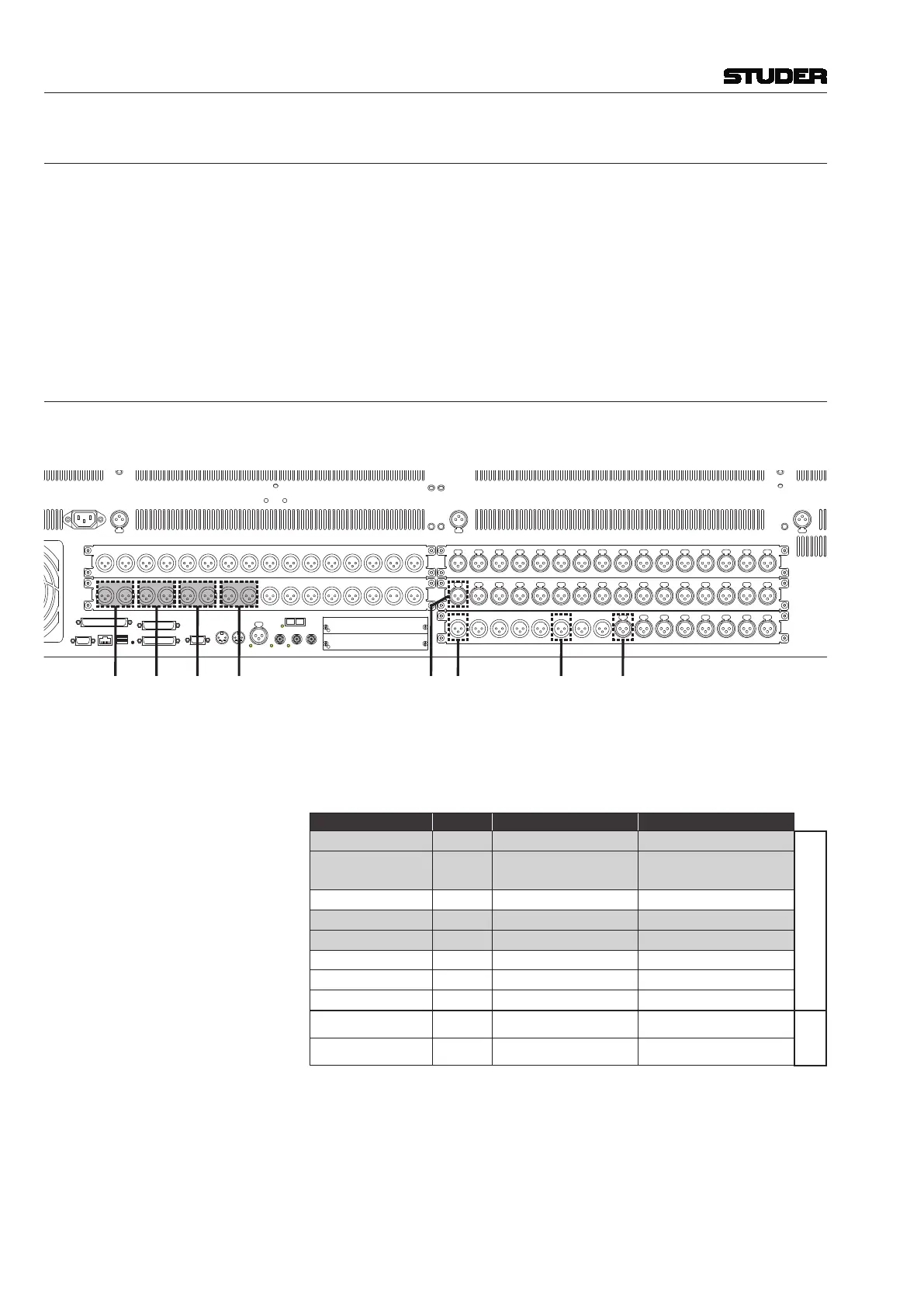

The monitoring and TB I/O connector assignment for the mono, stereo and
PA configurations is identical, according to the information given below.
CR Mon PFL / Nearfields
Studio B Mon
Studio A Mon
CR Mon Main (L/R)
TB Mic
Mon Insert Send
CR Meter
Mon Insert Return
Format Analog I/O Digital I/O
CR Mon Main stereo LineOut 25, 26 -
OUTPUTS
CR Mon
PFL/Nearelds
stereo LineOut 31, 32 -
CR Meter stereo - AES Out 5/6 (inactive)
Studio A Mon stereo LineOut 27, 28 -
Studio B Mon stereo LineOut 29, 30 -
Studio A Meter - -
Studio B Meter - -
Mon Insert Send stereo - AES Out 15/16 (inactive)
Mon Insert Return stereo - AES In 15/16 (inactive)
INPUTS
TB Mic mono Mic/Line In 32 (inactive) -
Items marked by (inactive) in the table and in white in the drawing above
are preconfigured in the mon.ini file; they can be activated by deleting the
corresponding comment marks.
