Vista 1 Digital Mixing System
1-6 Introduction
Document generated: 18.04.17
SW V5.3

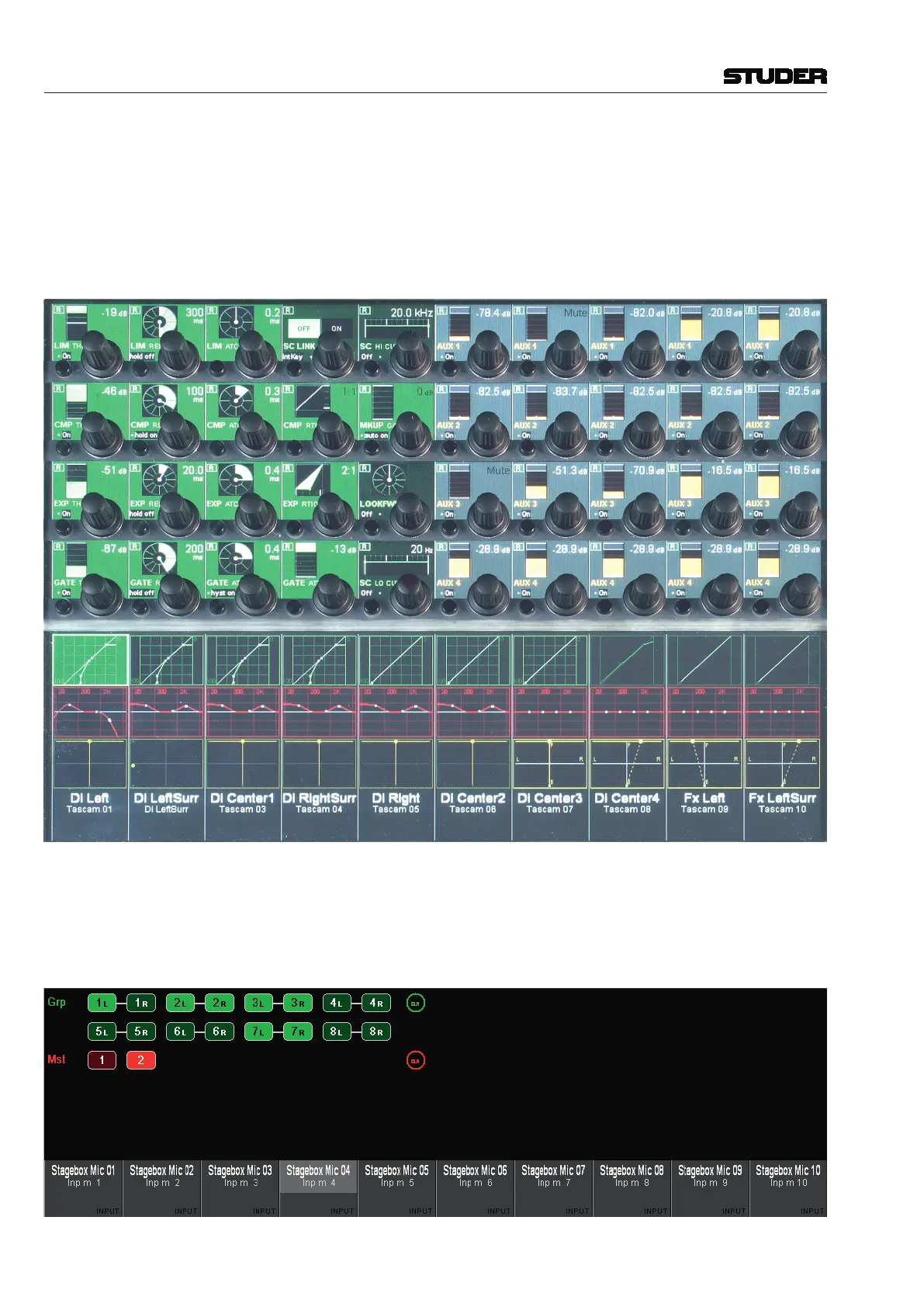

Local Views By touching the graphics shown below the Vistonics rotary controls, the whole
parameter set of that specific curve is displayed, also covering some of the
neighboring channel strips. It is also possible to touch any two curves in one
bay in order to display both at the same time.
The example below shows the complete dynamics section of the leftmost
channel (the small dynamics view is highlighted), overlaid to a global AUX
view.
This philosophy is completed by three hardware keys underneath the Viston-
ics display, showing different combinations of parameters as well as the bus
assignment of that specific channel, covering the whole Vistonics area.
Local Bus Assign View Channels may directly be assigned to a bus in this view.
