2 The N–1 Send Line (Physical Output) and Return Line (Physical Input)
must be patched in the General Patch
3 The channels which are to be sent to the –1 must be assigned to the bus.

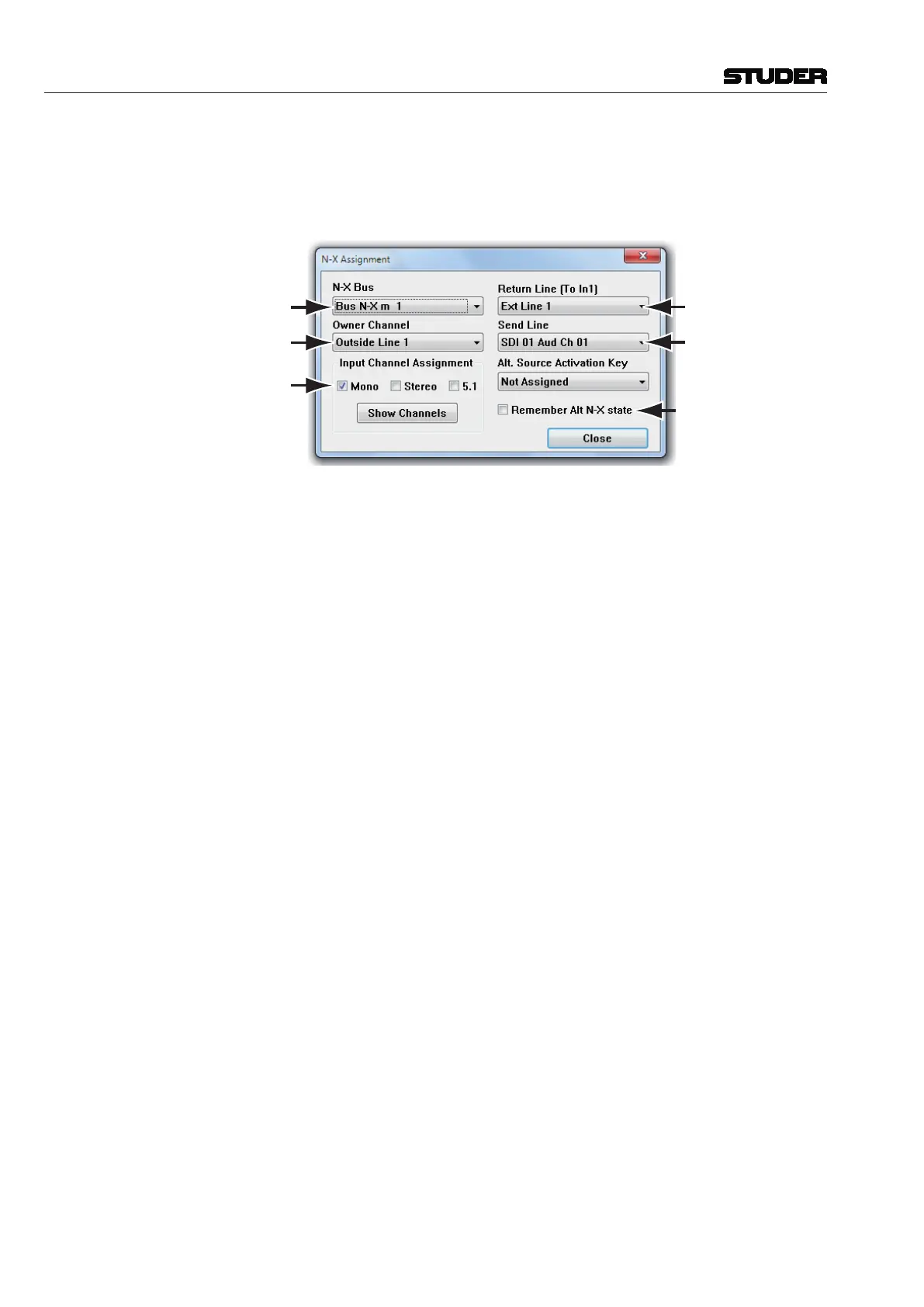

The N–1 Assignment window allows fast setup of this process.
Bus Selection
Assignment of
Channels to Bus
Bus Owner Selection
Return Input
Selection
Send Output
Selection
Alt N–X Option
Selection
Setup is as follows:
1 First choose the N–1 bus to be used with the drop-down menu, and the
Bus Owner Channel which will be the –1 channel.
2 Use the drop-down menus to select the Return Line (Physical Input) and
Send Line (Physical Output) to which the Outside Source (–1) is connected
to the console. This is essentially making cross-points in the General Patch
without having to go to the General Patch page. Selections made using
these drop-down menus will change any previous patching of the Outside
Source. Please note that the label type shown is taken from the General
Patch.
3 The three Channel Assignment check boxes allow fast allocation of all
Input Channels to the chosen N–1 bus. If only Mono inputs are chosen,
then all Mono input channels in the system (except the Bus Owner chan-
nel) are routed to the chosen bus. If specific channels need to be routed
instead of all Mono, Stereo or 5.1 input channels, the Show Channels
button should be clicked. This will extend the window as shown below, to
allow individual assignment of the channels to the chosen N–1 bus within
the currently loaded DSP configuration.
To Next Page
