FLIGHT PHASES
16 CLIMB
Example 2 (Cont'd):

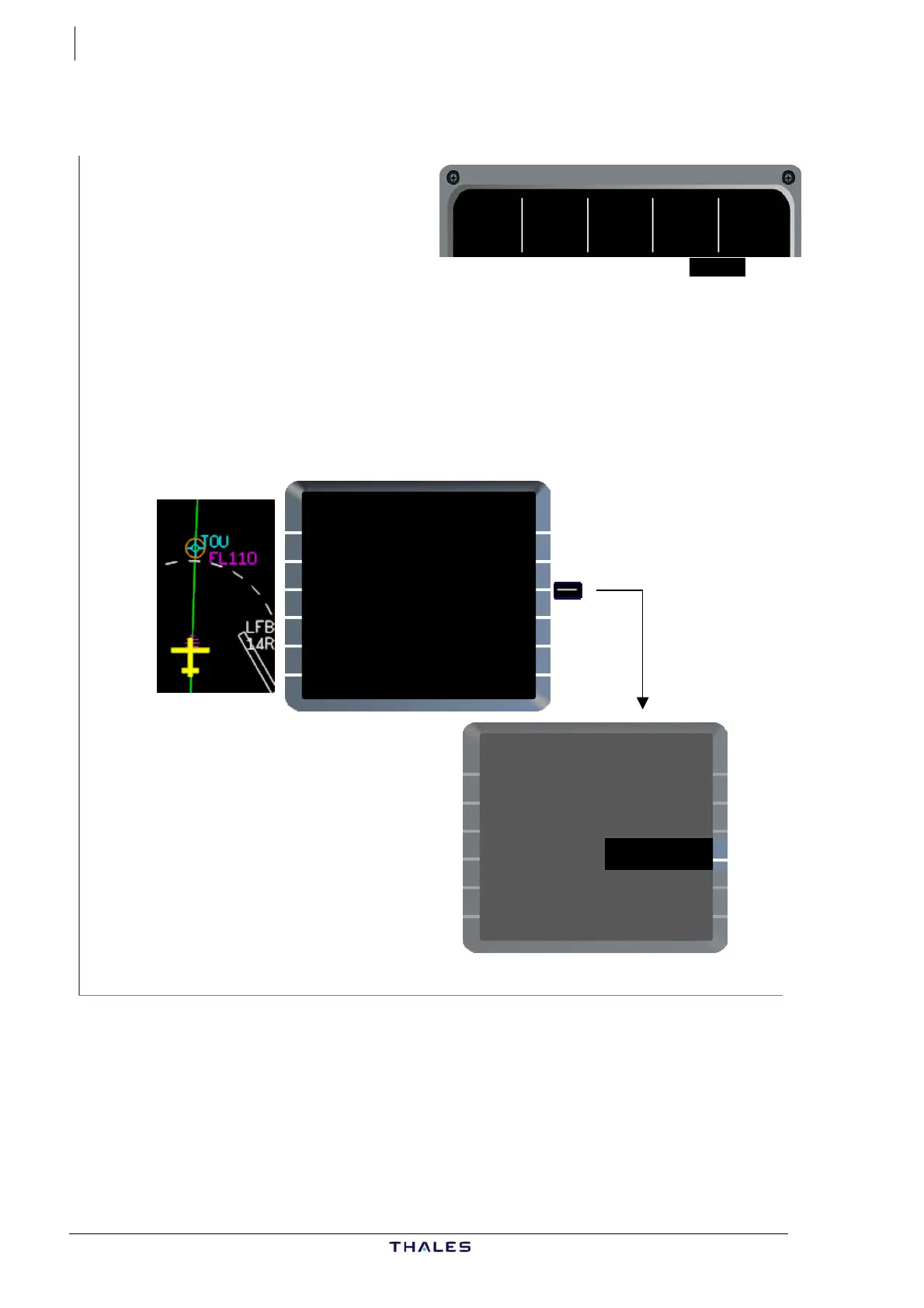

If the ALT constraint is predicted as missed:
On ND an amber circle is
displayed around the WPT.
On MCDU an amber star is
displayed with the predicted
altitude.
Vertical error can be visualized
on VERT REV page at the WPT field [4R].
In the example constraint FL110 at TOU is missed, altitude prediction is
FL106.
Tolerance for ALT CSTR is 250 ft in CLB and DES 150 ft in APP.
FROM THV001 {}
UTC SPD/ALT
D144H} 1303 / 3810
(SPD) BRG357° 3
(LIM) 2203 *250/ FL100
C356° TRK325° 0
TOU 2203 305/*FL106
99
(T/C) 2219 .79/ FL360
FIST5A 52NM
FISTO 2226 " / "
DEST UTC DIST EFOB
EGLL27R 2338 522 3.3
£$
VERT REV AT TOU
EFOB=7.0 EXTRA=0.6
CLB SPD LIM UTC CSTR
250/FL100 [ ]
SPD CSTR ALT CSTR
[ ] FL110
ALT ERROR
-410
ACCESS
<WIND DATA STEP ALTS>
<RETURN
FL 11O
CLB
ALT
AP1
1FD2
A/THR
NAV
THR C
LB
J43126AA 00
