Thales FMGS - RADIO NAV Page Description; Vor1;Freq [1 L] - Freq;Vor2 [1 R]

MULTI PHASE
NAVIGATION management & monitoring 23

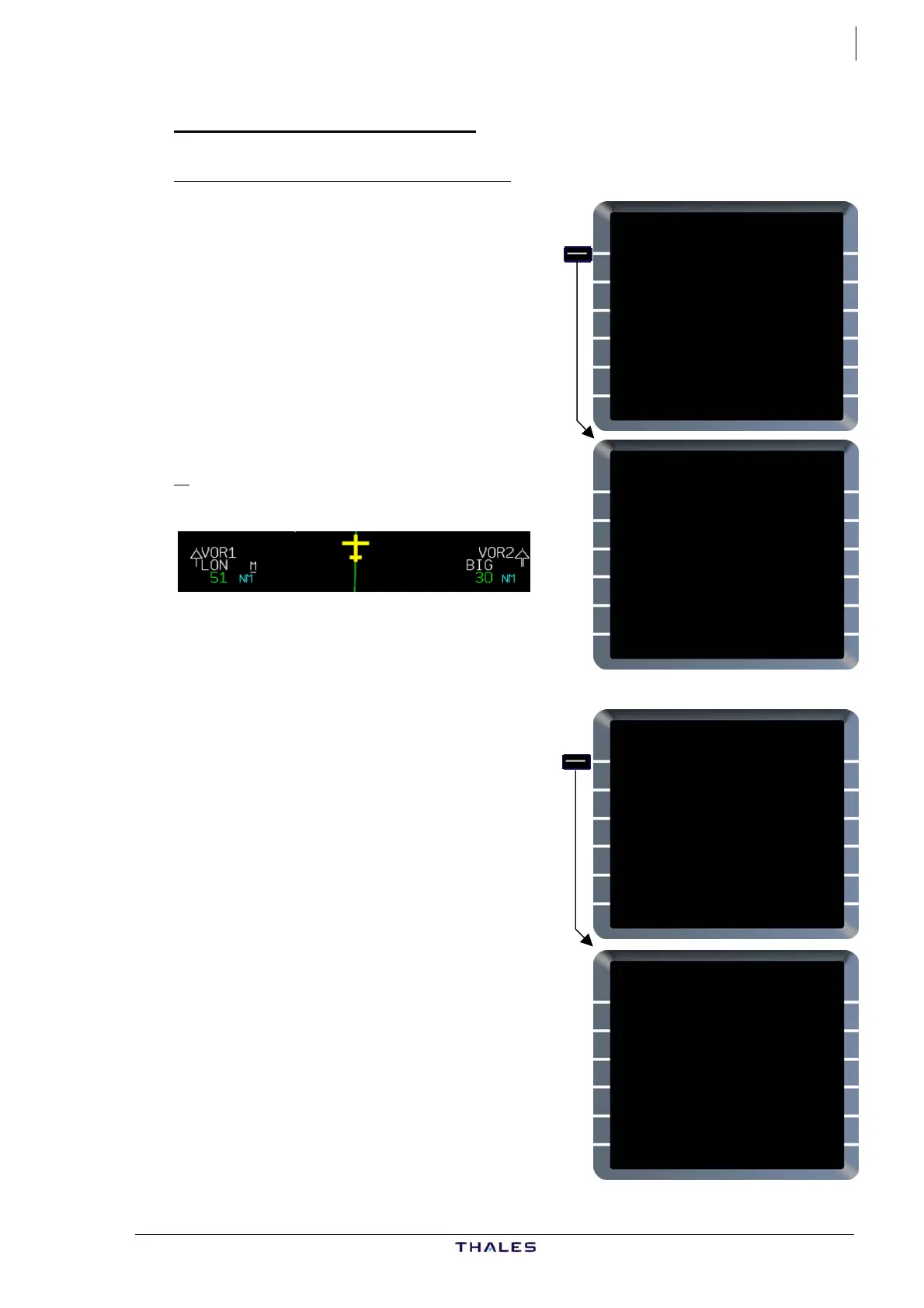

 RADIO NAV page description

VOR1/FREQ [1L] - FREQ/VOR2 [1R]
Compatible navaid types for these
fields are: VOR, DME, TACAN, VOR
DME, VOR TAC.
If an ident is entered, FMGC outputs
the navaid frequency.
Ex: LON.
113,6 is auto-tuned by the FMGC.
Ident of tuned navaids are displayed at
bottom of ND provided VOR keys are
selected on EFIS control panel.
M is shown when navaid is manually
tuned.
Wrong ident may be displayed if navaid
ident signal is unreliable. Use RMP for
identification.
If a frequency is entered, the
identifier (associated with the entered
frequency) for the closest VOR,
VORDME, or VORTAC is displayed.
Note: entering navaid by frequency
may call up an unwanted navaid
selection.
Ex: 113.6.
LON is auto-tuned by the FMGC
because it is the closest VOR DME.
RADIO NAV
VOR1/FREQ FREQ/VOR2
CHW/115.20 115.10/BIG
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
[ ]/[ .] [ ]/[ ]
CRS SLOPE CRS
[ ] -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] [ .]/[ ]
LON
RADIO NAV
VOR1/FREQ FREQ/VOR2
LON/113.60 115.10/BIG
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
[ ]/[ .] [ ]/[ ]
CRS SLOPE CRS
[ ] -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] [ .]/[ ]
RADIO NAV
VOR1/FREQ FREQ/VOR2
BIG/115.10 115.10/BIG
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
IRR/110.30 [ ]/[ ]
CRS SLOPE CRS
F273 -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] [ .]/[ ]
113.6
RADIO NAV
VOR1/FREQ FREQ/VOR2
LON/113.60 115.10/BIG
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
IRR/110.30 [ ]/[ ]
CRS SLOPE CRS
F273 -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] [ .]/[ ]
113.6
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
