Thales FMGS - To Enter or Modify a SPD CSTR at a WPT

MULTIPHASE
VERTICAL F-PLN management 7
 To enter or modify a SPD CSTR at a WPT

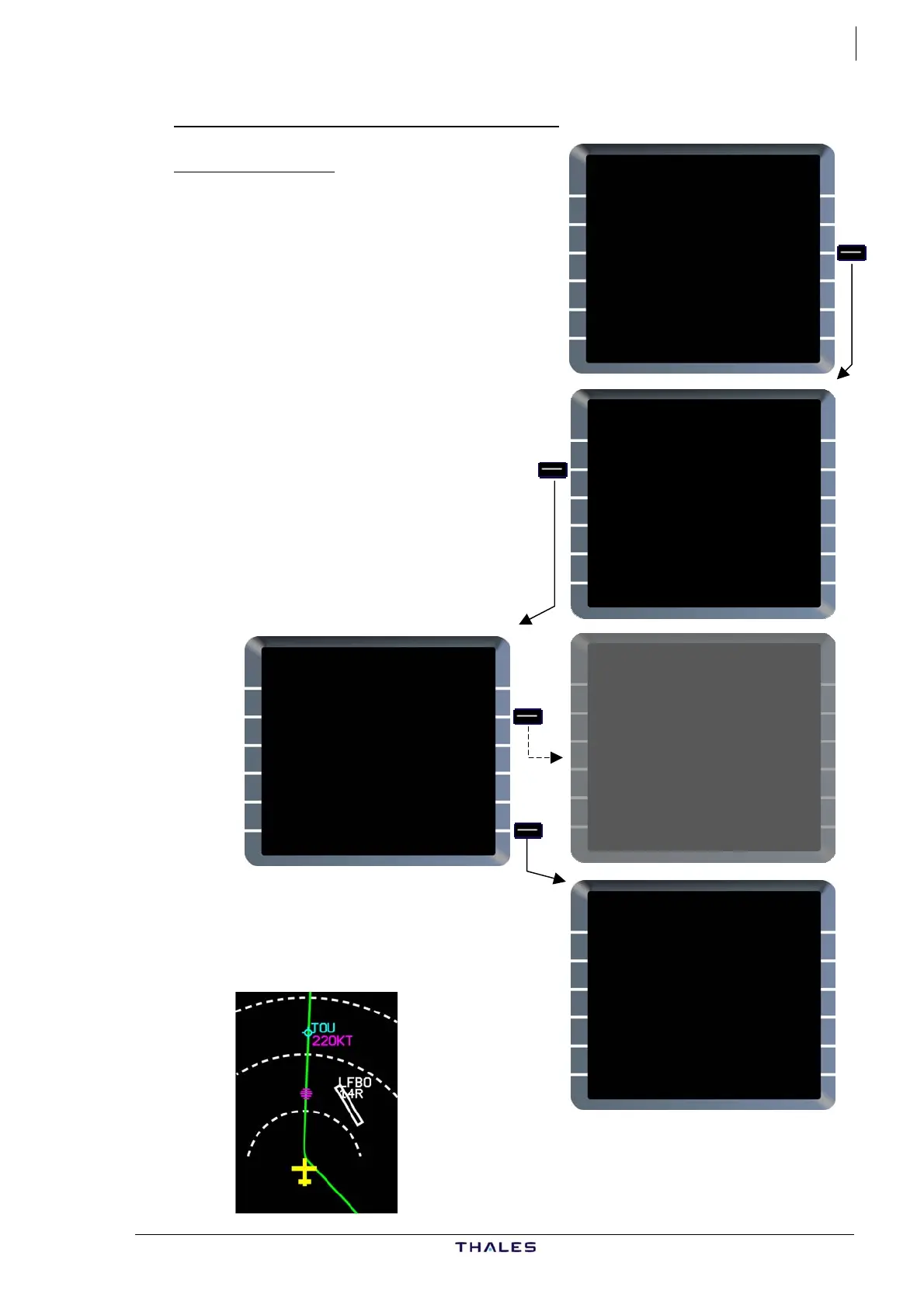

Climb SPD CSTR
From F-PLN page, access VERT
REV page by right LSK, at revise
point.
Ex: CLB SPD to be limited to 220
KT to TOU
SPD CSTR [3L]................Enter
A TMPY F-PLN containing the SPD
CSTR is created. SPD at revise
point is preceded by * symbol
(magenta).
If selected, VERT REV page at
revise point shows title and
entered value yellow.
If speed is managed SPD at all
WPTs before the revise point are
superseded by the new speed
constraint if more restrictive.
In the example speed at SPD LIM
is 220.
TMPY INSERT [6R] ........ Press
ND shows CSTR speed in magenta
at revise point, if CSTR p/b pushed
on EFIS control panel.
FROM THV001 {}
UTC SPD/ALT
D144H} 0300 / 3810
(SPD) BRG339° 10
(LIM) 1144 *250/ FL100
C356° TRK325° 0
TOU 1144 305/ FL123
37
(T/C) 1150 .79/ FL360
FIST5A 10NM
FISTO 1151 " / "
DEST UTC DIST EFOB
EGLL27R 1302 529 4.3
£$
VERT REV AT TOU
EFOB=7.1 EXTRA=1.3
CLB SPD LIM UTC CSTR
250/FL100 [ ]
SPD CSTR ALT CSTR
[ ] [ ]
ACCESS
<WIND DATA STEP ALTS>
<RETURN
220
VERT REV AT TOU
EFOB=7.0 EXTRA=1.3
CLB SPD LIM UTC CSTR
250/FL100 [ ]
SPD CSTR ALT CSTR
220 [ ]
STEP ALTS>
TMPY
{F-PLN
FROM TMPY THV001 {}
UTC SPD/ALT
D144H} 0300 / 3810
C356° BRG325° 8
TOU 1138 305/ FL123
TRK357° 37
(T/C) 1144 .79/ FL360
FIST5A 10
FISTO 1145 " / "
UN874 84M
FOUCO 1157 " / "
TMPY TMPY
{ERASE INSERT*
$£
FROM THV001 {}
UTC SPD/ALT
D144H} 0300 / 3810
(SPD) BRG339° 10
(LIM) 1145 *220/ FL100
C356° TRK325° 0
TOU 1145 *220/ FL123
37
(T/C) 1153 .79/ FL360
FIST5A 10NM
FISTO 1154 " / "
DEST UTC DIST EFOB
EGLL27R 1306 529 4.2
£$
