Thales FMGS - F-PLN Key; FUEL PRED Key; RAD NAV Key

FMS GENERAL DESCRIPTION
8 MCDU

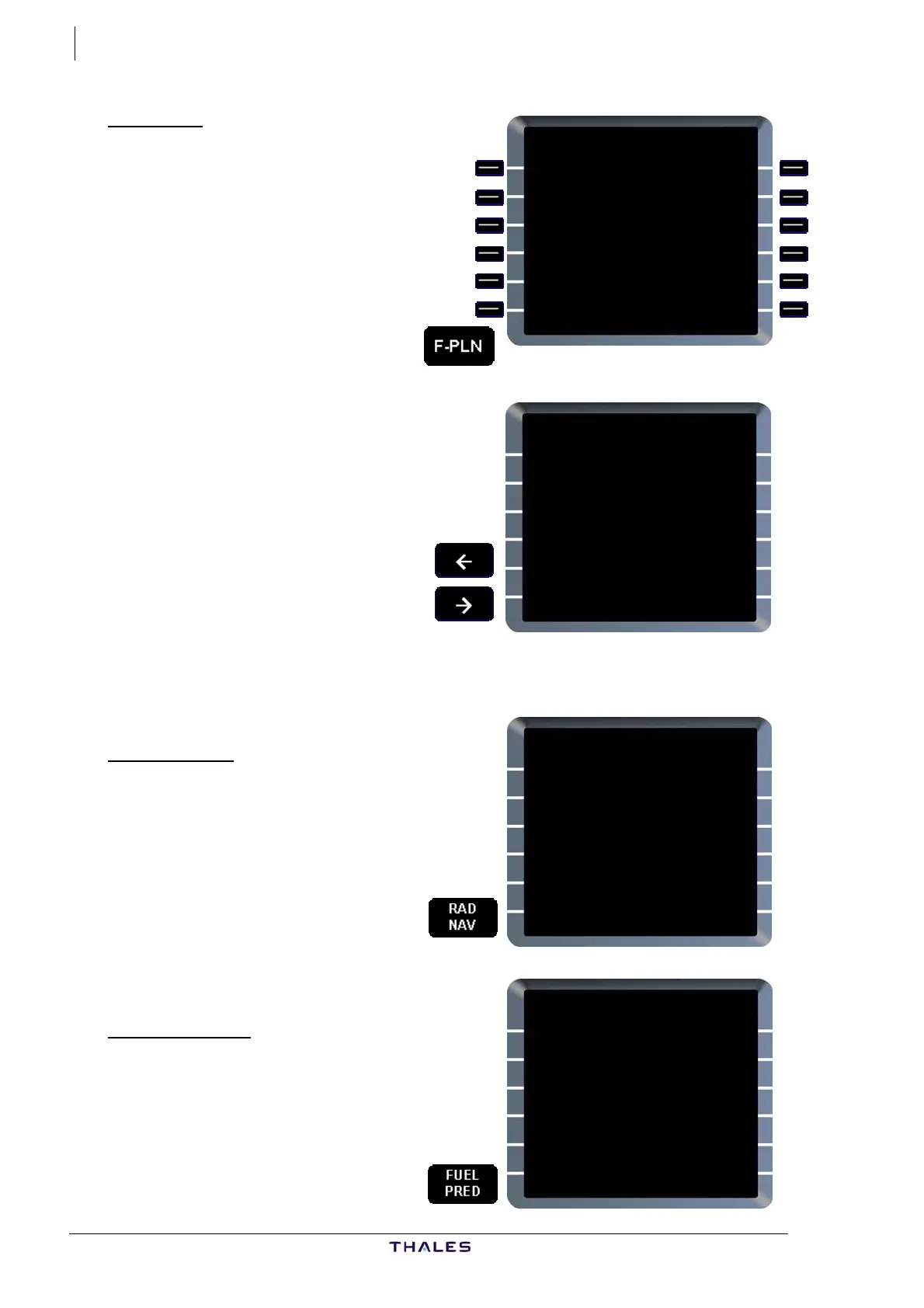

 F-PLN key
Pressing the F-PLN key displays
the F-PLN A page.
The horizontal slew keys access
F-PLN B page.
The Left Line Select keys a
Lateral F-PLN revisions.
ccess
The right Line Select keys
access Vertical F-PLN revisions.
FROM THV001 {}
UTC SPD/ALT
4000 } 1837 / 3990
C311° BRG282° 6
INTCPT 1839 250/ FL94
(SPD) TRK356° 1
(LIM) 1839 *250/ FL100
C356° 8
TOU 1841 305/*FL152
FIST4A 17NM
ALIVA 1844 " / FL229
DEST UTC DIST EFOB
EGLL27R 1959 535 4.3
£$
FROM THV001 {}
EFOB T WIND
4000 } 7.3 180°/008
C311° BRG282° 6NM
INTCPT 7.2 180°/018
(SPD) TRK356° 1
(LIM) 7.1 180°/020
C356° 8
TOU 7.0 226°/025
FIST4A 17NM
ALIVA 6.8 275°/032
DEST UTC DIST EFOB
EGLL27R 2002 535 4.3
£$
RADIO NAV
VOR1/FREQ FREQ/VOR2
TOU/117.70 117.70/TOU
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
IRR/110.30 [ ]/[ ]
CRS SLOPE CRS
F273 -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] [ .]/[ ]

RAD NAV key
Pressing the RAD NAV key
displays the RADIO NAV page.
The RAD NAV page displays the
navaids tuned by the FMS or
selected by the pilot.
FUEL PRED
AT UTC EFOB
EGLL 2003 4.5
EHAM 2044 2.6
GW /CG FOB
65.1 /25.0 7.06/FF*FQ
RTE RSV/% CRZTEMP/TROPO
0.1/ 5.0 -50°/36090
FINAL/TIME
1.0/0030
EXTRA/TIME
1.4/0040

FUEL PRED key
Pressing the FUEL PRED key
displays the FUEL PRED page.
The FUEL PRED page displays
fuel and time predictions based
on the active flight plan and the
current gross weight (GW) and
fuel on board (FOB).
