Thales FMGS - If WPT Is Not in ACTIVE F-PLN

32
MULTIPHASE
LATERAL F-PLN management
J43126AA 00
© THALES AVIONICS S.A.
AIRBUS A318/319/320/321
 If WPT is not in ACTIVE F-PLN
Required WPT [1L].................
........................... Enter/Press
Enter new WPT via scratchpad in [1L].
Ex: “Cleared present position direct to
AMB”; enter AMB [1L].
In the example DUPLICATE NAMES page
is displayed as several AMB
WPT/Navaids are stored in the NAVdb.
See 2.2 in this chapter.

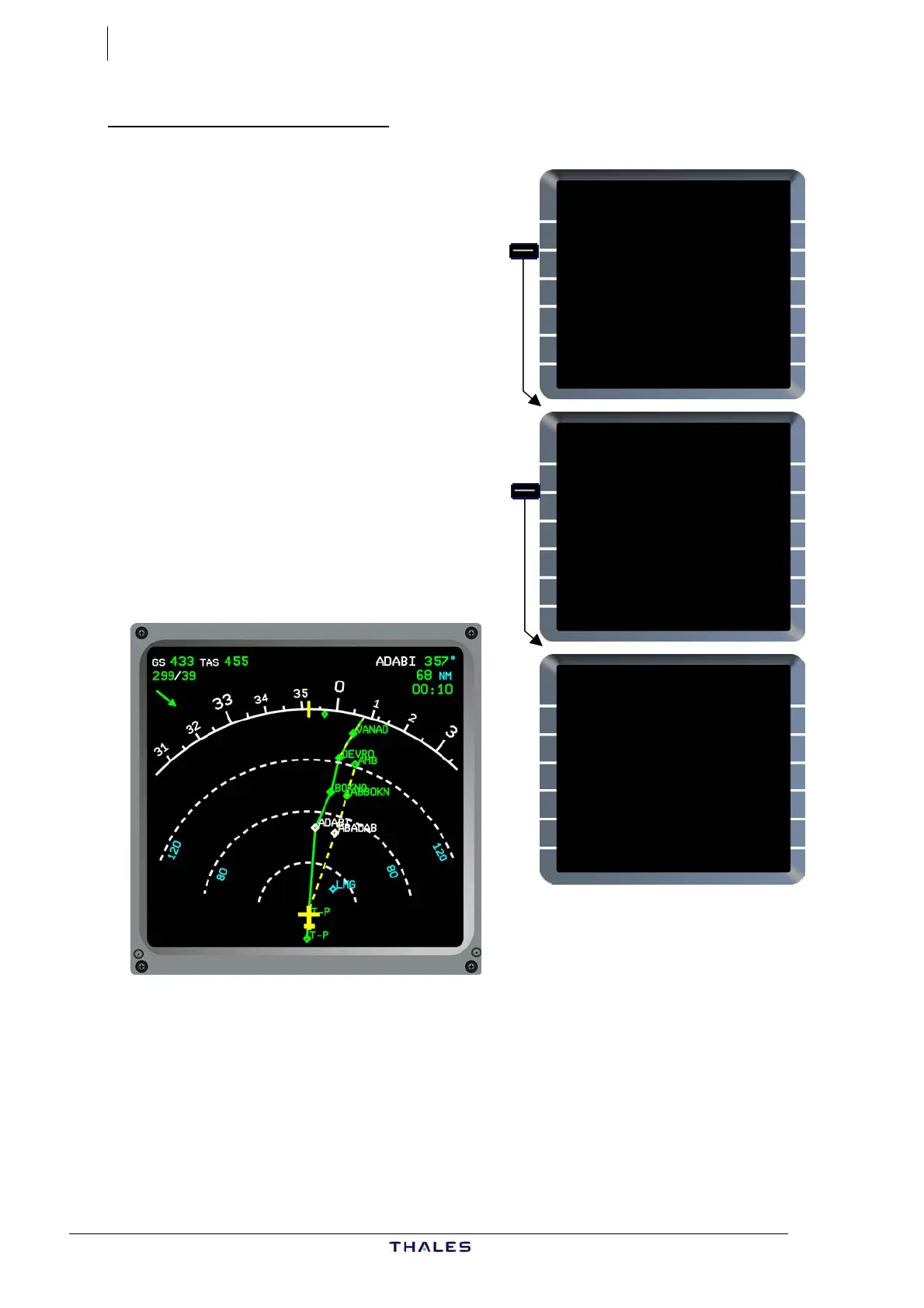

TMPY DIR TO page is displayed yellow,
Check intended DIR TO track (dashed
yellow) is correct on ND.
A DISCONTINUITY is created, since the
DIR TO WPT is not in original F-PLN.
DIR TO
WAYPOINT UTC DIST
[ ] ---- ---
F-PLN WPTS
{BOKNO DIRECT TO
WITH
{DEVRO ABEAM PTS
RADIAL IN
{VANAD [ ]°
RADIAL OUT
{VADOM [ ]°
AMB £$
DUPLICATE NAMES
120NM LAT/LONG FREQ
*AMB 47N/001E 341.0
121NM
*AMB 47N/001E 113.70
5001NM
*AMB 01S/078W 360.0
6113NM
*AMB 33S/070W 116.10
9095NM
*AMB 27S/152W 114.10
<RETURN
£
DIR TO
WAYPOINT UTC DIST
AMB 1540 121
F-PLN WPTS
{BOKNO DIRECT TO }
WITH
{DEVRO ABEAM PTS
RADIAL IN
{VANAD [ ]°
RADIAL OUT
{VADOM [ ]°
DIR TO DIR TO
{ERASE INSERT*
£$
