Thales FMGS - Before Approach Activation; EFIS Display; Energy Circle; Radio Navaids

FLIGHT PHASES
APPROACH 5
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
7.2. BEFORE APPROACH ACTIVATION
The following actions should be performed at the appropriate time, as
per SOPs (initial approach or before).

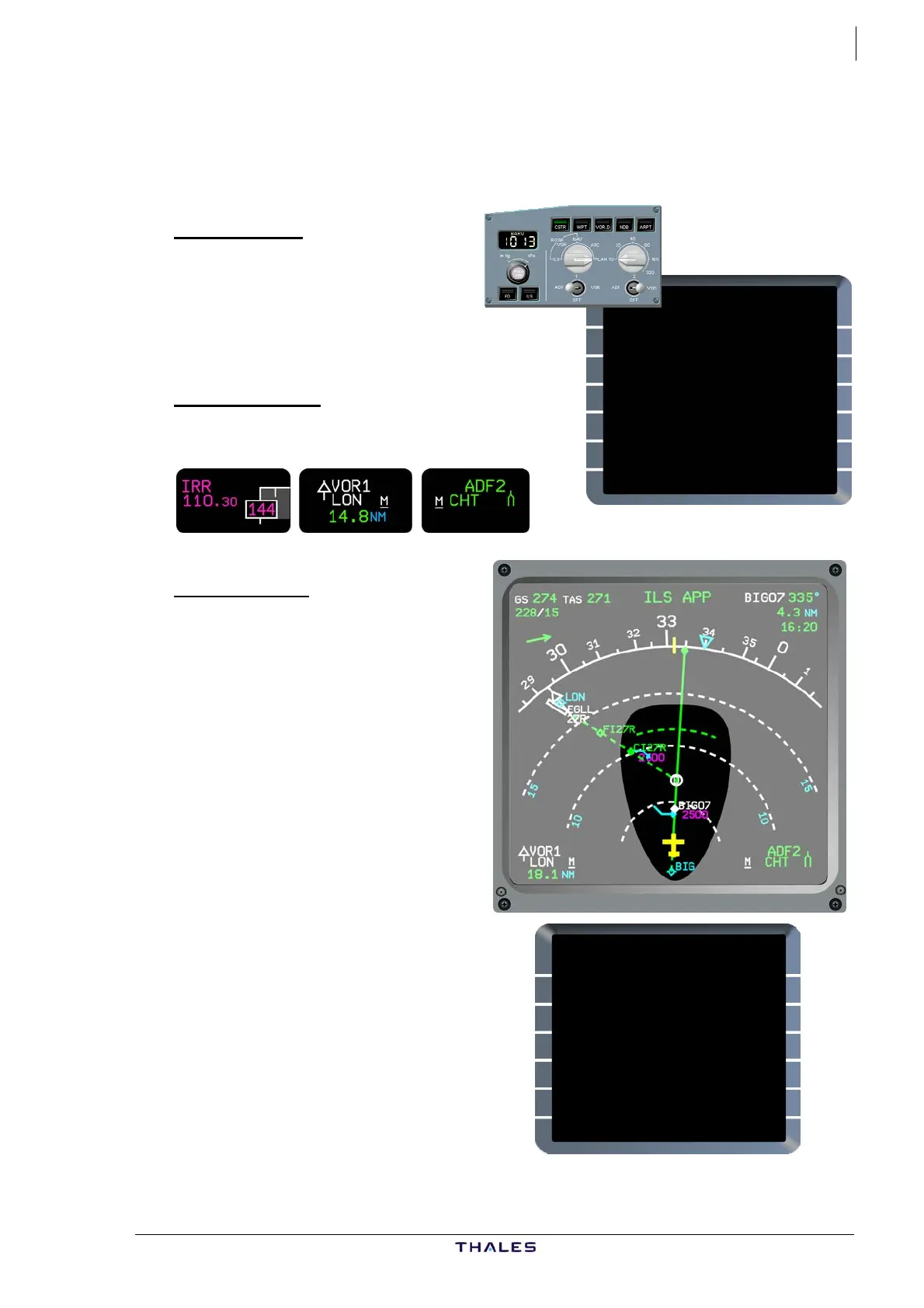

 EFIS display
Select as necessary for
approach:
− Mode / Range,
− CSTR on,
− ILS or LS (as installed) on.
 Radio navaids
Check according to selection on
RAD NAV page.
 Energy circle
REQUIRED DISTANCE TO LAND
is computed:
− During DESCENT and
APPROACH phases when
within 180 NM of destination,
and,
− when in selected lateral
mode (HDG or TRK).
For all A/C under these
conditions REQUIRED DISTANCE
TO LAND is shown on ND by
energy circle as a dashed green
arc (ARC or ROSE mode).
This distance is computed from
the energy state.
For A/C without GPS: additional
data are displayed on PROG
page [Line 5]:
− REQD DIST TO LAND,
− DIR DIST TO DEST.
RADIO NAV
VOR1/FREQ FREQ/VOR2
&LON/113.60 115.10/BIG
CRS CRS
[ ] [ ]
ILS /FREQ CHAN/ MLS
IRR/110.30 [ ]/[ ]
CRS SLOPE CRS
F273 -.- [ ]
ADF1/FREQ FREQ/ADF2
[ ]/[ .] 277.0/CHT
ADF 2 BFO}
APPROACH THV001
CRZ OPT REC MAX
----- ----- FL393
<REPORT
UPDATE AT
*[ ]
BRG /DIST
293° /16.7 TO EGLL27R
REQD DIST TO LAND= 12NM
DIR DIST TO DEST= 161NM
REQUIRED ACCUR ESTIMATED
1.00NM HIGH 0.28NM
A/C without GPS
