Thales FMGS - Description

FMS GENERAL DESCRIPTION
MCDU 3

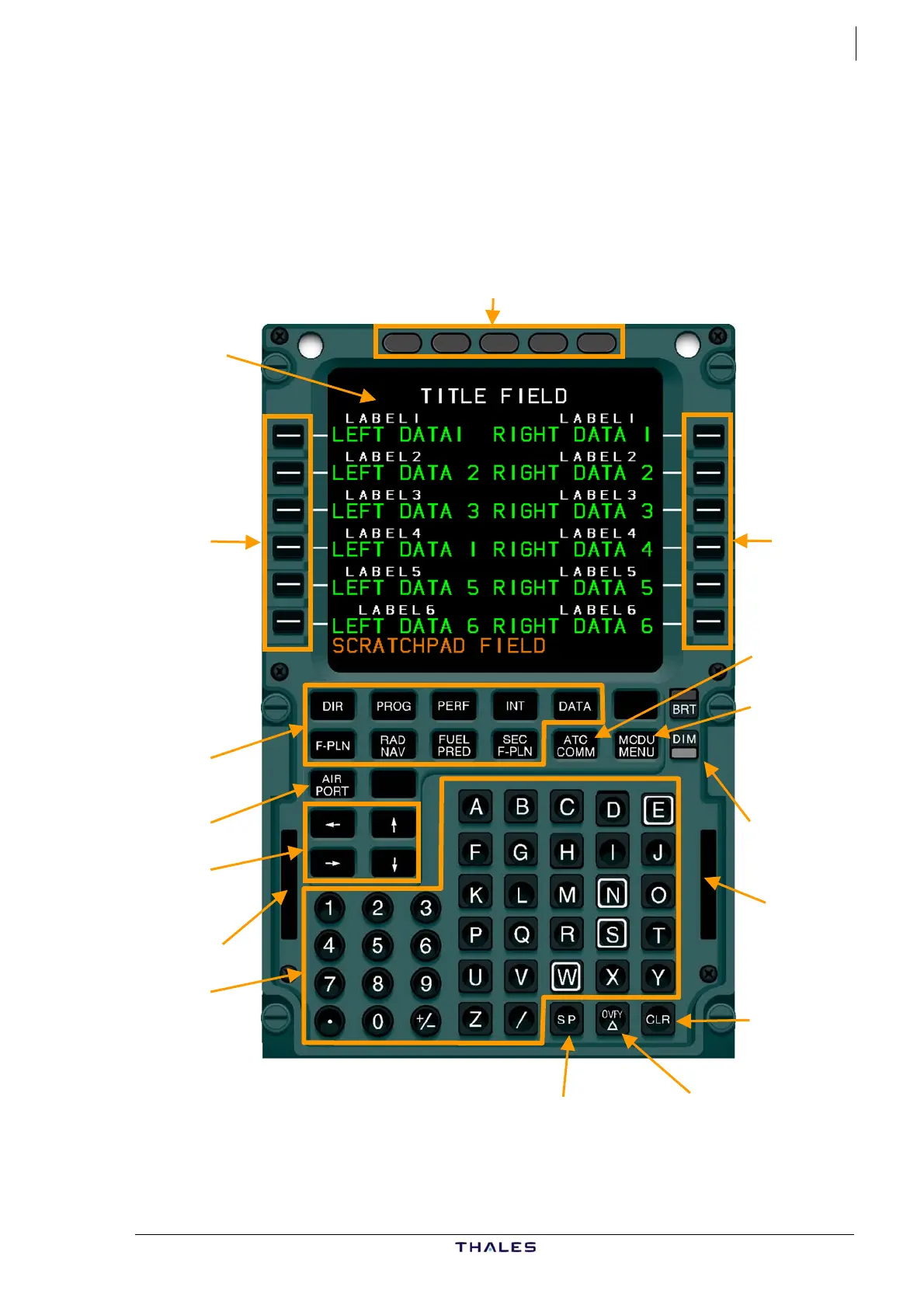

4.1. DESCRIPTION
Refer to fold-out at back of Guide.
This chapter presents a general description of the MCDU. More details
are given in later chapters.
T
OP ANNUNCIATORS
LINE SELECT
KEYS
FRONT
ANNUNCIATOR
ON/OFF
BRIGHTNESS
ADJUSTMENT
KEYS
DISPLAY
SCREEN
LINE SELECT
KEYS
PAGE KEYS
AIRPORT KEY
SLEW KEYS
ALPHA NUMERIC
KEYS
CLEAR KE
Y
MULTI
PURPOSE KEY
ATSU KEY
SPACE KE
Y
OVERFLY KEY
AIRBUS A318/319/320/321
