 OFFSET insert
OFFSET [1L]...................Enter
Enter desired Offset distance (NM)
with direction (L or R).
Ex: 5L (or L5)
OFFSET title page becomes yellow.
TMPY [6L] ......................Press
F-PLN page is displayed as TMPY
OFFSET (yellow).

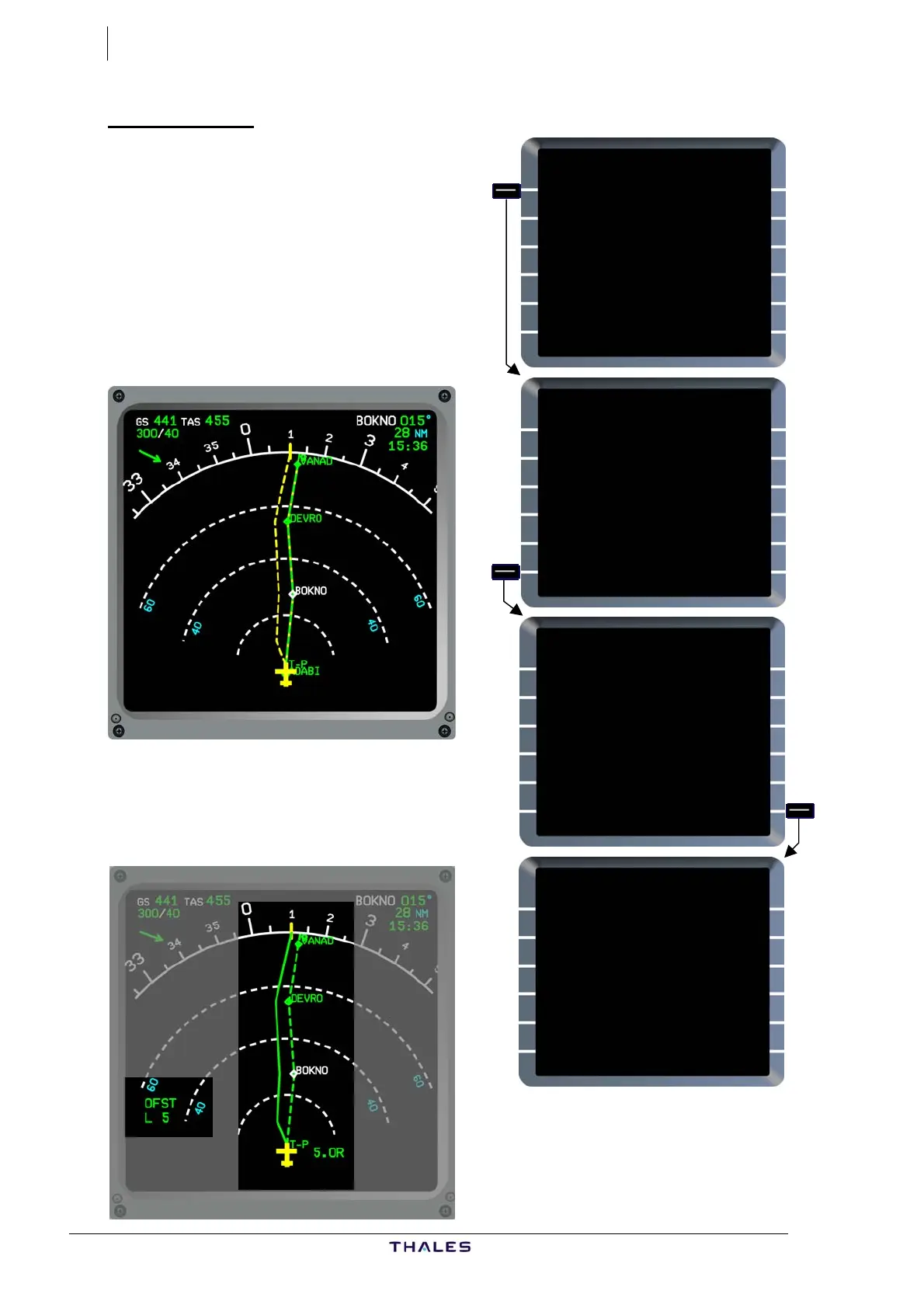

On ND TMPY F-PLN is displayed dashed
yellow.
If correct:
TMPY INSERT [6R].........Press
F-PLN page title is OFST (FLT number
is no longer displayed).
On ND: new active track is
shown by a continuous green
line, original track by a dashed
green line.
OFST xx is indicated.
FROM OFST {}
UTC SPD/ALT
T-P 1532 / FL360
BRG015° 28
BOKNO 1536 .79/ FL360
UN874 TRK007° 27
DEVRO 1540 " / "
UN874 22
VANAD 1543 " / "
UN874 45NM
VADOM 1549 " / "
DEST UTC DIST EFOB
EGLL27R 2113 338 3.9
£$
FROM TMPY OFST {}
UTC SPD/ALT
T-P 1532 / FL360
BRG015° 28
BOKNO 1536 .79/ FL360
UN874 TRK007° 27
DEVRO 1540 " / "
UN874 22
VANAD 1543 " / "
UN874 45NM
VADOM 1549 " / "
TMPY TMPY
{ERASE INSERT*
£$
OFFSET FROM PPOS
OFFSET
L05
TMPY
<F-PLN
OFFSET FROM PPOS
OFFSET
[ ]
<RETURN
5L
