Thales FMGS - Navigation Lateral Symbols

APPENDICES
ND SYMBOLS 3

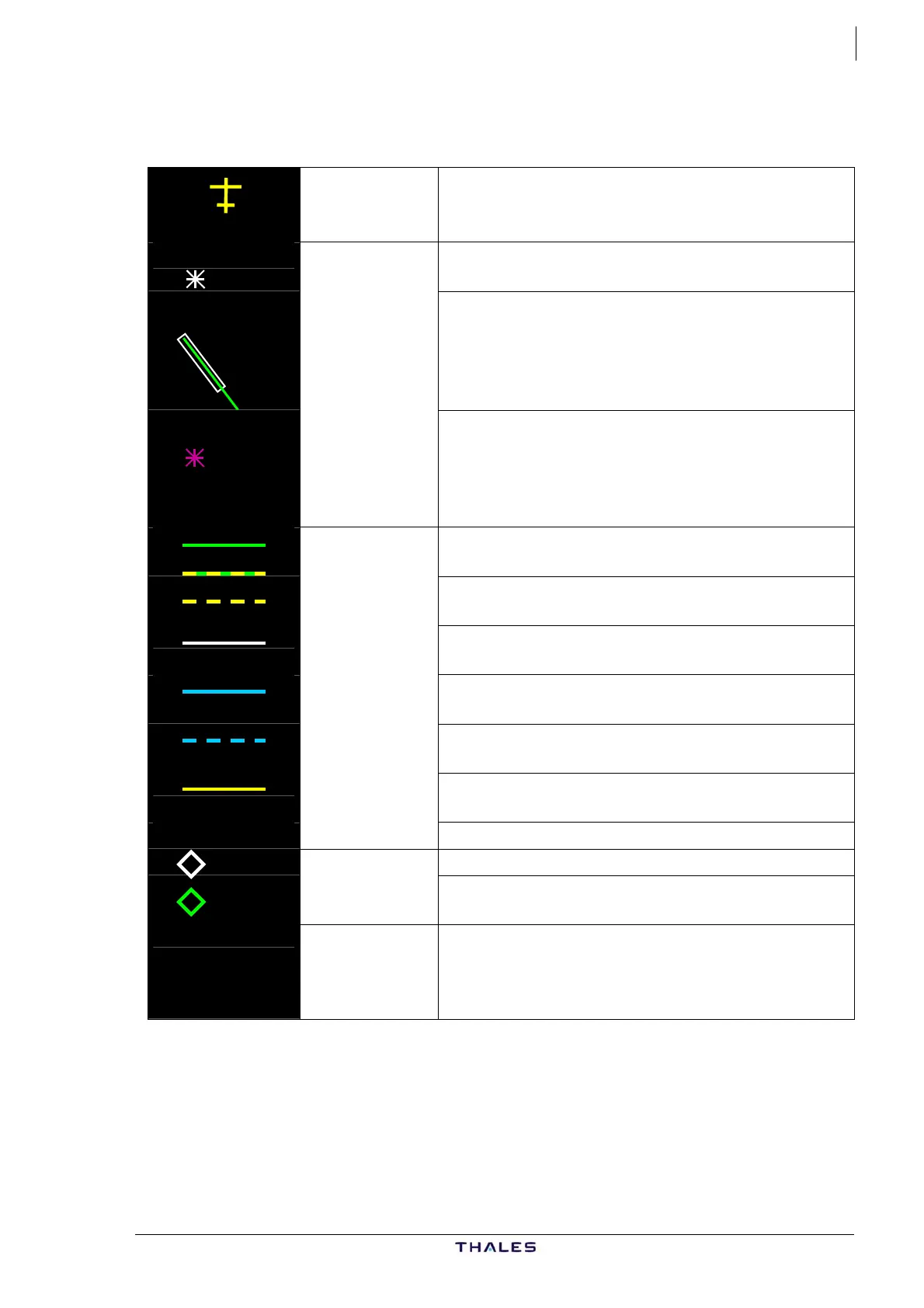

5.1. NAVIGATION LATERAL SYMBOLS
A/C symbol
If the runway is not specified, airport is
shown by a star with ARPT ident (white).
If the runway is specified airport is shown
by an oriented runway symbol (white).
The runway is drawn to scale (paved
length) if the selected range is 10,20 or
40 NM.
Airport
The airports that are not displayed as
part of the flight plan may be called for
display by selecting ARPT on the EFIS
control panel. They are shown by a
magenta star.
ACTIVE F-PLN is shown by a continuous
green line when NAV mode is engaged.
TMPY F-PLN shown by a dashed yellow
line.
SEC F-PLN is shown by a continuous
white line.
Missed approach procedure is shown by a
continuous blue line.
ALTN F-PLN is shown by a dashed blue
line.
EOSID (when available) is shown by a
continuous yellow line.
F-PLN
Cross track error.
The TO WPT with label is shown in white. Waypoints
The en-route WPTs with label are shown
in green.
TRK/DIST If CSTR is not selected on EFIS control
panel, TRK and DIST from the map
reference point to the next F-PLN WPT
are displayed in magenta.
EGLL
LFBD
LFBO
14R
2.OL
PERIG
DIBAG
BIG
336
7NM
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
