Thales FMGS - Overview; RAD NAV Page

To Next Page

To Previous Page

MULTI PHASE

NAVIGATION management & monitoring

AIRBUS A318/319/320/321

J43126AA 00

RADIO NAV

VOR1/FREQ FREQ/VOR2

LON/113.60 113.60/LON

CRS CRS

[ ] [ ]

ILS /FREQ CHAN/ MLS

[ ]/[ .] [ ]/[ ]

CRS SLOPE CRS

[ ] -.- [ ]

ADF1/FREQ FREQ/ADF2

[ ]/[ .] [ .]/[ ]

STBY

RADIO NAV

VOR1/FREQ FREQ/VOR2

CRS CRS

ILS /FREQ CHAN/ MLS

CRS SLOPE CRS

ADF1/FREQ FREQ/ADF2

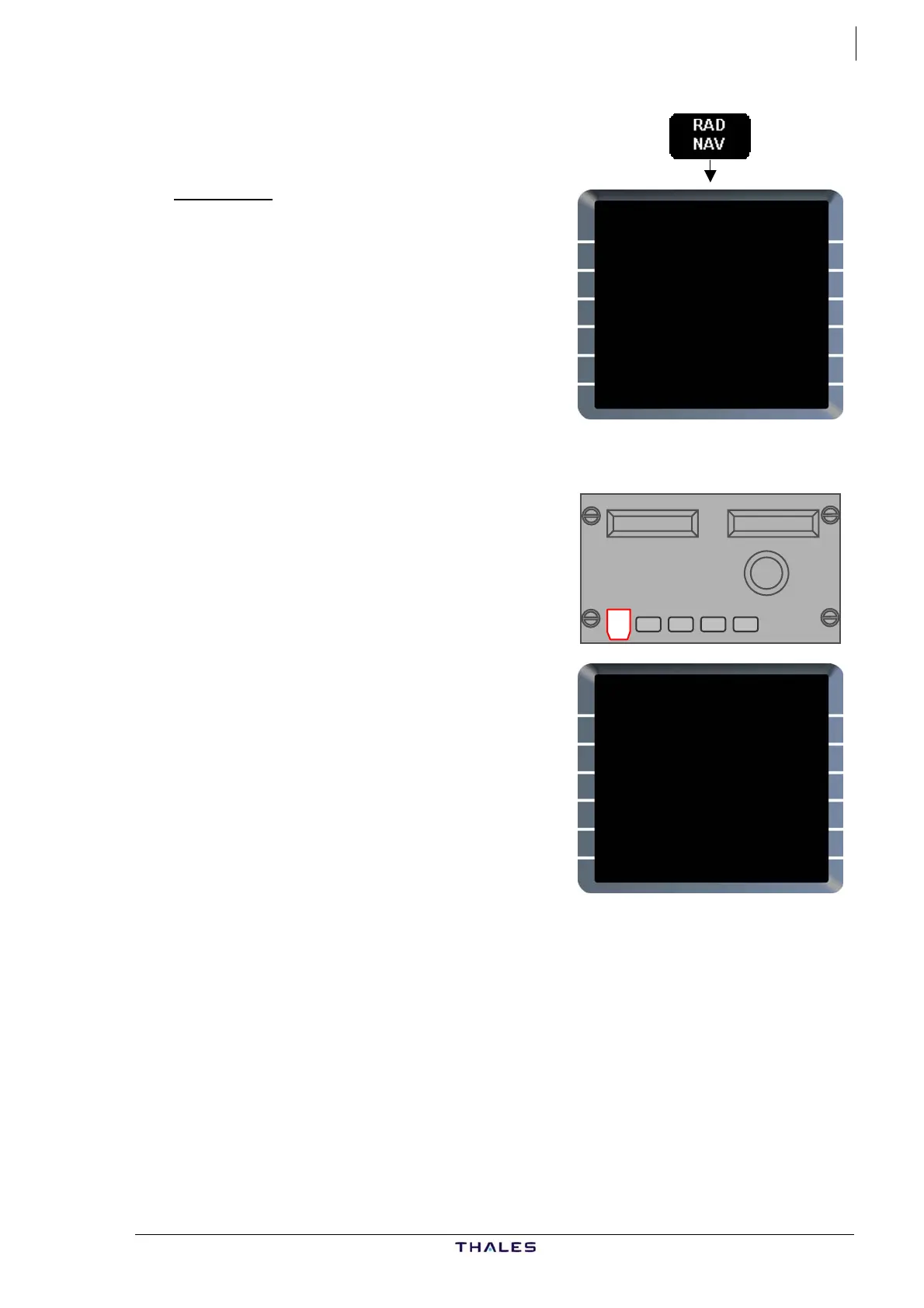

7.2. RAD NAV page



Overview

The RAD NAV page is accessed via RAD

NAV key and displays ident, frequency

and course of navaids selected

automatically by the FMGC or manually

by pilot.

If one or both RMPs in manual mode:

− All fields are blanked,

− Title lines are displayed but entry is

not possible.

Fields [3R] MLS & [4R] ADF2 are operator options. If not activated

field(s) is (are) blank.
