MULTIPHASE
LATERAL F-PLN management 31
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
If correct:
DIR TO INSERT [6R]... Press
F-PLN page is displayed
ACTIVE WPT ............. Check
DIR TO track is now the ACTIVE leg
(solid green) of F-PLN, starting at the
Turning Point (T-P).
If not correct:
DIR TO ERASE [6L]........ Press
Make appropriate revision.

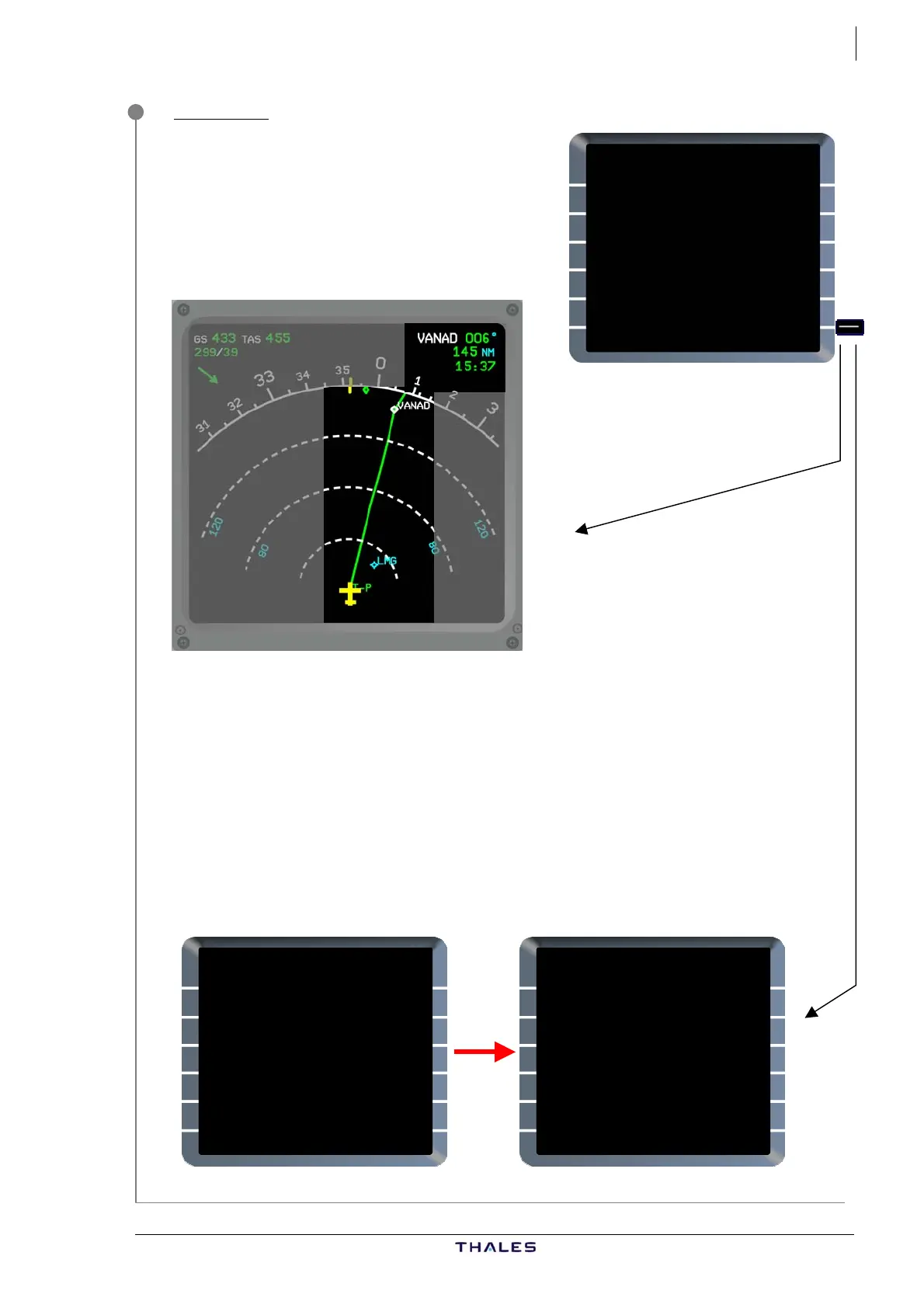

F-PLN page:
If selected on opposite side, TMPY F-PLN
is displayed with DIR TO leg from T-P to
selected WPT.
When DIR TO is inserted, the DIR TO
WPT becomes the ACTIVE WPT (white)
of the ACTIVE F-PLN.
DIR TO
WAYPOINT UTC DIST
VADOM 1543 145
F-PLN WPTS
{BOKNO DIRECT TO
WITH
{DEVRO ABEAM PTS }
RADIAL IN
VANAD 200° }
RADIAL OUT
{VADOM [ ]°
DIR TO DIR TO
{ERASE INSERT*
£$
FROM TMPY THV001 {}
UTC SPD/ALT
T-P 1523 / FL360
BRG006° 145
VANAD 1536 .79/ FL360
UN874 TRK022° 45
VADOM 1543 " / "
UN874 27
BAMES 1546 " / "
UT191 17NM
PODEM 1549 " / "
DIR TO DIR TO
{ERASE INSERT*
£$
FROM THV001 {}
UTC SPD/ALT
T-P 1523 / FL360
BRG006° 145
VANAD 1536 .79/ FL360
UN874 TRK022° 45
VADOM 1543 " / "
UN874 27
BAMES 1546 " / "
UT191 17NM
PODEM 1549 " / "
DEST UTC DIST EFOB
EGLL27R 1625 406 4.3
£$
