Thales FMGS - Page 259

FLIGHT PHASES
APPROACH 19
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
A/C WITHOUT GPS
Example below is given for VOR
14R at LFBO

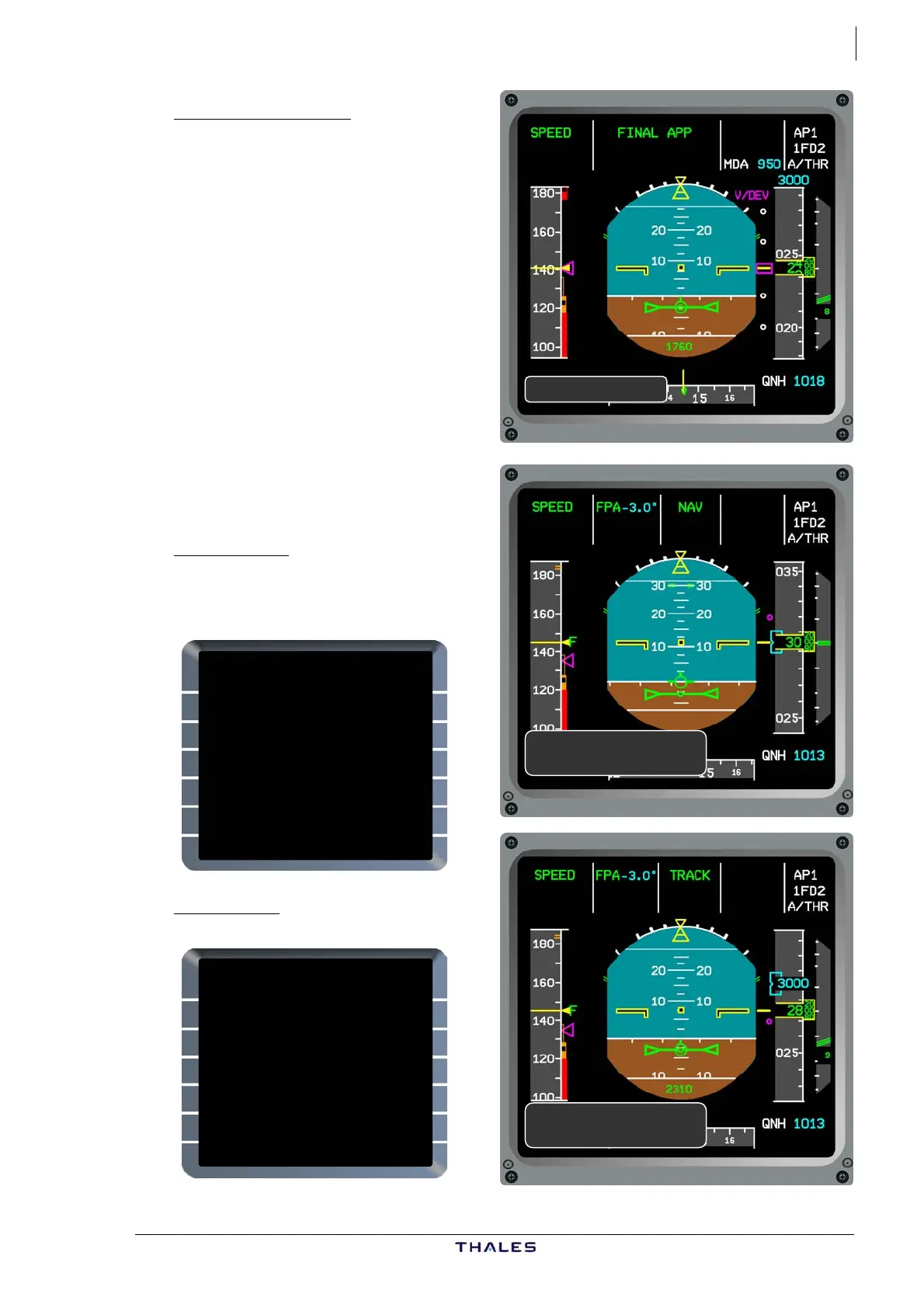

PFD:
− FMA provides guidance status,
− Speed scale shows VAPP when
speed is managed,
− VDEV symbol is displayed by a
magenta rectangle if FINAL
APP mode or by a magenta
circle if vertical mode is
selected,
− If accuracy is high, VDEV can
be used for vertical deviation
information.
MCDU:
F-PLN page:
WPTs distance, altitude passing
and path are displayed and may
be compared to approach chart.
PROG page
VDEV is displayed in [2R].
MANAGED
LATERAL MANAGED
VERTICAL SELECTED
LATERAL SELECTED
VERTICAL SELECTED
FROM THV001 {}
UTC SPD/ALT
FD14R 2051 / 3000
BRG145° 1-3.0°
20V02 2109 141/ *1860
C145° TRK145° 5-3.0°
MD14R 2111 141/ 540
C145 5
MD105{ ---- ---/ *900
C018° 11NM
INTCPT ---- ---/ -----
DEST UTC DIST EFOB
LFBO14R 2111 6 7.1
£$
APPROACH THV001
CRZ OPT REC MAX
----- ----- FL397
<REPORT VDEV=+ 120 FT
UPDATE AT
*[ ]
BRG /DIST
145° /7.3 TO LFBO14R
REQUIRED ACCUR ESTIMATED
0.50NM HIGH 0.28NM
