FLIGHT PHASES
GO-AROUND 11
To divert to EHAM:
LAT REV.........................Select
Select LAT REV at the WPT from
which diversion is intended.
ENABLE ALTN [4L]......... Press
Selection of this prompt enters ALT
F-PLN as TMPY F-PLN, after the F-
PLN DISCONTINUITY.
Provided an ALTN F-PLN has been
defined ENABLE ALTN prompt is
available.
It is not available at a missed appr
WPT until GA PHASE initiated.

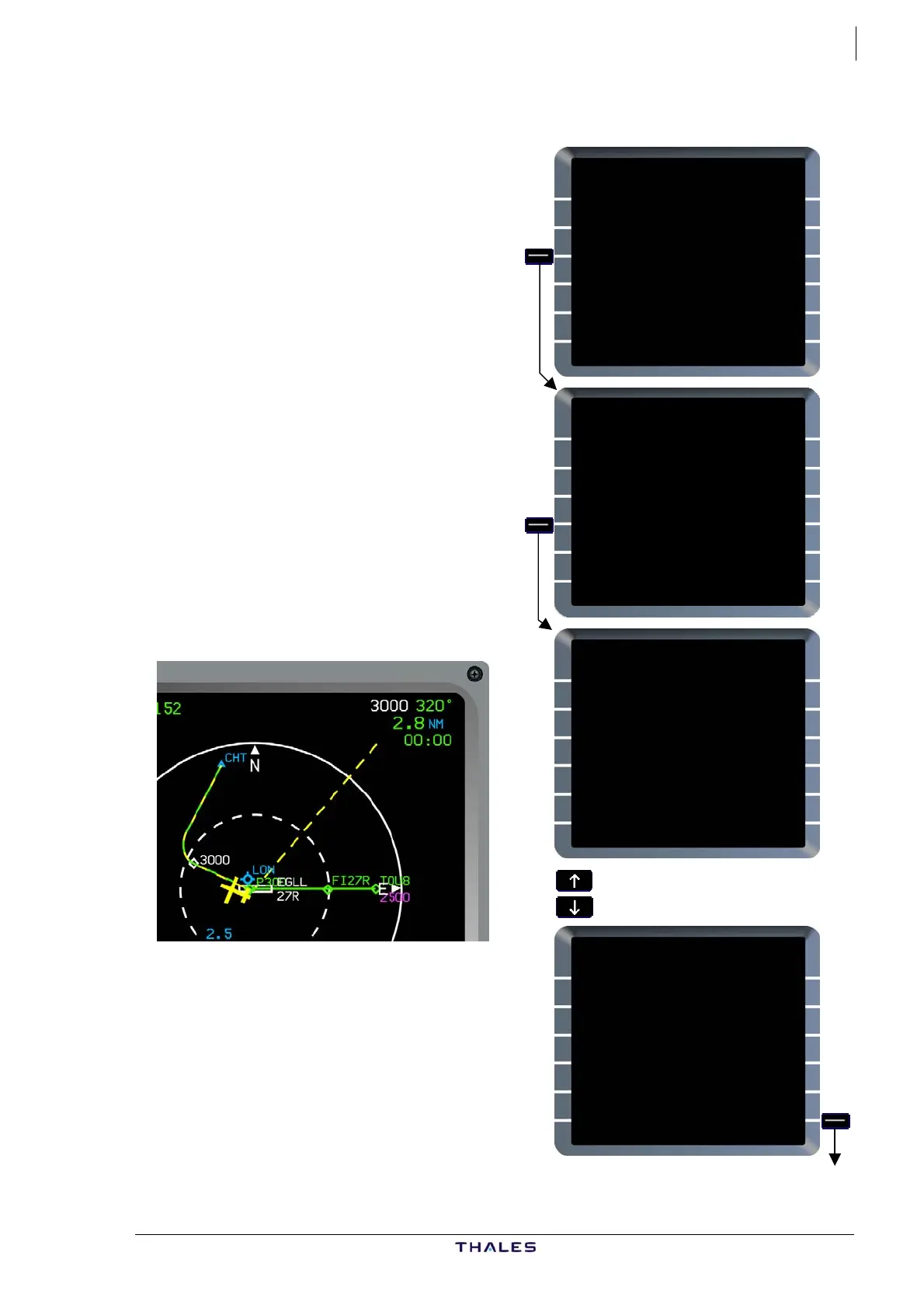

ND shows ALTN route (dashed
yellow) departing from its origin,
EGLL.
FROM TMPY THV001 {}
UTC SPD/ALT
1580 ---- / -----
C320° BRG320° 3
3000 ---- ---/ -----
TRK017° 7
CHT ---- ---/ -----
---F-PLN DISCONTINUITY--
EGLL ---- ---/ -----
TMPY TMPY
{ERASE INSERT*
£$
LAT REV FROM CHT
51°37.4N/000°31.1W
NEXT WPT
<HOLD [ ]
ENABLE NEW DEST
{ALTN [ ]
AIRWAYS>
<RETURN
FROM THV001 {}
UTC SPD/ALT
1580 ---- / -----
C320° BRG320° 3
3000 ---- ---/ -----
TRK017° 7
CHT ---- ---/ -----
---F-PLN DISCONTINUITY--
CI27R ---- ---/ *2500
DEST UTC DIST EFOB
EGLL27R ---- 31 -----
£$
TMPY THV001 {}
UTC SPD/ALT
---F-PLN DISCONTINUITY--
EGLL ---- / -----
TRK042° 21
BPK ---- ---/ -----
47
CLN ---- ---/ -----
UL620 26NM
DIDGO ---- ---/ -----
TMPY TMPY
{ERASE INSERT*
£$
