MULTIPHASE
F-PLN pages 3
2.1. Overview
General
When F-PLN key is pressed, display is:
− ACTIVE F-PLN page A,
− Line 1: FROM WPT data (green),
− Line 2: TO WPT data (white),
− Line 6: DEST airport (white).

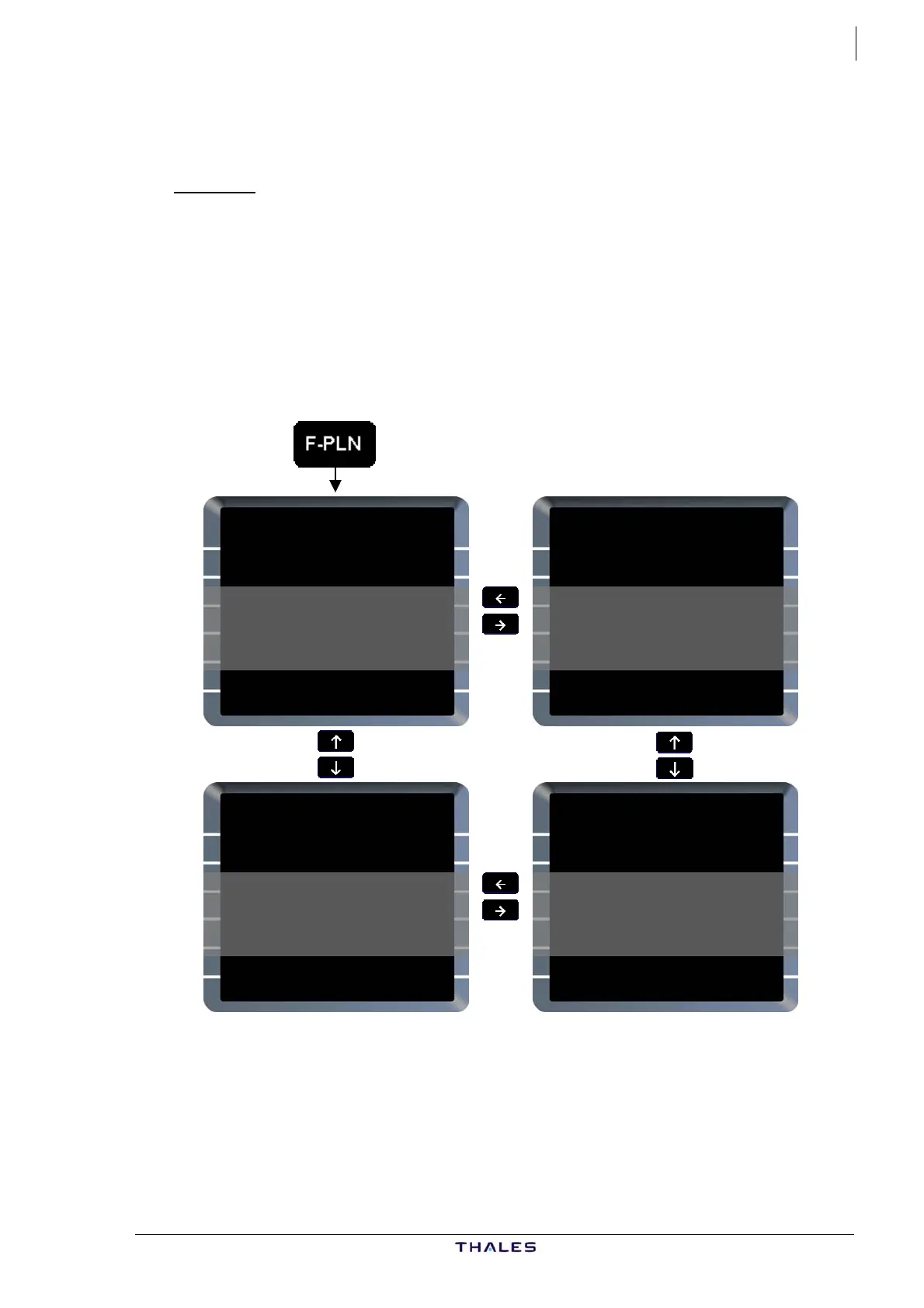

Horizontal slew keys enable to switch to F-PLN page B with the
same state of waypoint display.
Vertical slew keys (↓↑) enable to scroll the F-PLN pages A & B along
the ACTIVE F-PLN, any time DEST remains displayed on line 6.
Purpose of F-PLN page A is to display flight plan and time, speed,
altitude, FPA, distance, bearing, and track waypoint-by-waypoint
throughout the flight plan (except on non-active missed approach and
alternate flight plan).
Purpose of F-PLN page B is to display the flight plan with wind, distance
and estimated fuel on board. For alternate flight plan and non-active
missed approach, no EFOB is available, winds and F-PLN distances are
displayed.
FROM THV001 {}
EFOB T WIND
ADABI 5.8 300°/040
UN874 BRG015° 28NM
BOKNO 5.6 300°/040
UN874 TRK007° 27
DEVRO 5.5 310°/050
UN874 22
VANAD 5.4 " °/ "
UN874 45NM
VADOM 5.1 " °/ "
DEST UTC DIST EFOB
EGLL27R 1625 339 4.3
£$
FROM THV001 {}
UTC SPD/ALT
ADABI 1532 / FL360
UN874 BRG015° 30
BOKNO 1536 " / "
UN874 TRK007° 27
DEVRO 1540 " / "
UN874 22
VANAD 1543 " / "
UN874 45NM
VADOM 1549 " / "
DEST UTC DIST EFOB
EGLL27R 1625 339 4.3
£$
F-PLN B
F-PLN A
THV001 {}
UT191 UTC SPD/ALT
PODEM 1555 .79/ FL360
UT191 52
ABUDA 1602 " / "
TRK330° 10
(T/D) 1604 .79/ FL360
UT426 17
DIMAL 1606 " / FL308
7NM
ALESO 1607 293/ FL286
DEST UTC DIST EFOB
EGLL27R 1625 339 4.3
£$
THV001 {}
UT191 EFOB T WIND
PODEM 4.9 320°/060
UT191 52
ABUDA 4.6 " °/ "
TRK330° 10
(T/D) 4.6 320°/040
UT426 17
DIMAL 4.5 " °/ "
7NM
ALESO " 317°/038
DEST UTC DIST EFOB
EGLL27R 1625 339 4.3
£$
