If correct:
DIR TO INSERT [6R]...... Press
F-PLN page is displayed
ACTIVE WPT .................Check
DIR TO track is now the ACTIVE leg
(solid green) of F-PLN, starting at the
Turning Point (T-P).
If not correct:
DIR TO ERASE [6L]........ Press
Make appropriate revision.

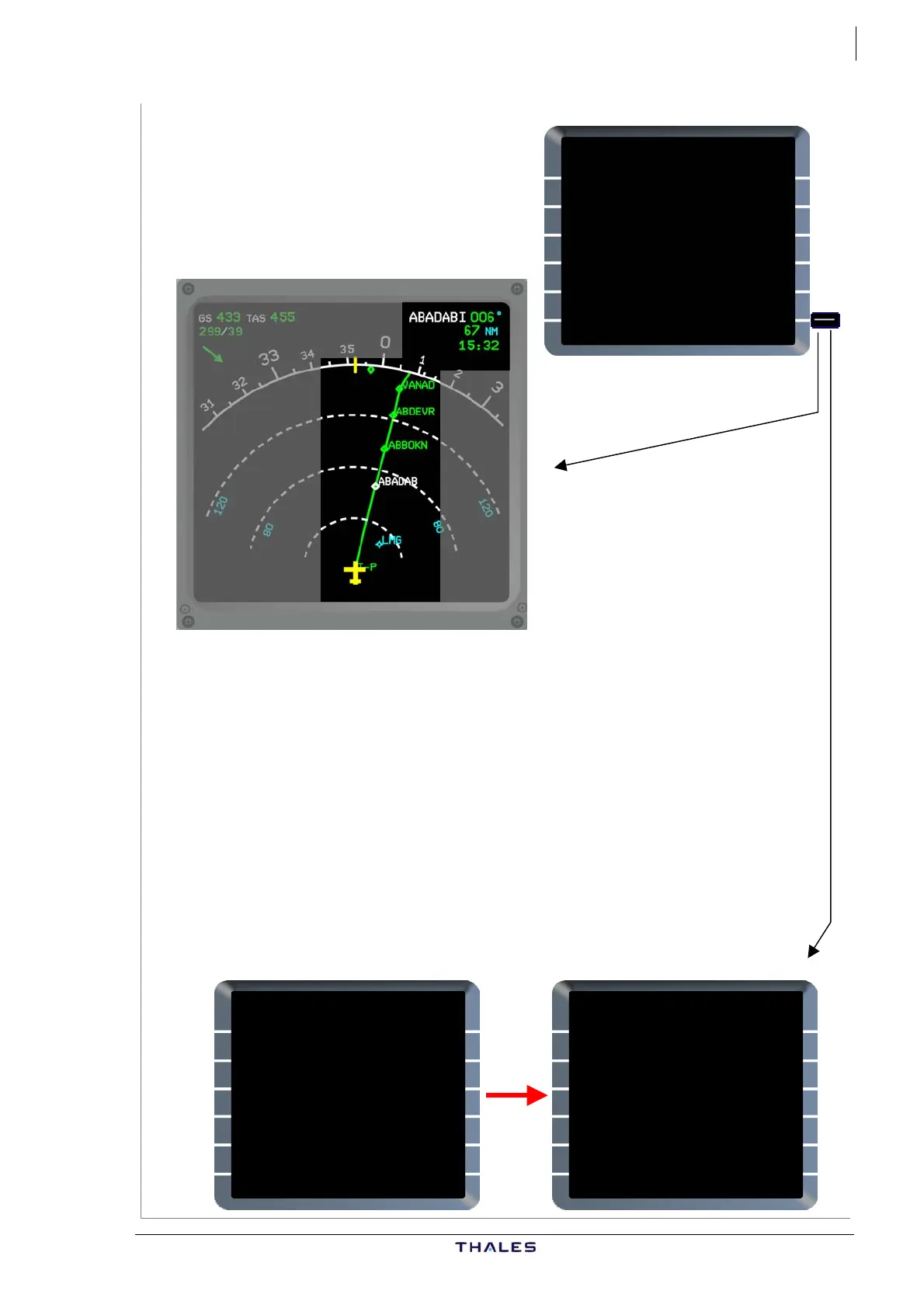

F-PLN page:
If selected on opposite side, title is
TMPY with DIR TO leg from T-P to
selected WPT.
When DIR TO is inserted, ABEAM PTS
become WPTs of the ACTIVE F-PLN.
Abeam WPTs are named ABxxxxx,
xxxxx representing the first five
characters of the relative WPTs.
Ex: ABADABI, ABBOKNO, ABDEVRO
DIR TO
WAYPOINT UTC DIST
VADOM 1543 145
F-PLN WPTS
{BOKNO DIRECT TO }
WITH
{DEVRO ABEAM PTS
RADIAL IN
VANAD 200° }
RADIAL OUT
{VADOM [ ]°
DIR TO DIR TO
{ERASE INSERT*
£$
FROM TMPY THV001 {}
UTC SPD/ALT
T-P 1523 / FL360
BRG006° 67
(ABEAM PTS)
VANAD 1543 " / "
UN874 45
VADOM 1553 " / "
UN874 27NM
BAMES 1555 " / "
DIR TO DIR TO
{ERASE INSERT*
£$
FROM THV001 {}
UTC SPD/ALT
T-P 1523 / FL360
BRG006° 67
ABADABI 1545 .79/ FL360
TRK007° 30
ABBOKNO 1549 " / "
UN874 27
ABDEVRO 1553 " / "
UN874 21NM
VANAD 1557 " / "
DEST UTC DIST EFOB
EGLL27R 1625 478 4.3
£$
